Test Reading Charts

Control Module Connections:

TEST READINGS, CONTROL MODULE CONNECTIONS

Scope
Test readings and instructions for measuring signals and signal levels on the MOTRONIC control module are given in the following charts.

NOTE: Symbols in the following charts, > = greater than; < = less than; ~/~ = approximately equal to; ~ = alternating current.

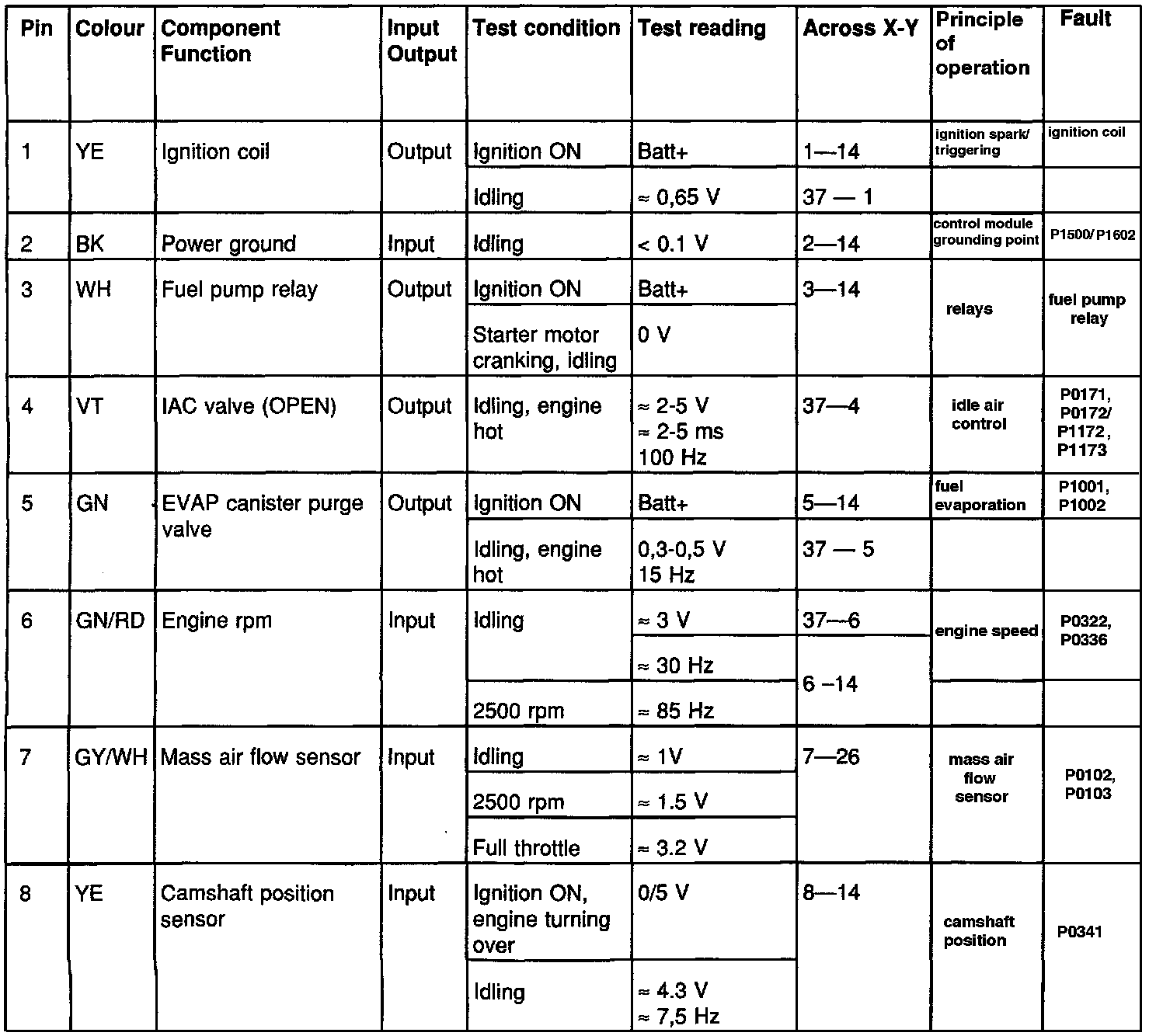

Chart 1 of 4, Pins 1-8

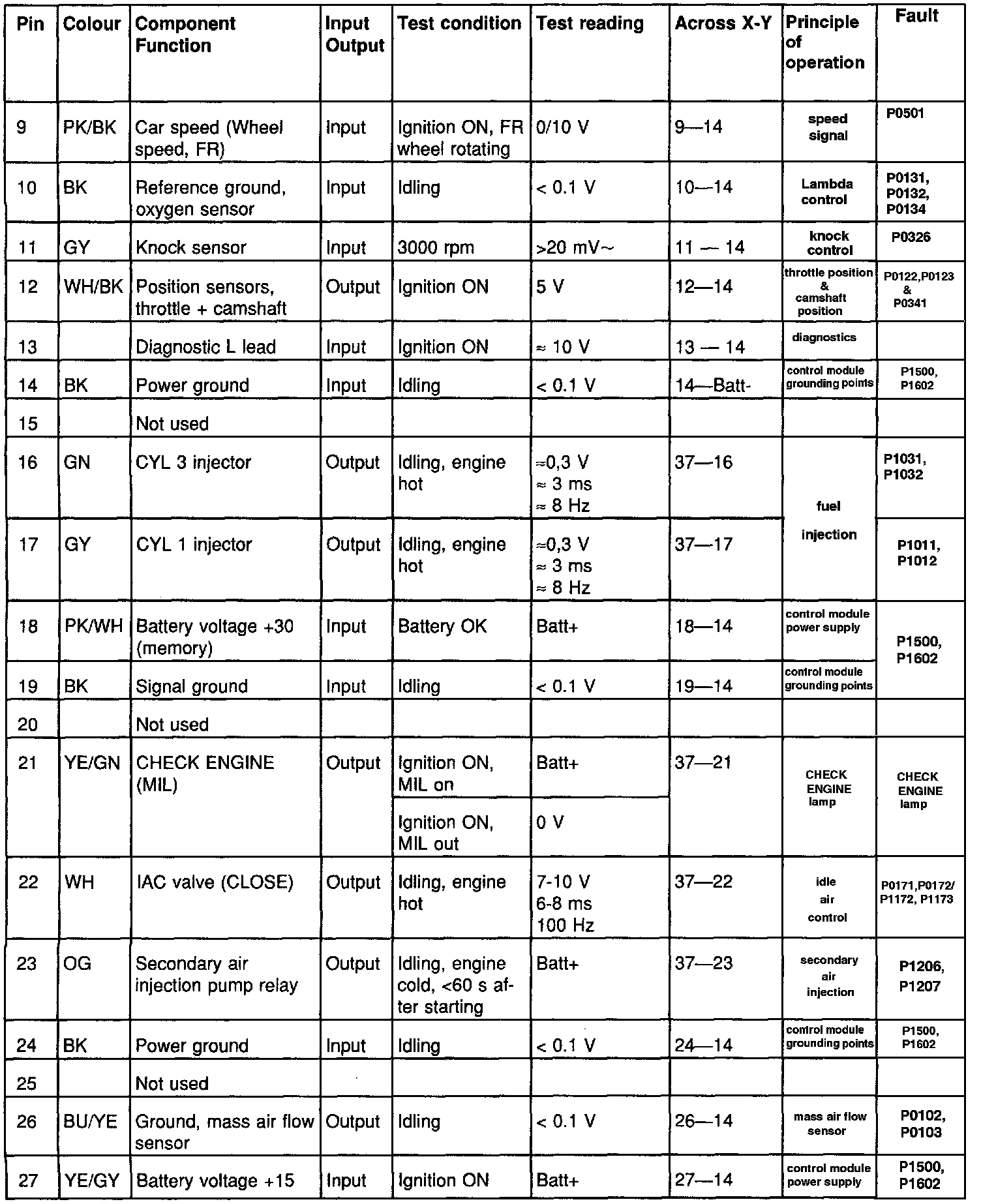

Chart 2 of 4, Pins 9-27

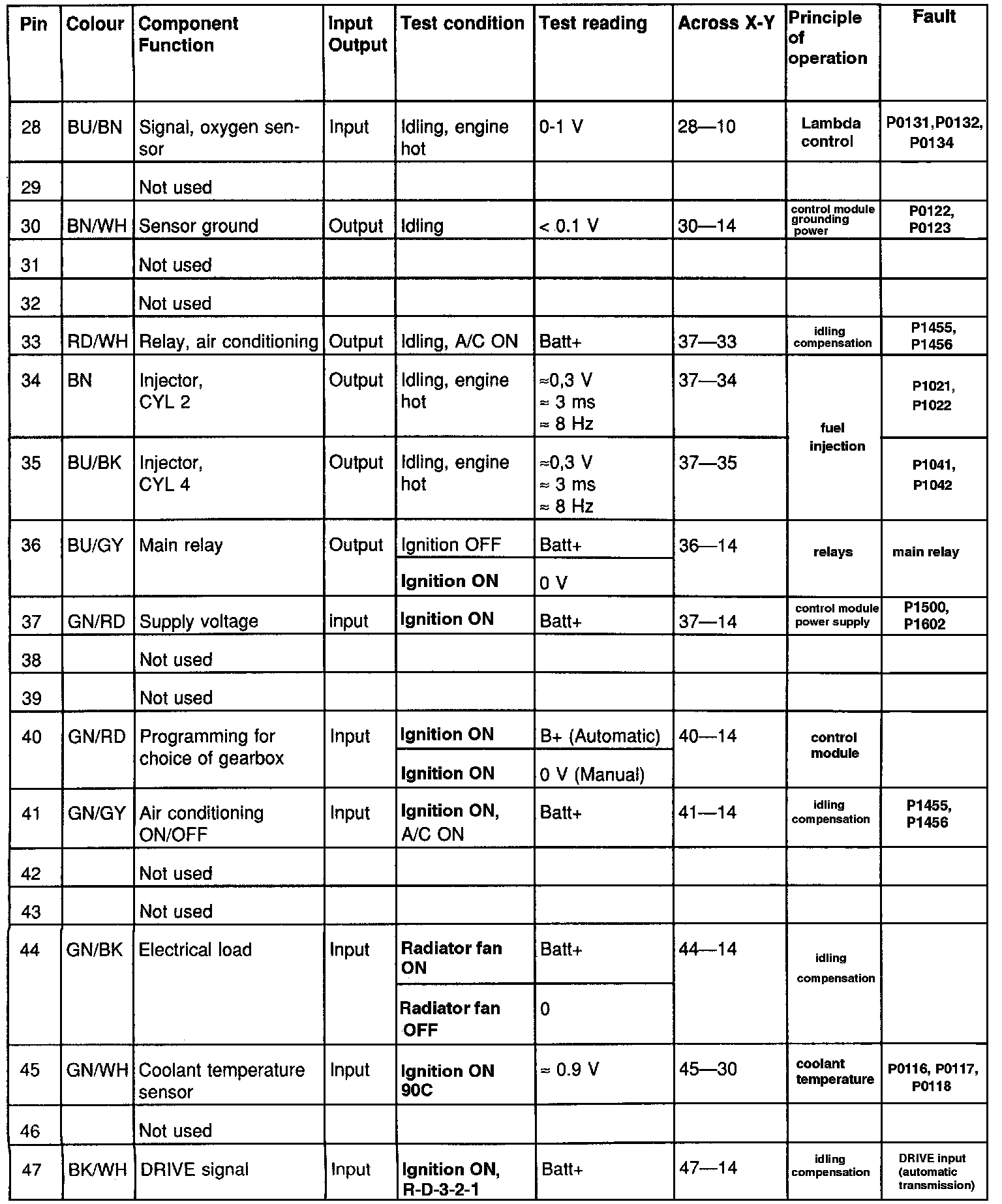

Chart 3 of 4, Pins 28-47

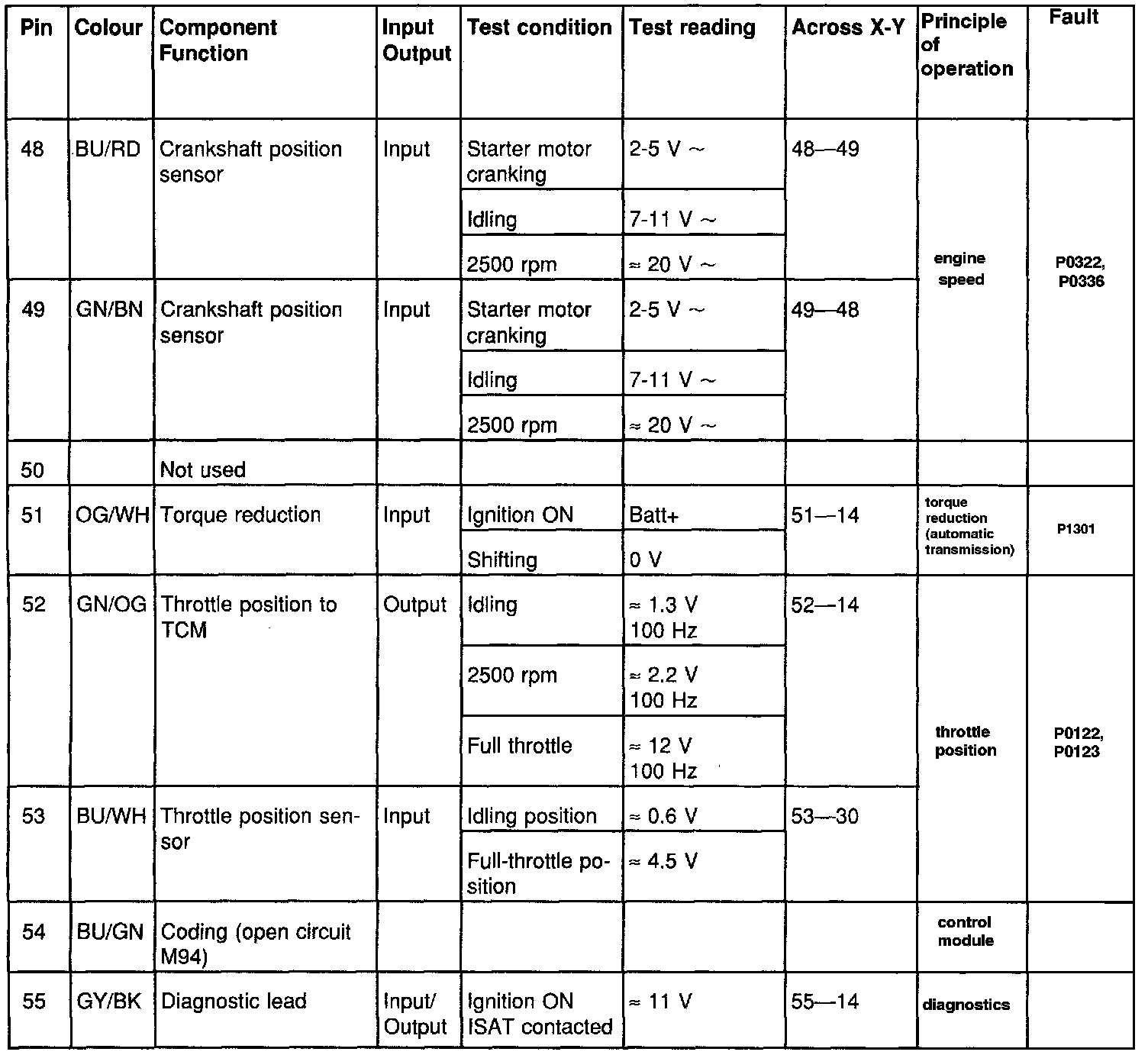

Chart 4 of 4, Pins 48-55
