Air Flow Meter/Sensor: Service and Repair

Mass Air Flow Sensor:

1. Loosen hose clip attaching boot to air mass meter assembly.
2. Disconnect electrical connector, then release the two toggle clips from air cleaner housing cover.

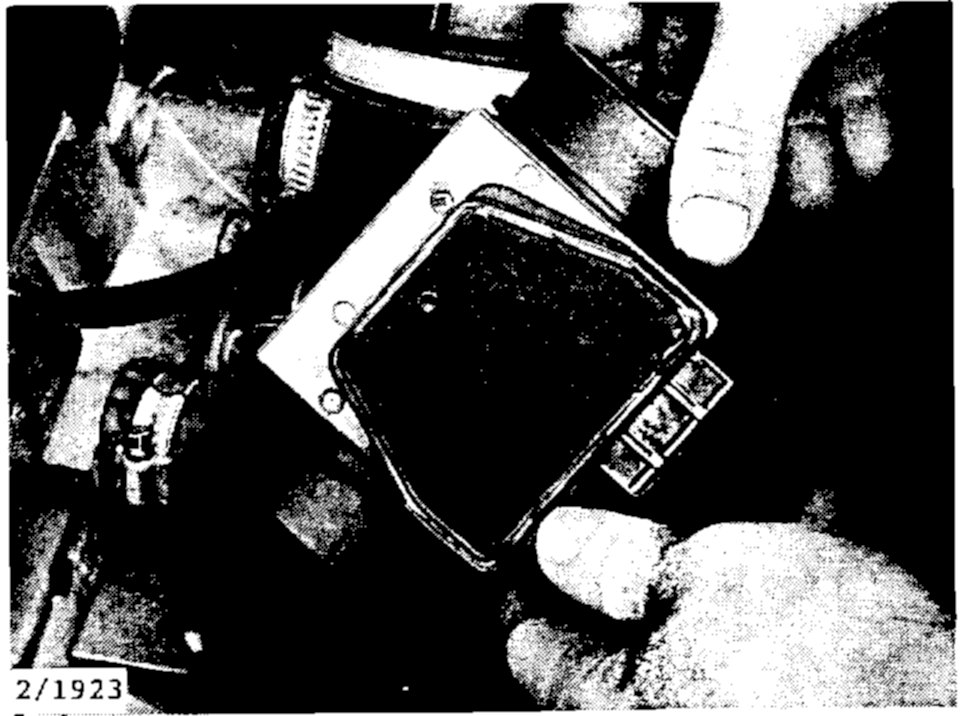

3. Carefully lift air mass meter from air cleaner housing cover and protective boot.
4. Reverse procedure to install.
