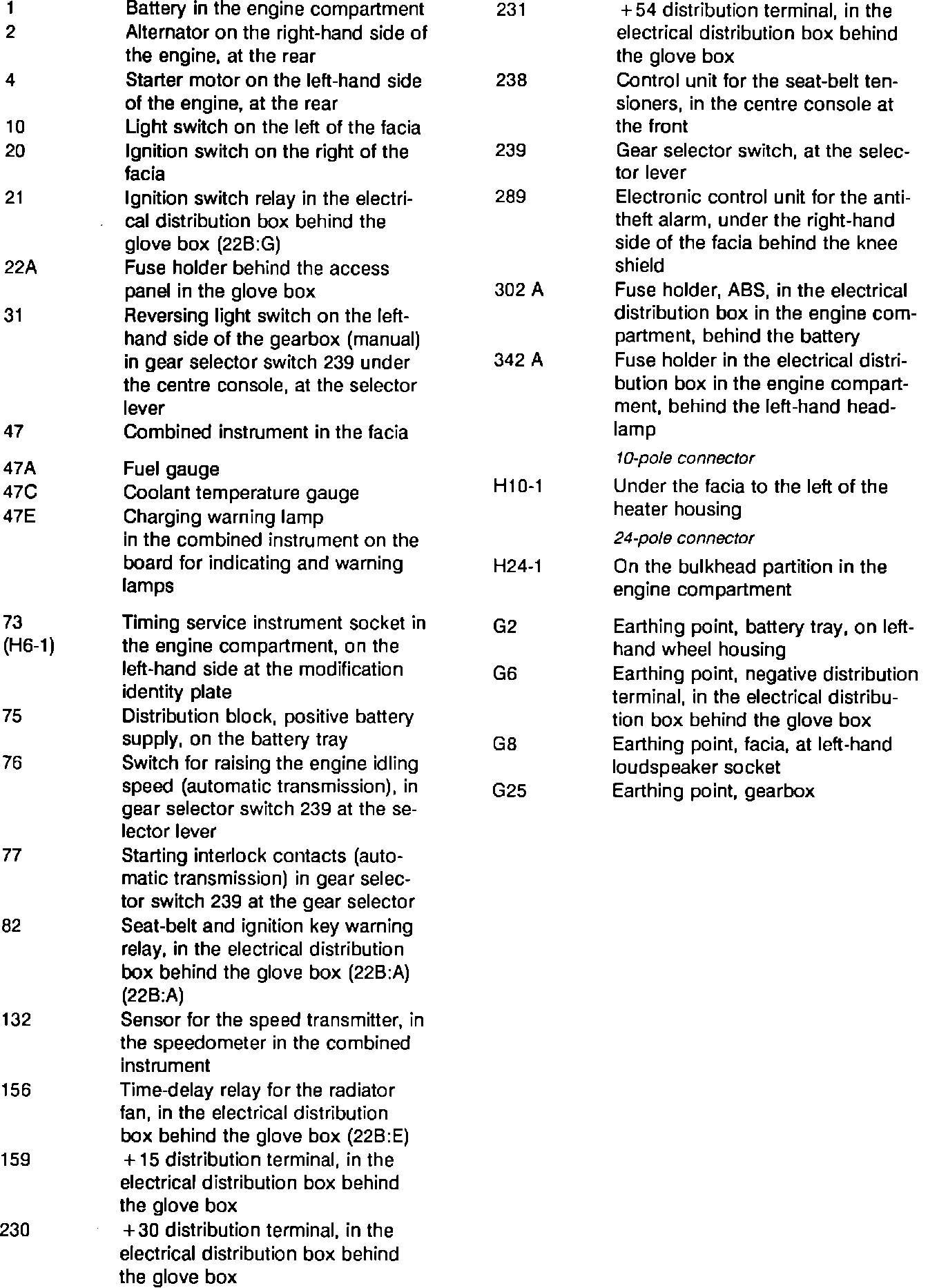

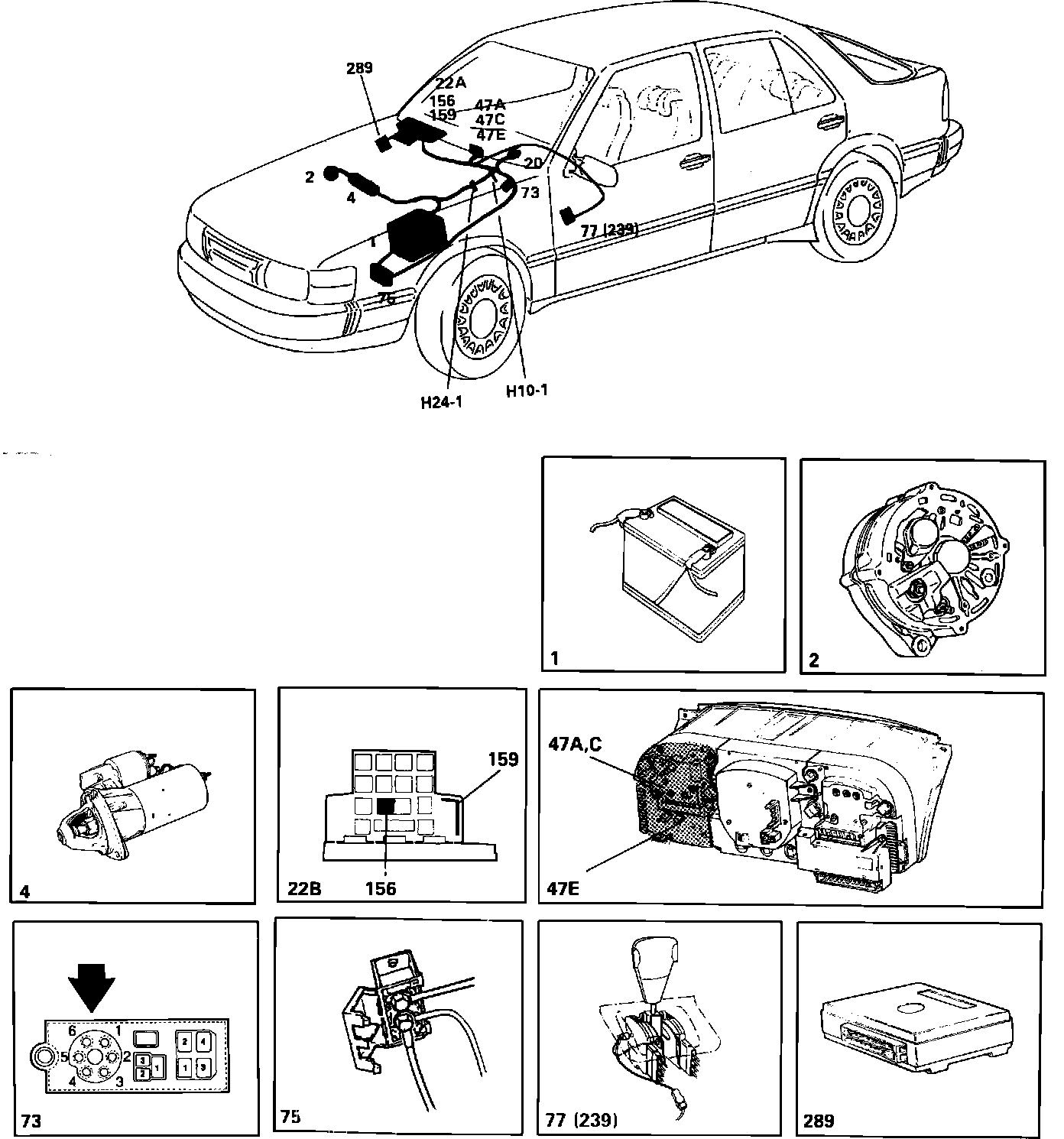

A-9 Component, Connector and Ground Locations
>>
Components
>>
Starting System
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Starting System
Starting And Charging Systems:
Starting And Charging Systems:
