Anti-Lock Brake System/Traction Control System Control Unit

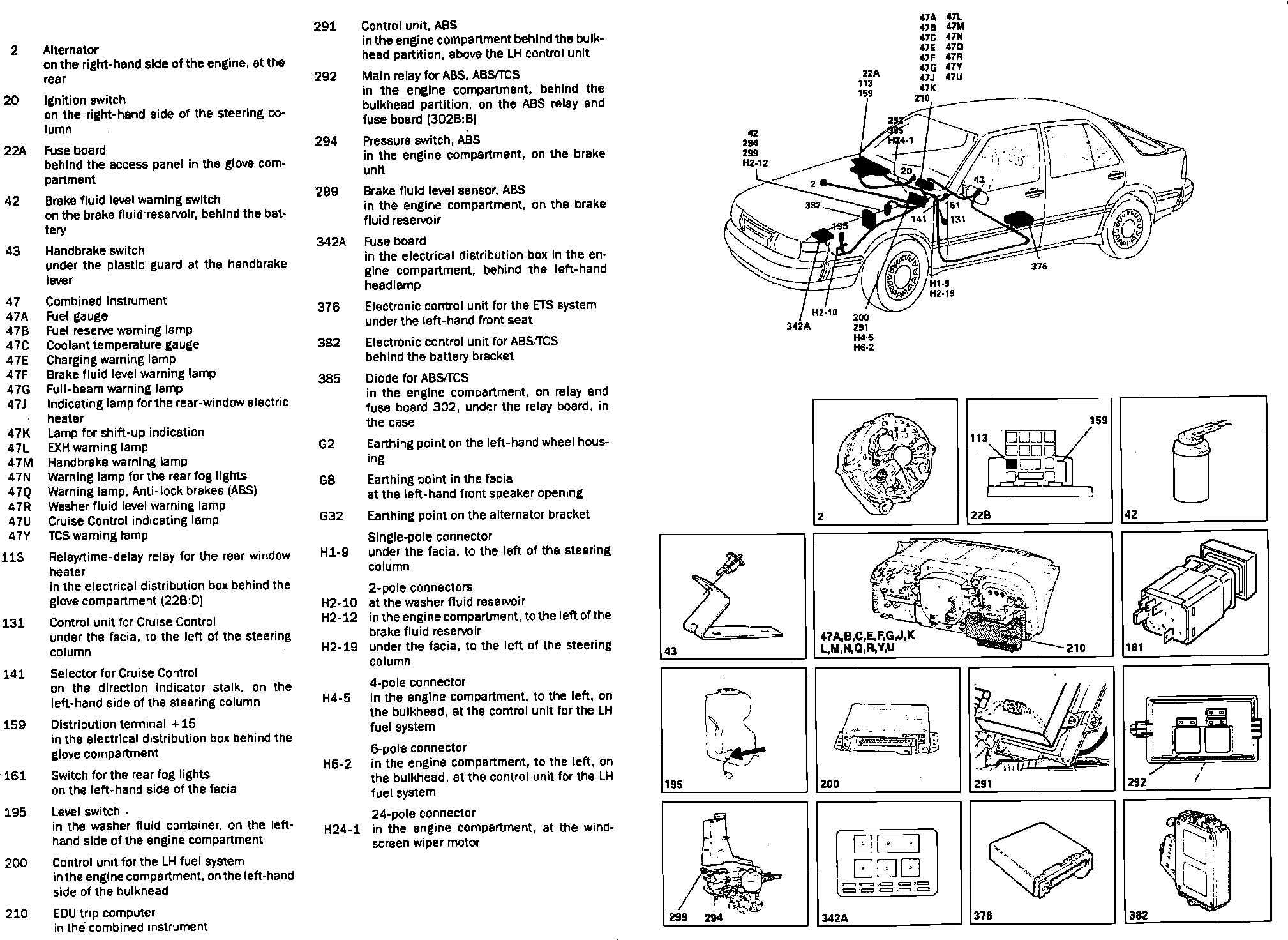

Cruise control system component locations.:




Behind Battery Bracket

Applicable to: With ETS

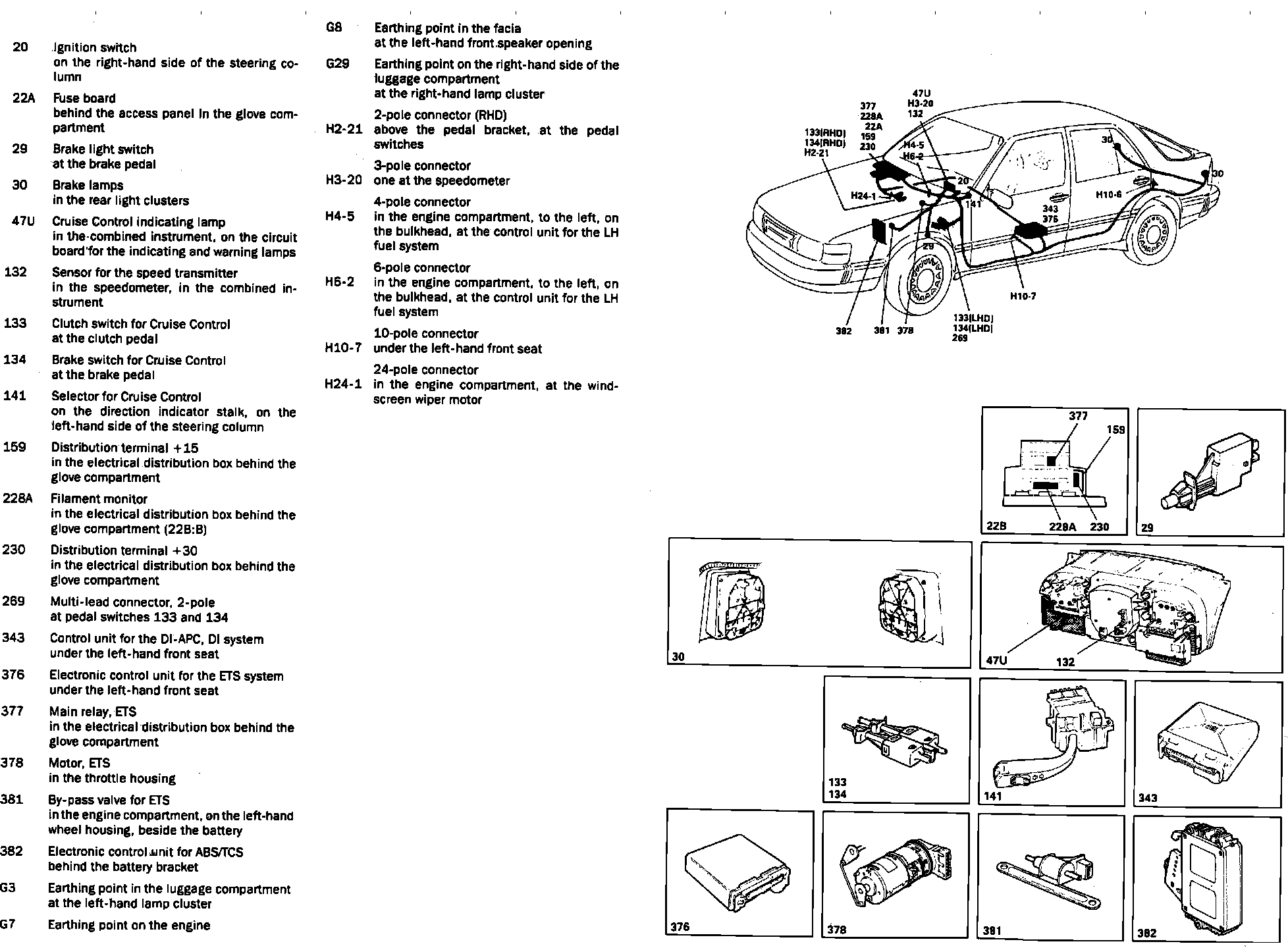

Electronic Throttle Control (ETS) system component locations:

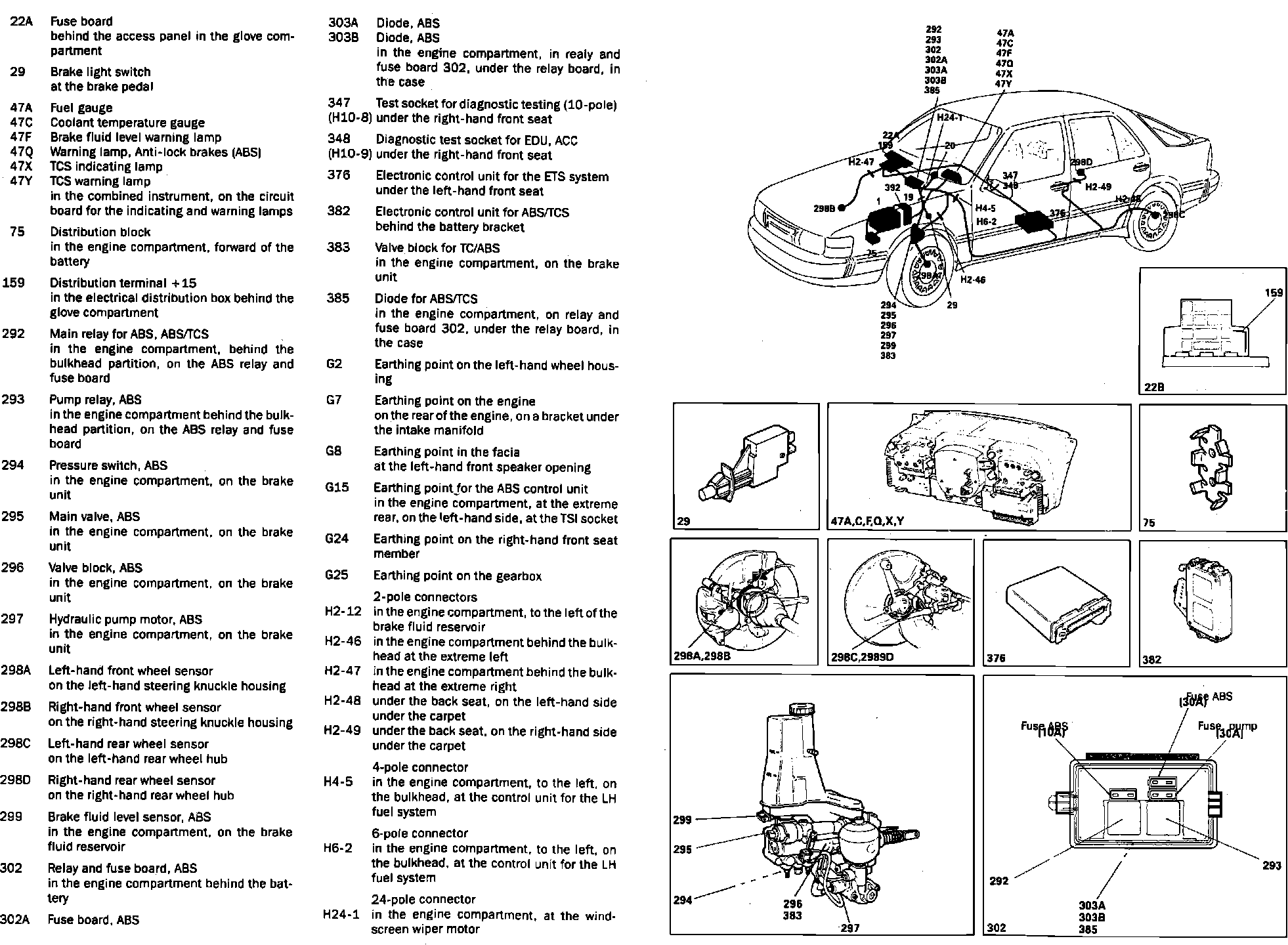

Traction control/Anti-Lock Brake System system component locations:




Indicating & warning system component locations:




Behind Battery Bracket
