Vehicle Speed Sensor: Locations

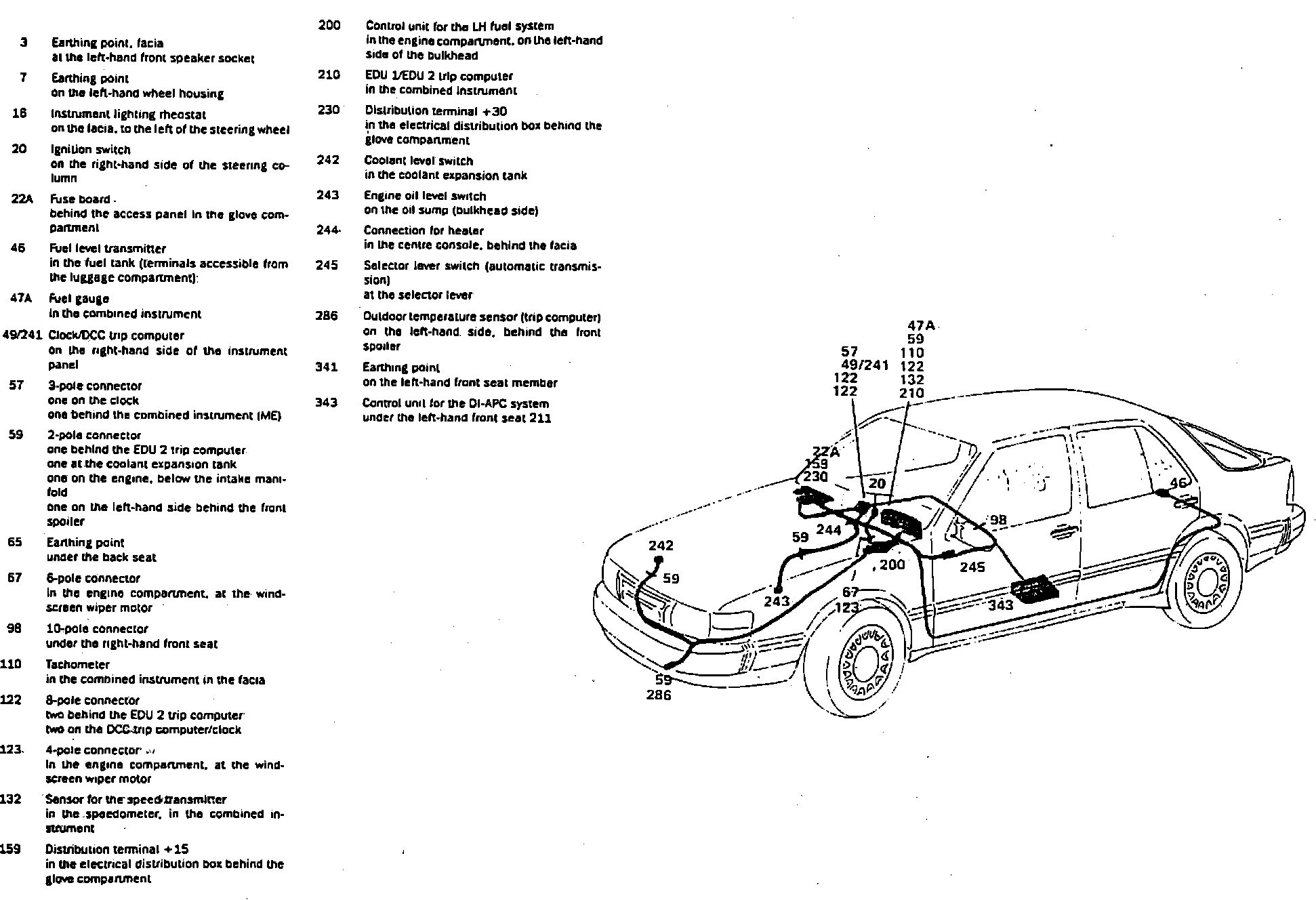

EDU II Trip Computer System Components:




Behind I/P Cluster, In Speedometer

Applicable to: 1989 Models

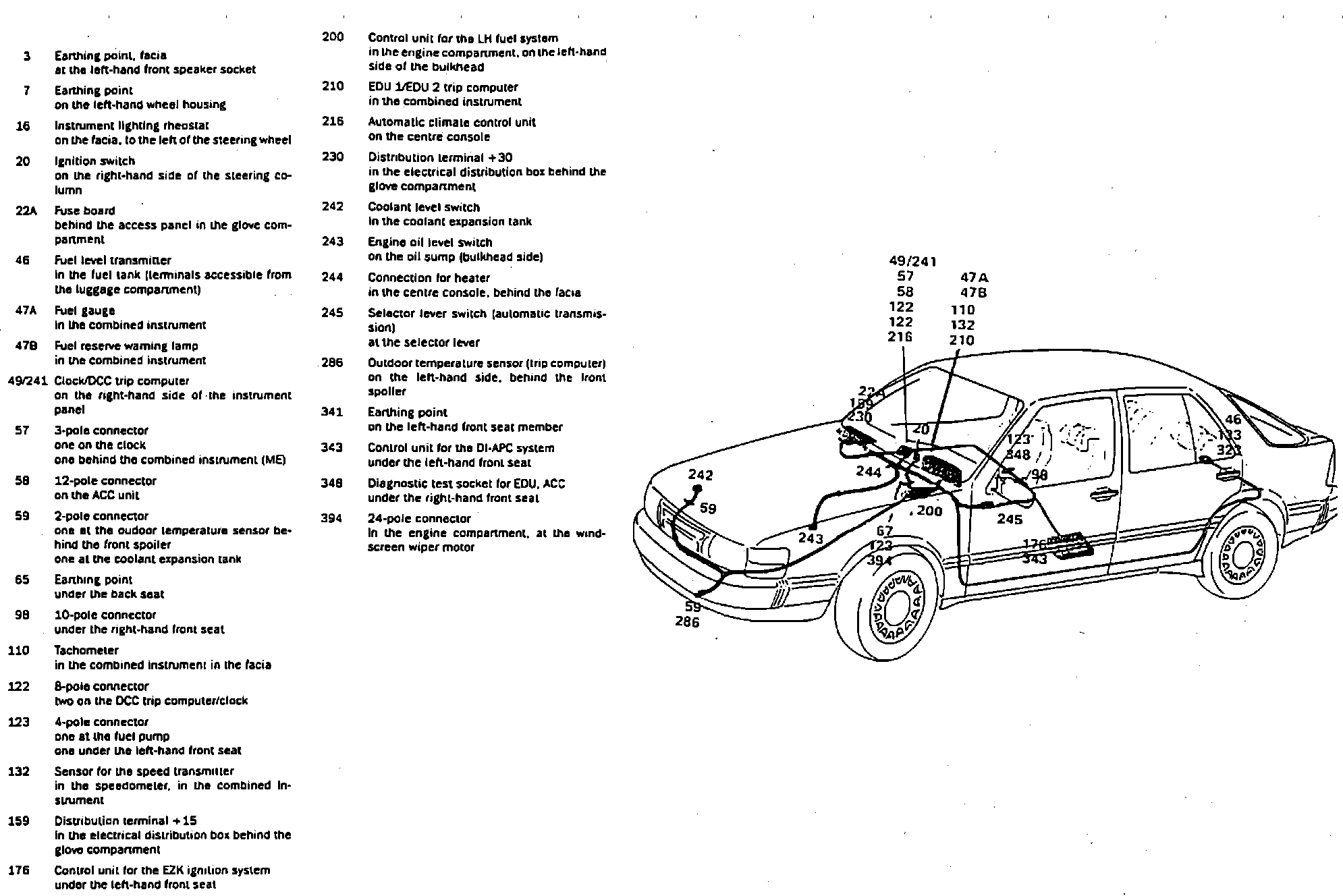

EDU I/EDU II Trip Computer System Components:




Behind I/P Cluster, In Speedometer

Applicable to: 1990 Models

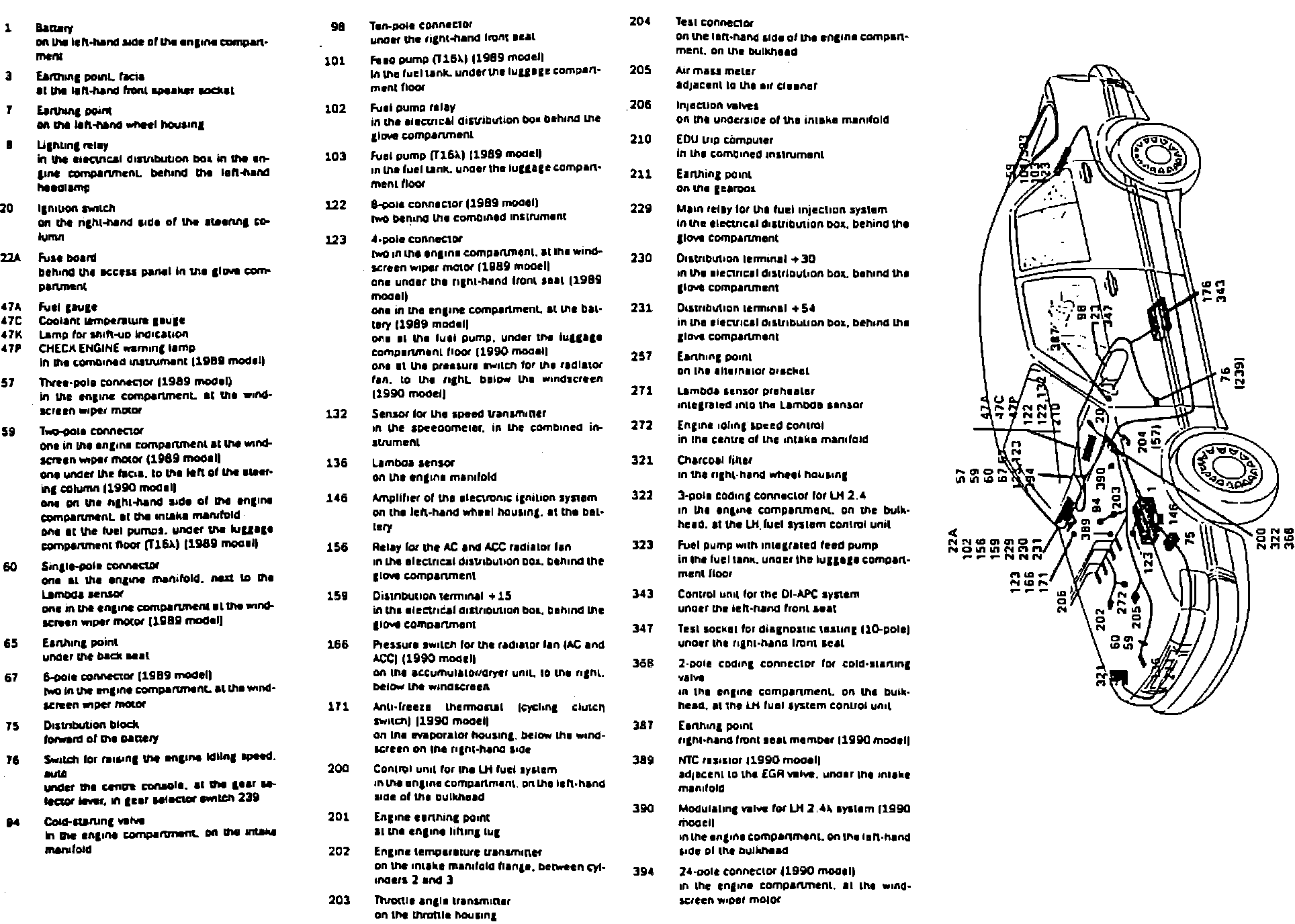

LH 2:




Behind I/P Cluster, In Speedometer

Applicable to: 4 Fuel System Components

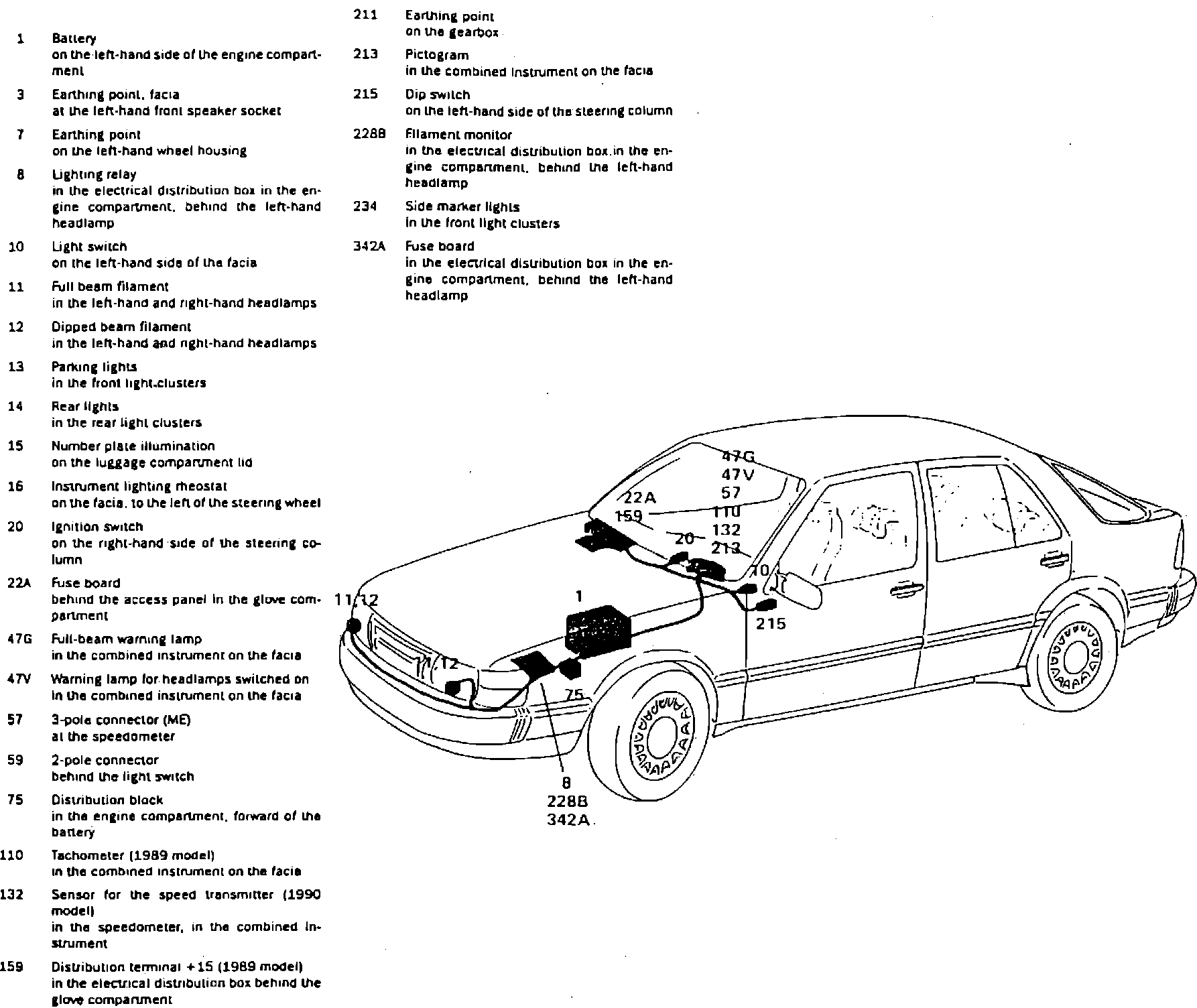

Headlamp System Components:

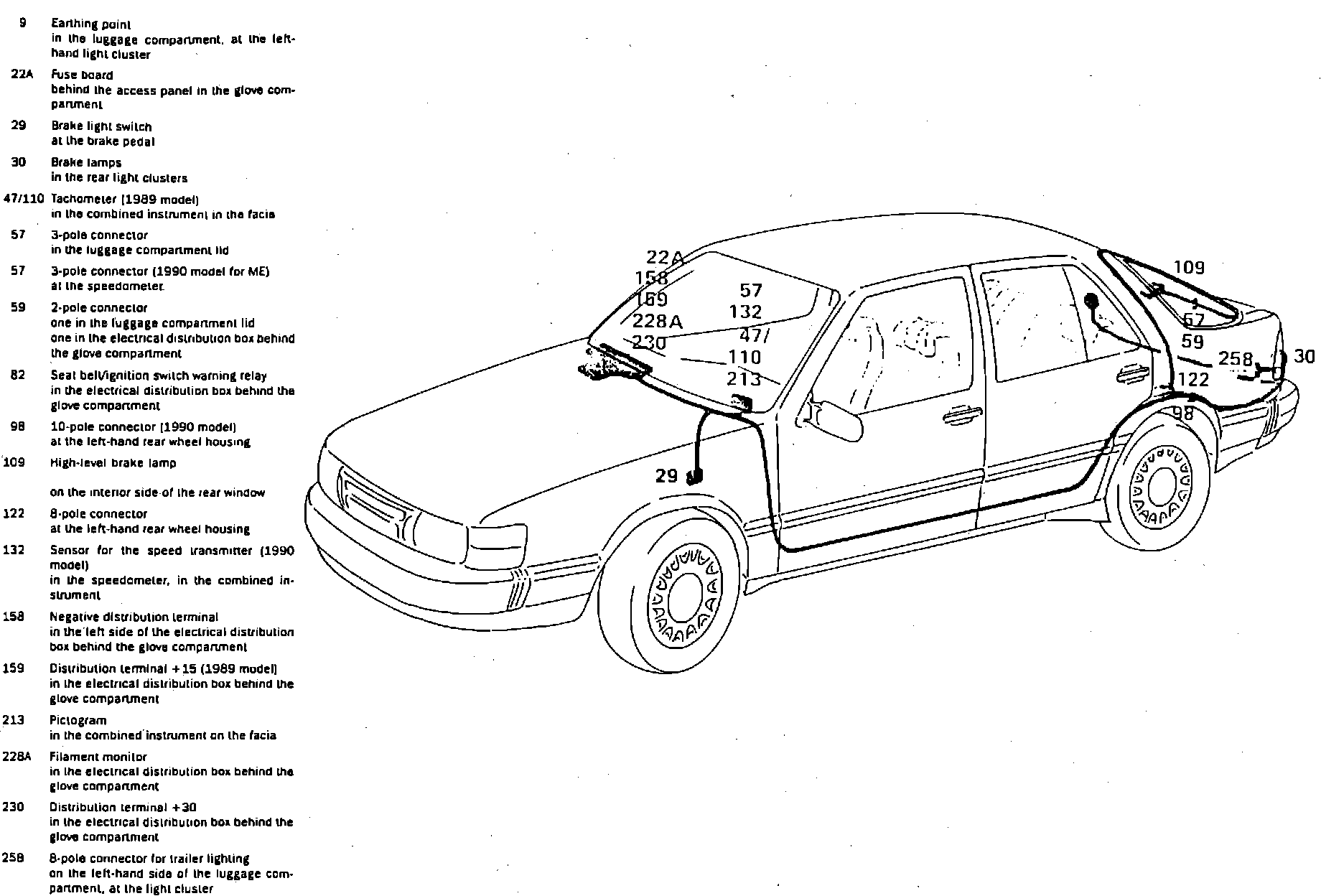

Brake Light System Components:

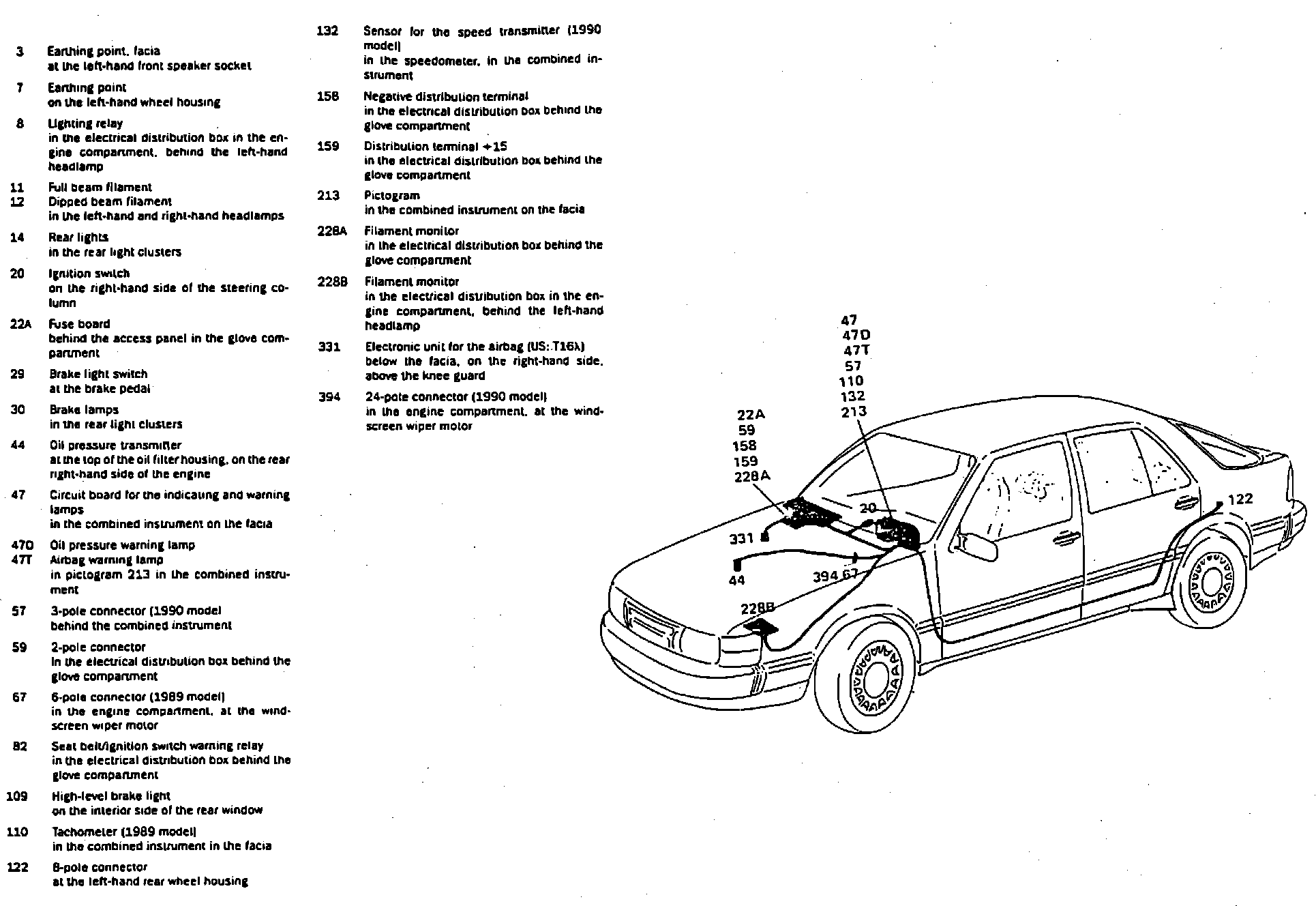

Electronic Speedometer System Components:




Pictogram System Components:




Cruise Control System Components:




Behind I/P Cluster, In Speedometer
