Control Module Outputs

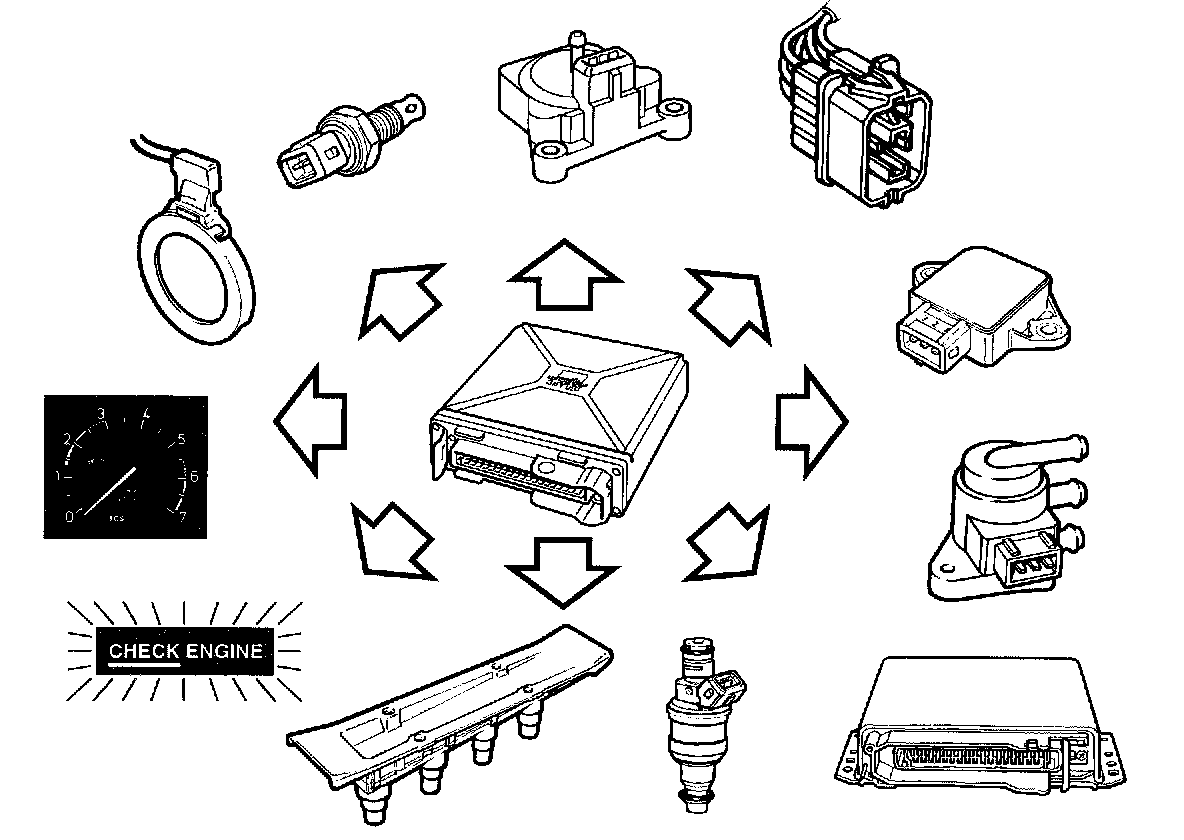

Control Module Outputs





1 Ground, sensor ground
2 Ignition trigger pulses
3 Boost pressure control valve
4 Fuel enrichment
5 CHECK ENGINE lamp (MIL)
6 Engine speed
7 Diagnostics communication
