Electrical Distribution Box For ABS/TCS

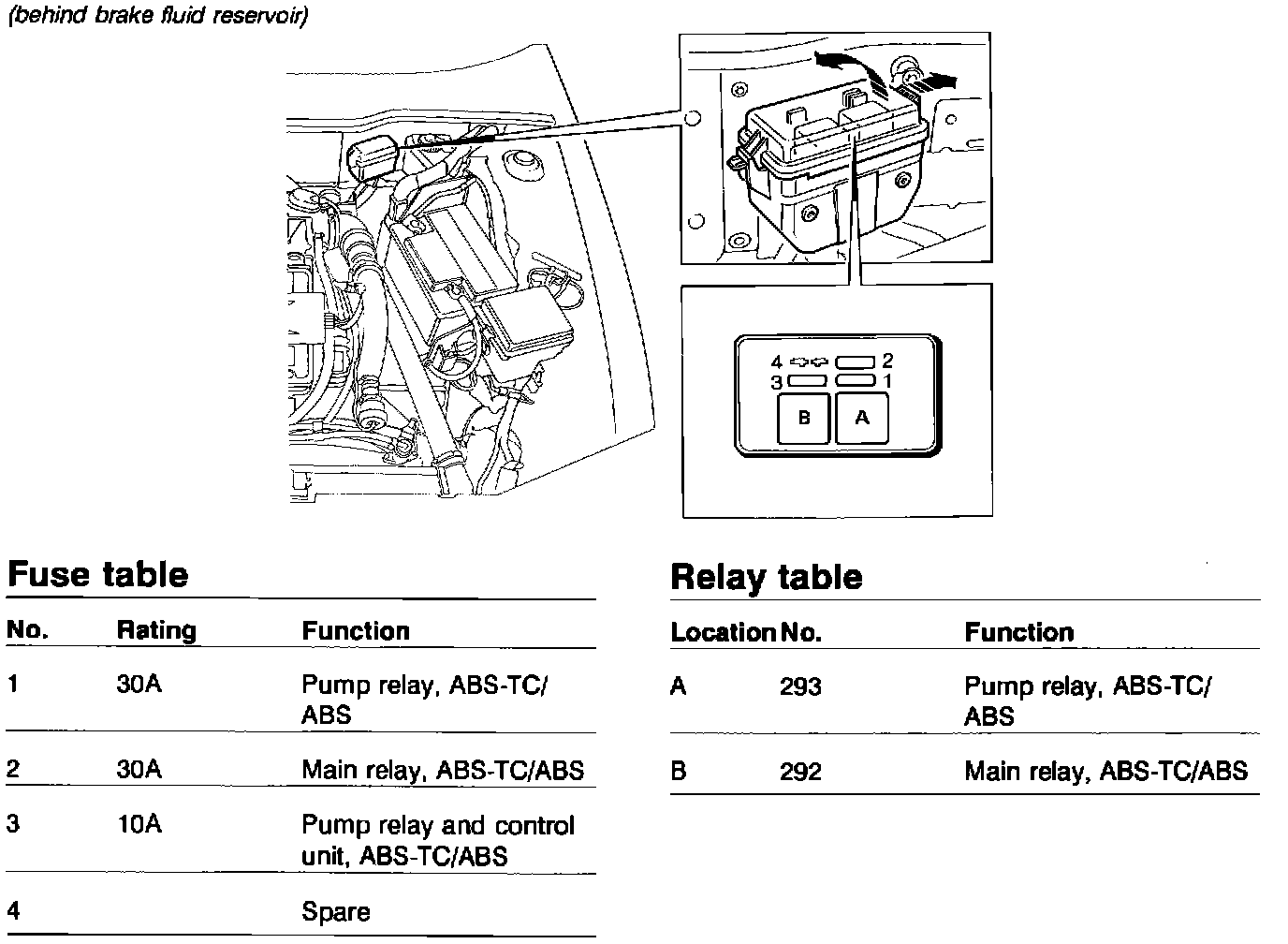

Fuse/Relay Location and Identification

Electrical Distribution Box, ABS/TCS
(behind brake fluid reservoir)

Electrical Distribution Box (ABS/TCS):
