Solar Sensor, Removal

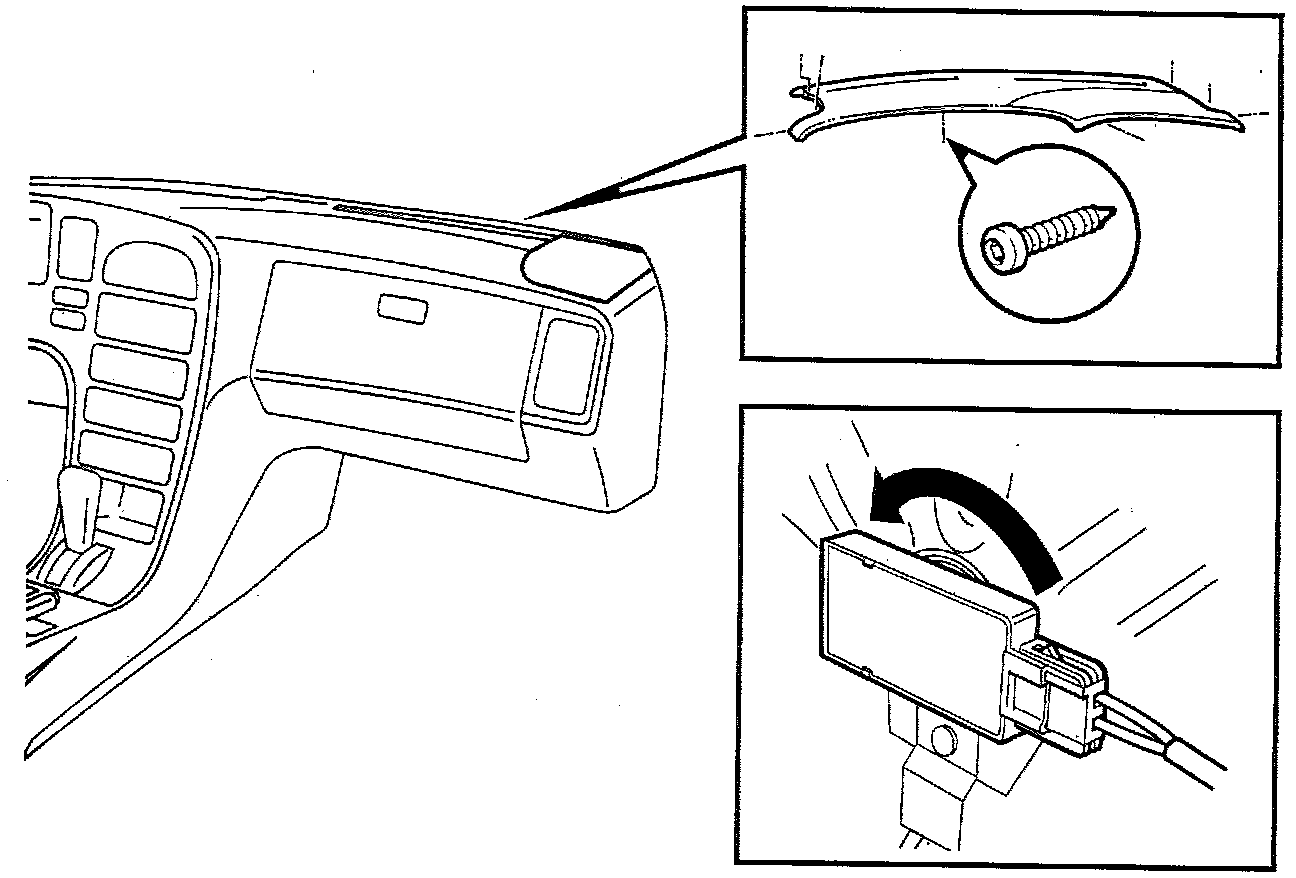

1. Remove the A pillar trims.
2. Remove the speaker grilles and the screws securing the upper section of the facia.
3. Unhook the upper part of the facia from the cable between the A pillars.
4. Unplug the solar sensor connector and lift-off the upper part of the facia.
5. Remove the solar sensor by pushing it against the facia and turning it counter clockwise, seen from the underside of the facia.
