Cruise Control Module: Locations

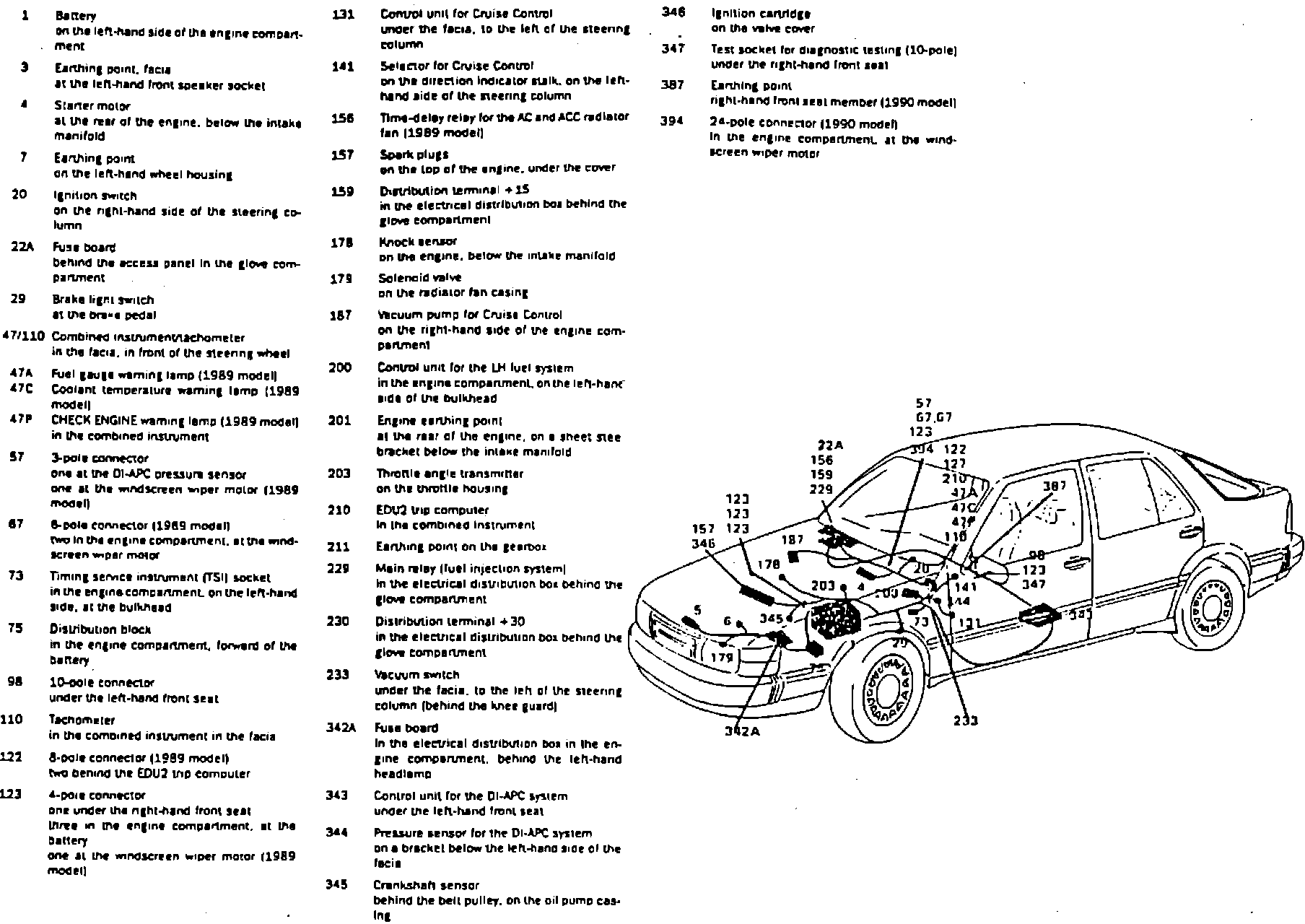

Ignition & APC System Components:

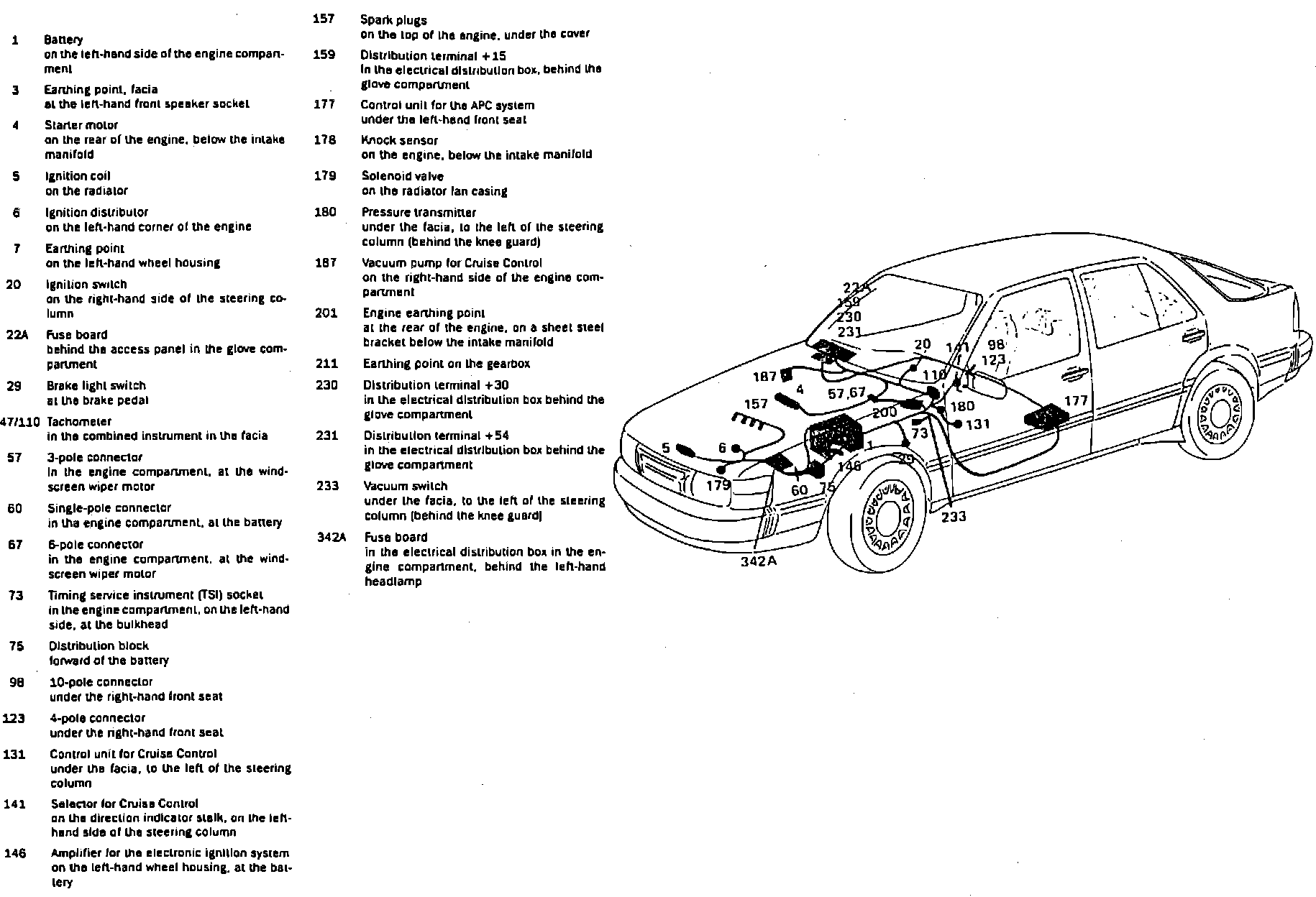

DI Ignition System Components:




Indicator & Warning Lamp System Components:

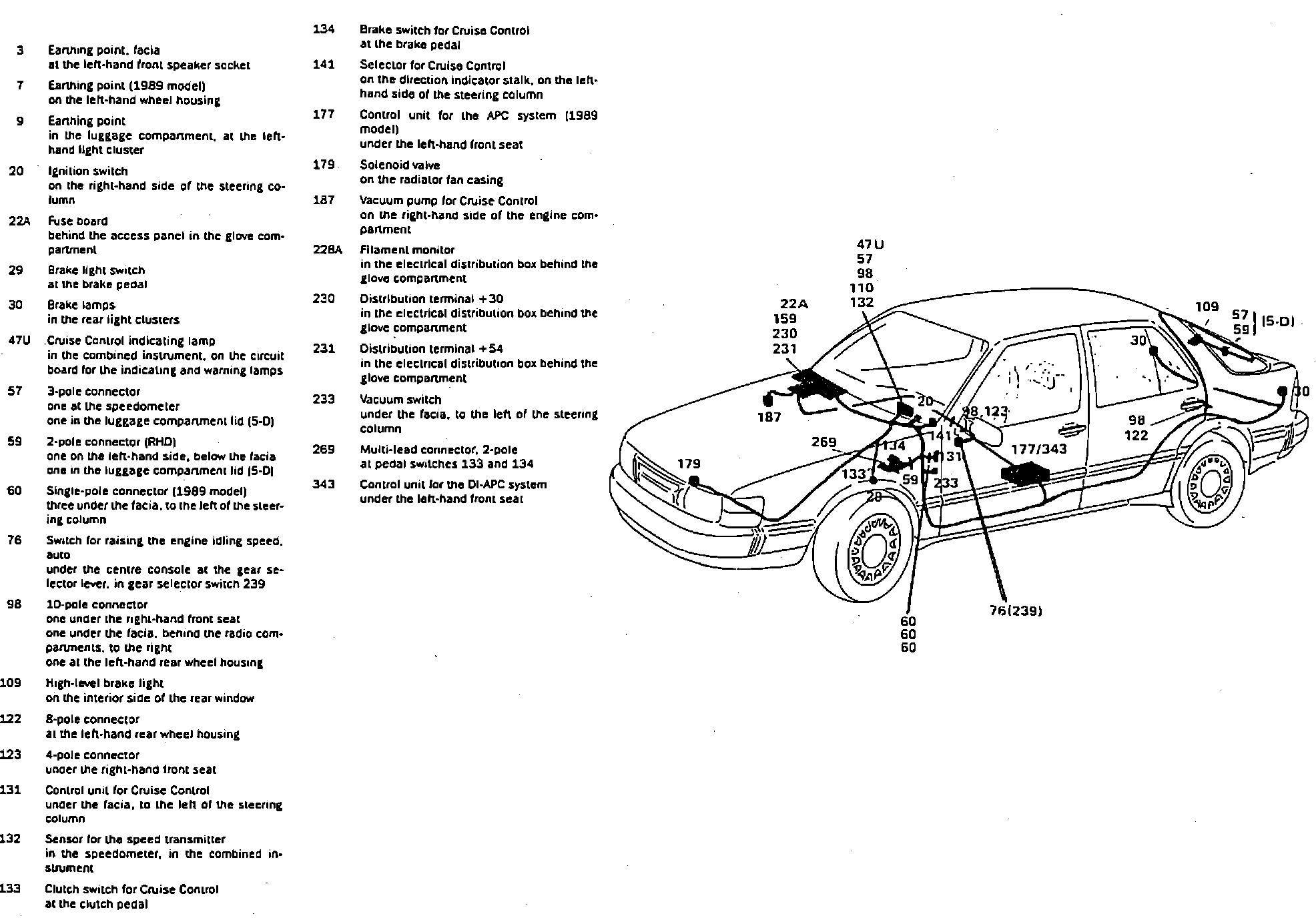

Cruise Control System Components:




Behind LH Side Of I/P
