Electrical Distribution Box In the Engine Compartment

Fuse/Relay Location and Identification

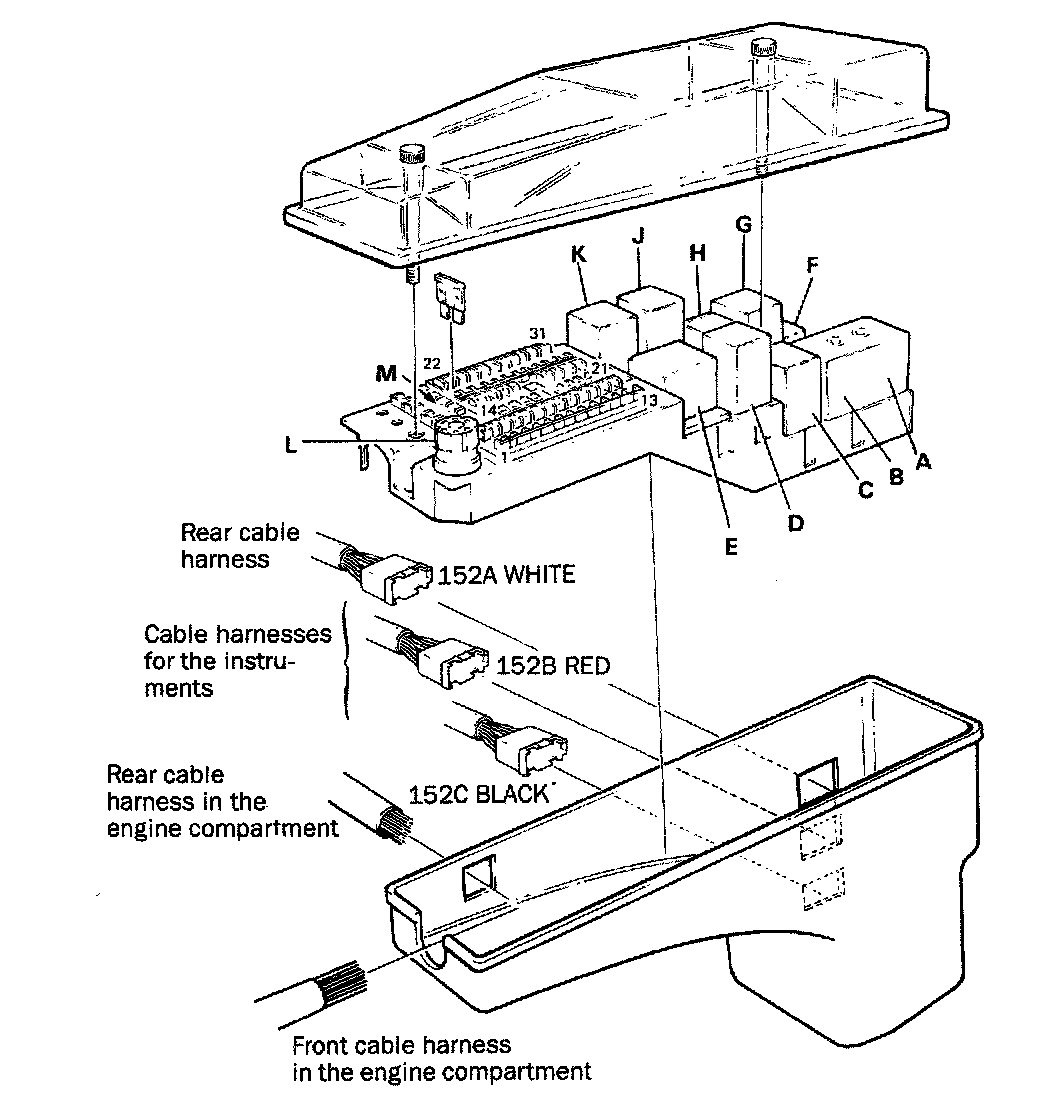

Electrical Distribution Box in the Engine Compartment

Distribution Panel:

Left-hand wheel housing in the engine compartment.

Fuses

Fuse Rating Function
1 Spare
2 30 A Rear window regulators, Convertible (1988)
3 30 A Rear window regulators, Convertible (1987)
4 10 A Shift-up indicator (US), dim dipped beam (GB)
5 15 A Brake fluid warning, windscreen wipers, headlamp wipers, seat belt reminder lamp and EXH warning lamp
6 30 A Air conditioner (AC)
7 15 A Direction indicators, tachometer, warning lamps for battery charging and choke
8 10 A Headlamp wipers, rear-view mirrors, Cruise Control
9 30 A Ventilation fan
10 10 A APC system, lighting for controls, glove compartment illumination
11 30 A Window regulators, sunroof
12 20 A Electric heating pads for the front seats, delayed interior lights
13 20 A Reversing lights, cigarette lighter lighting
14 15 A Right-hand headlamp, full beam
15 15 A Left-hand headlamp, full beam and full beam warning lamp
16 15 A Right-hand headlamp, dipped beam
17 15 A Left-hand headlamp, dipped beam
18 10 A Right-hand parking light, right-hand rear light, number plate illumination
19 10 A Left-hand parking light, left-hand rear light
20 15 A Radio
21 15 A Rear fog lights, extra fog lamps (US, CA)
22 10 A Fuel system, ignition system, temperature gauge, handbrake warning lamp
23 Spare
24 10 A Central locking
25 30 A Radiator fan
26 25 A Horn
27 15 A Hazard warning lamps
28 15 A Interior lighting, clock, radio, electrically operated aerial
29 20 A Heater element for the rear window
30 20 A Fuel pump for the fuel injection engine I8, T8, I8 Lambda, T8 Lambda
31 15 A Brake lights
310D 25 A Passive seat belts
310P 25 A Passive seat belts

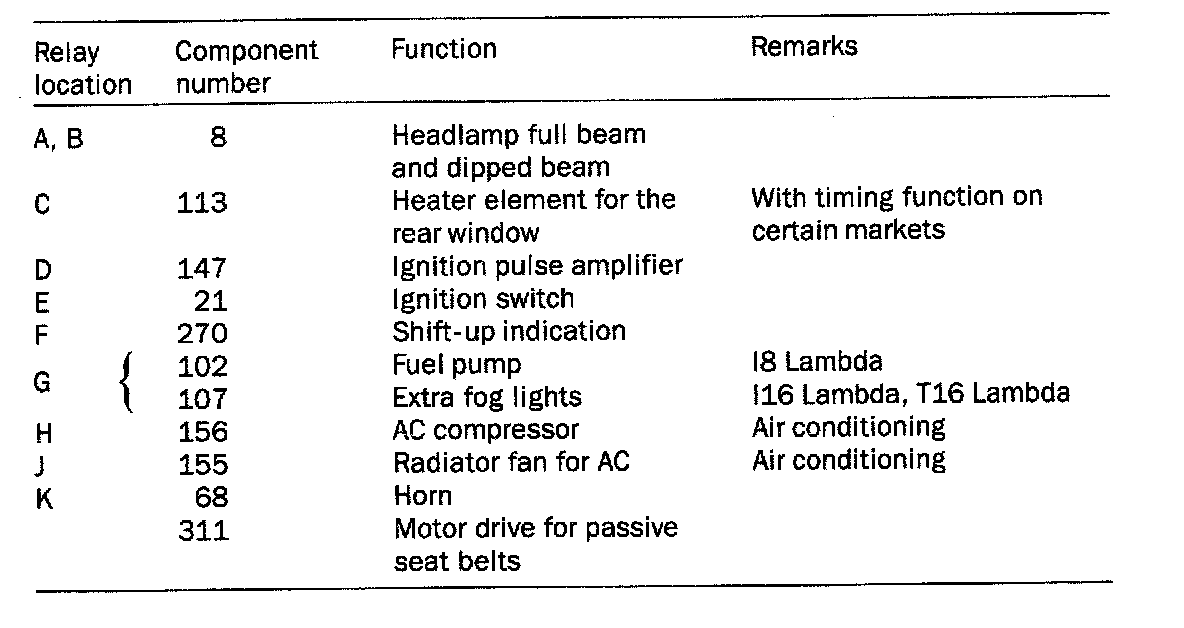

Relays

Relays:
