Fuel Injection System - Turbo: Wiring Diagram

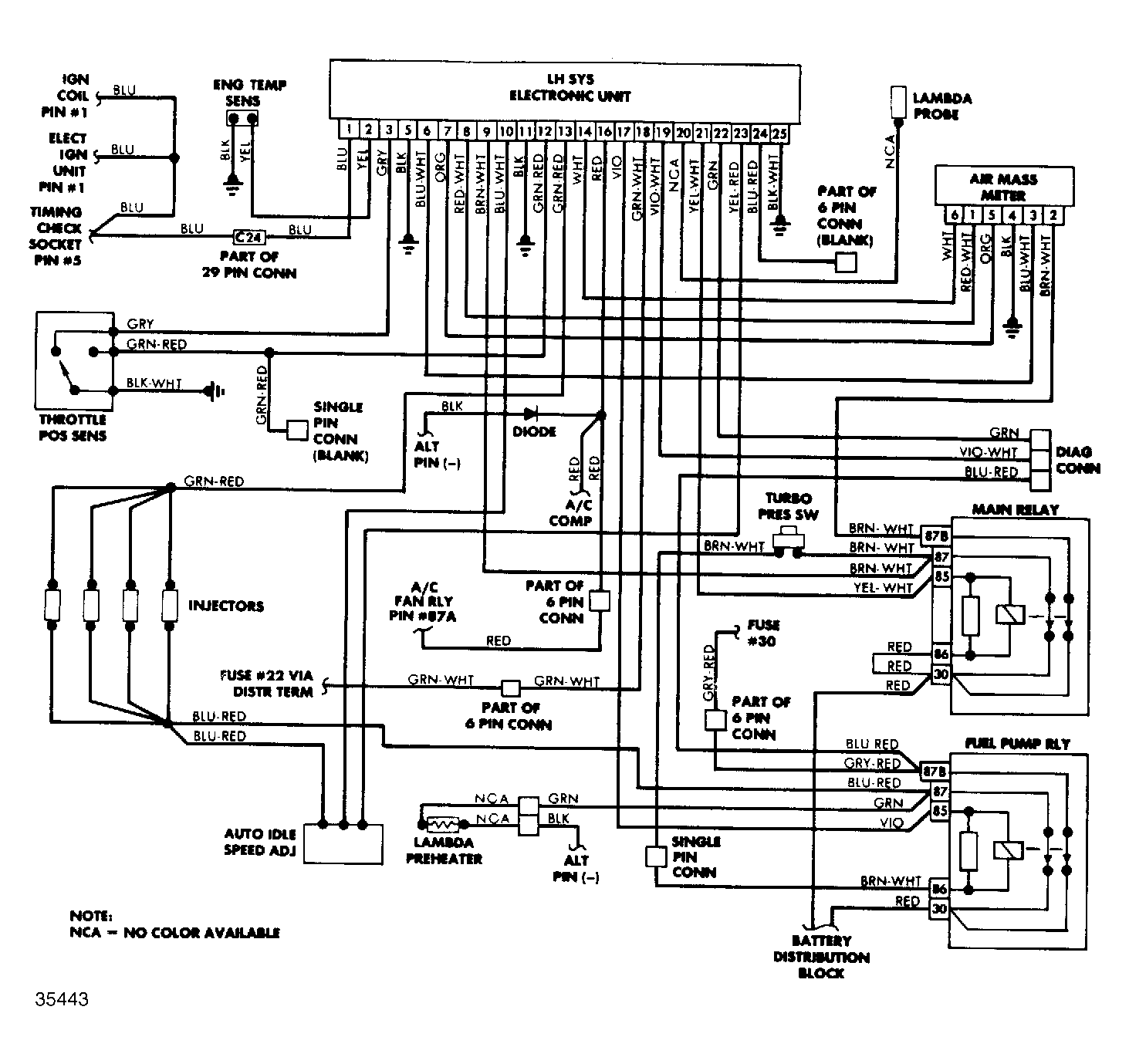

Fig 1: LH Jetronic Fuel Injection System Wiring Diagram

G35443
