Wheel Alignment



WHEEL ALIGNMENT

NOTE: All specifications are given in degrees.

NOTE: All wheel alignments are to be set with the vehicle at CURB HEIGHT. Ride Height

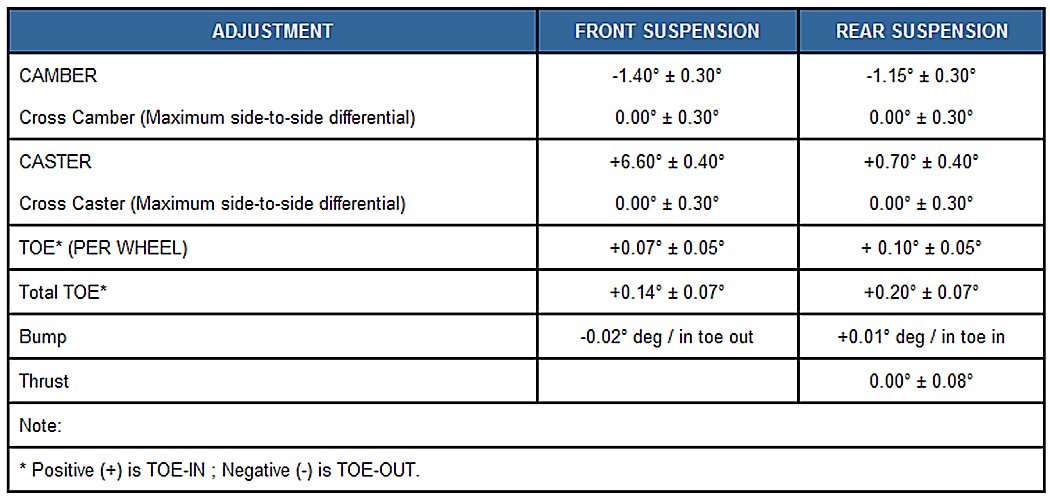

Alignment Specifications:
