Disassembling front lid

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

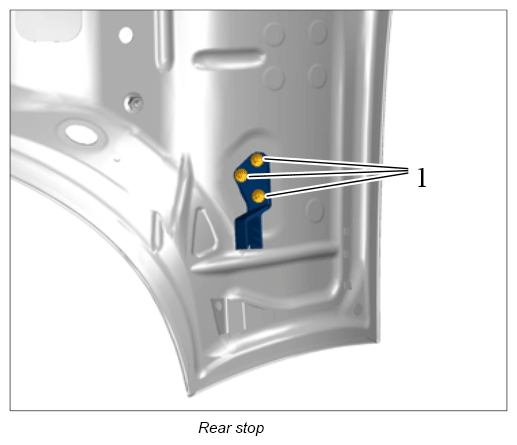

Unscrew and remove fastening screws -1- on rear rubber stop.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

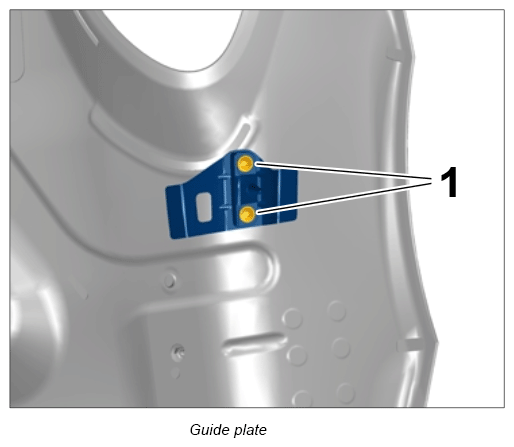

Unscrew and remove fastening screws -1- on the guide plate.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

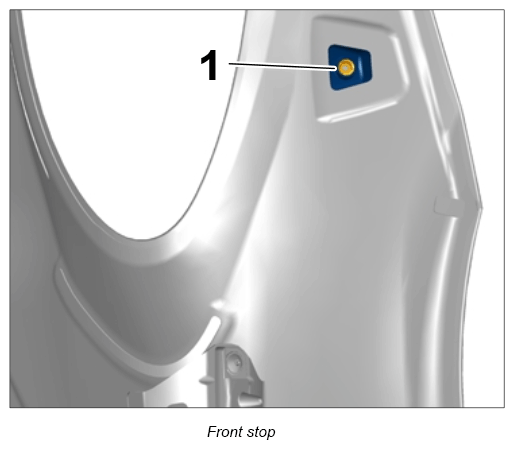

Unscrew and remove fastening nut -1- on rubber stop.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

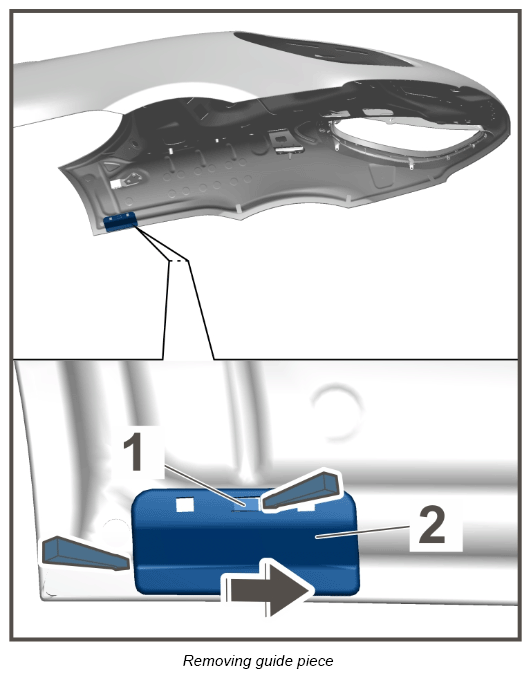

Remove guide piece.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

3.1. Lift locking lug -1- using a plastic wedge.
3.2. Lift guide piece -2- slightly using a plastic wedge in order to loosen the bonded joint.
3.3. Pull off guide piece.
