Removing And Installing Roll-Over Bar

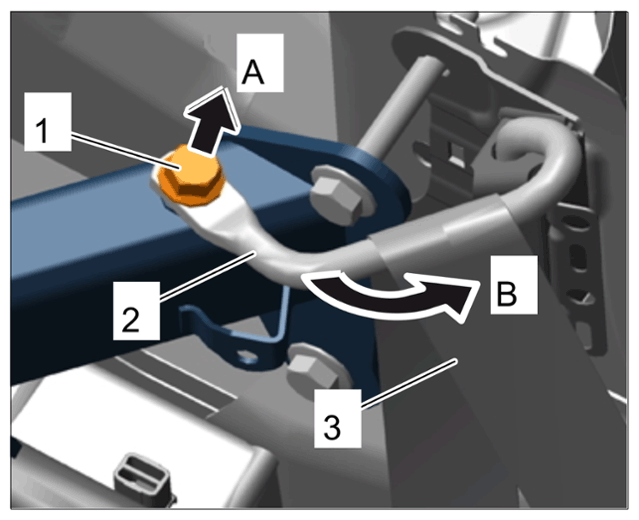

Unscrew and remove screw -1- on belt strap guide at the left and right -2- .
Swivel belt strap guide -2- forward -arrow- and feed out the belt strap -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

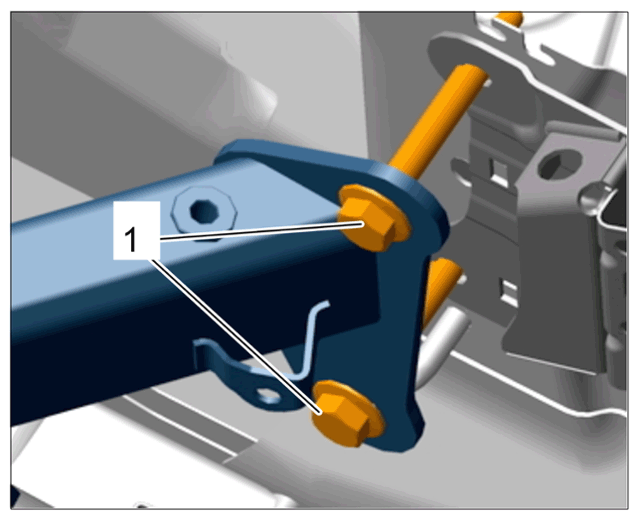

Unscrew and remove side screws -1- on both sides of the roll-over bar.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

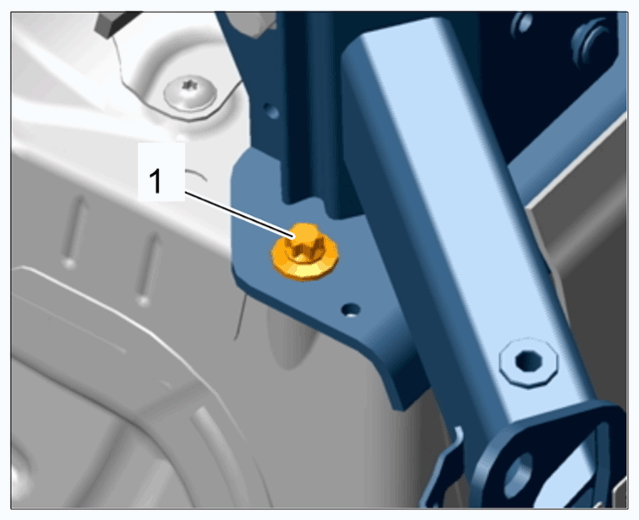

Unscrew and remove front screws -1- on both sides of the roll-over bar.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

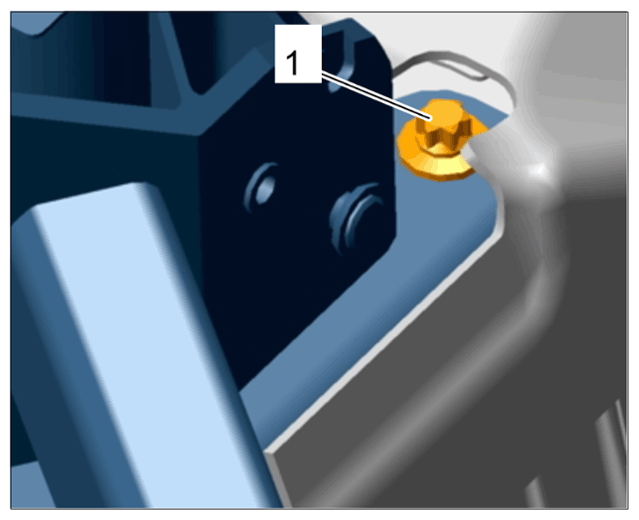

Unscrew and remove rear screws -1- on both sides of the roll-over bar in the convertible top compartment.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Open the convertible top.

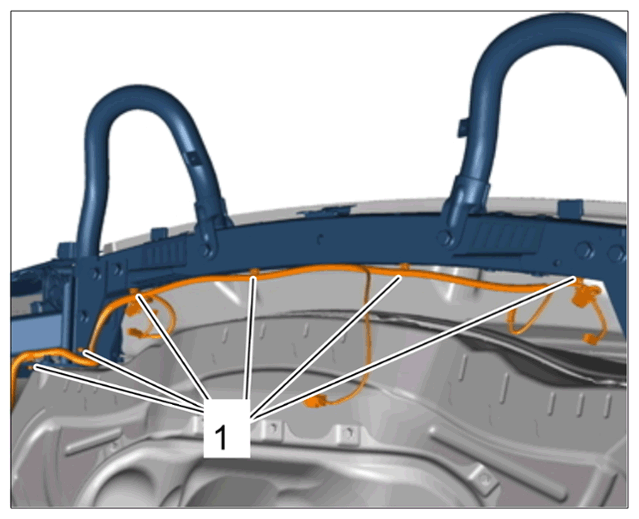

Unclip line bracket -1- and disconnect wire harness for loudspeakers.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

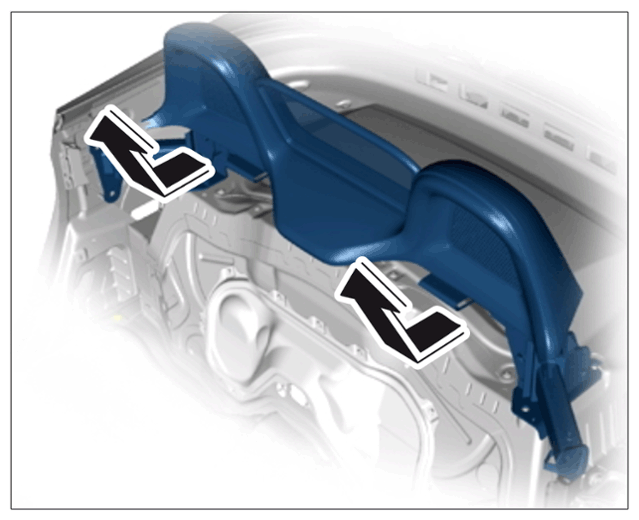

Remove roll-over bar in -direction of arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Installation is performed in reverse order. Pay particular attention to the following:
Tightening torque for screw on belt strap guide: > Tightening torque 46 Nm (34 ftlb.)

Tightening torque for screw on roll-over bar, side: > Tightening torque 46 Nm (34 ftlb.)

Tightening torque for screw on roll-over bar, front: > Tightening torque 46 Nm (34 ftlb.)

Tightening torque for screw on roll-over bar, rear: > Tightening torque 46 Nm (34 ftlb.)
