Removing Vehicle Electrical System Control Unit

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

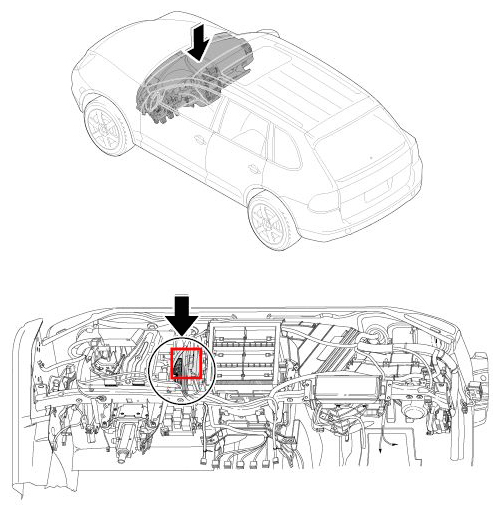

Fig 1: Overview Of Vehicle Electrical System Control Unit

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove ignition key.
Pull control unit slightly downwards out of the holder.

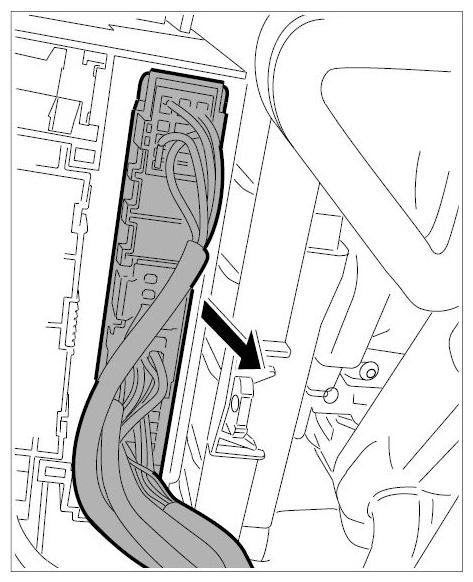

Fig 2: Removing Vehicle Electrical System Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release and remove bottom plugs. Pull control unit completely out of the holder.

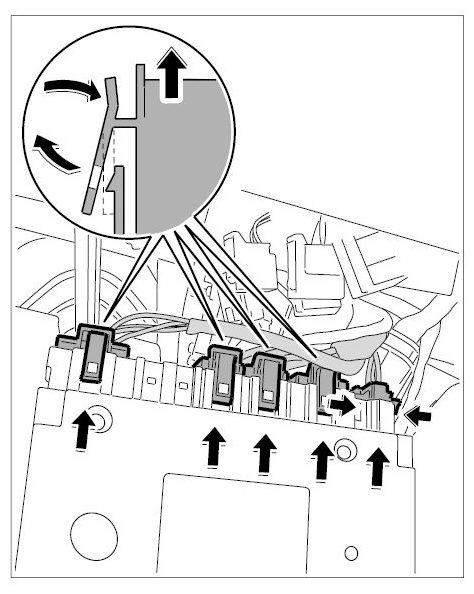

Fig 3: Pulling Off Bottom Plugs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release and remove top plugs.

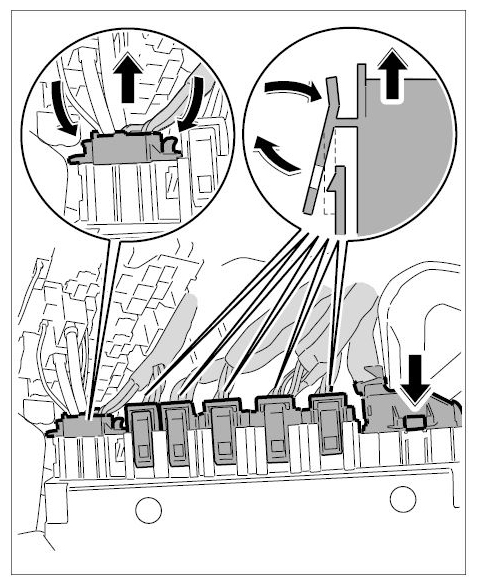

Fig 4: Pulling Off Top Plugs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove control module.
