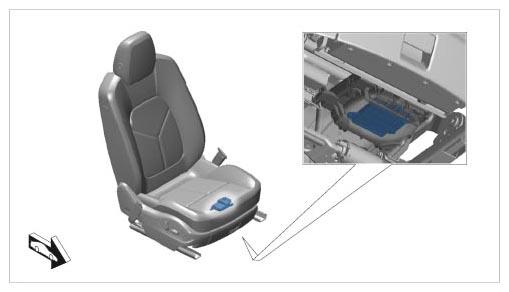

Removing Occupant Detection Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

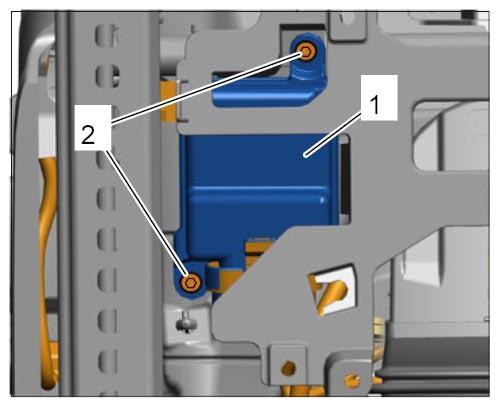

- Unscrew the two fastening screws -2-
and the occupant detection control unit -1-
and remove from the side.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

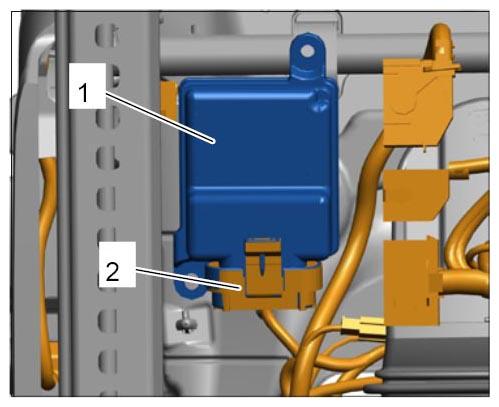

- Release and unplug the electrical plug connection -2-
on the occupant detection control unit -1-
.
- Remove the occupant detection control unit -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
