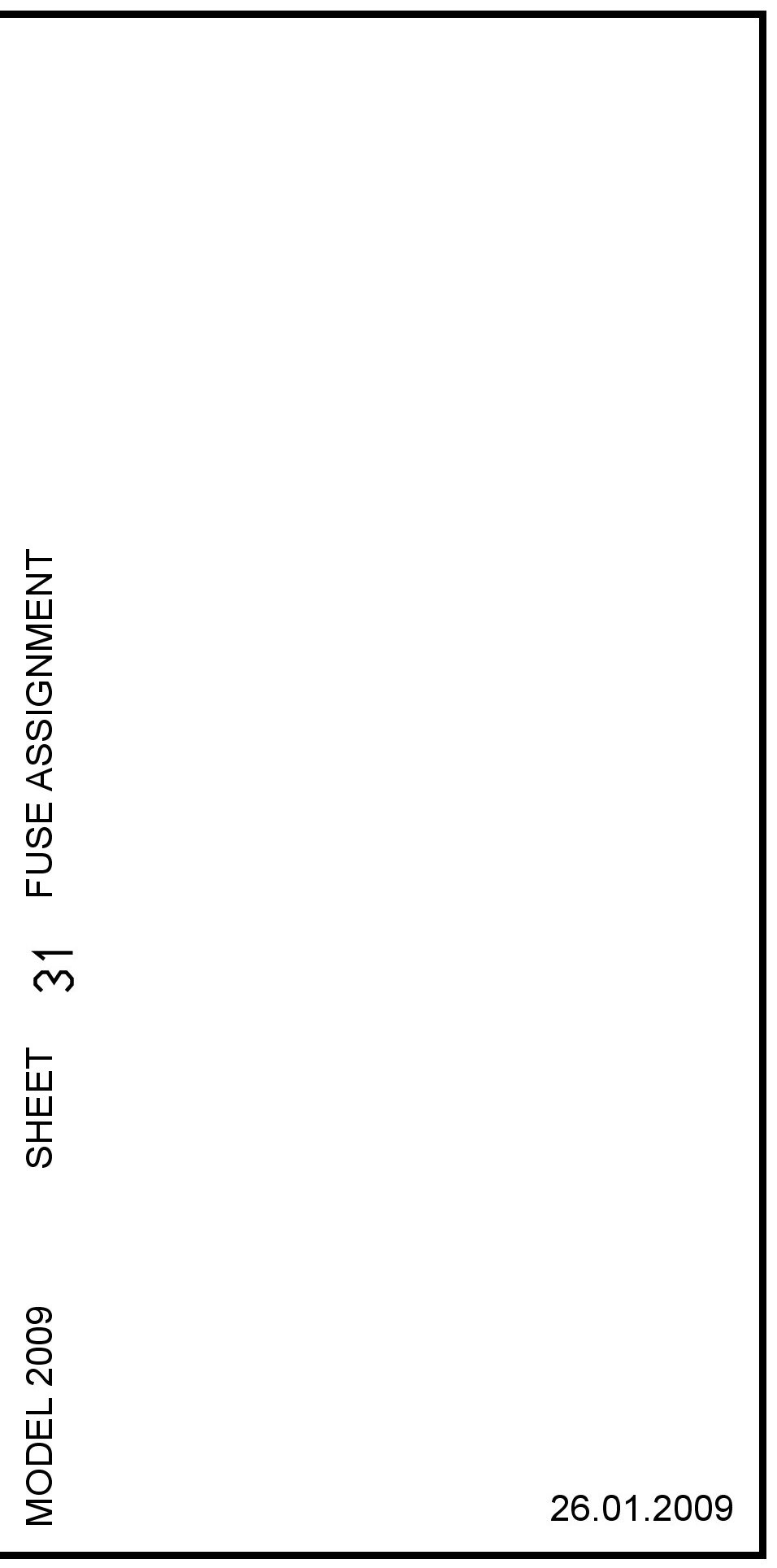

Fuse Assignment - Sheet 31

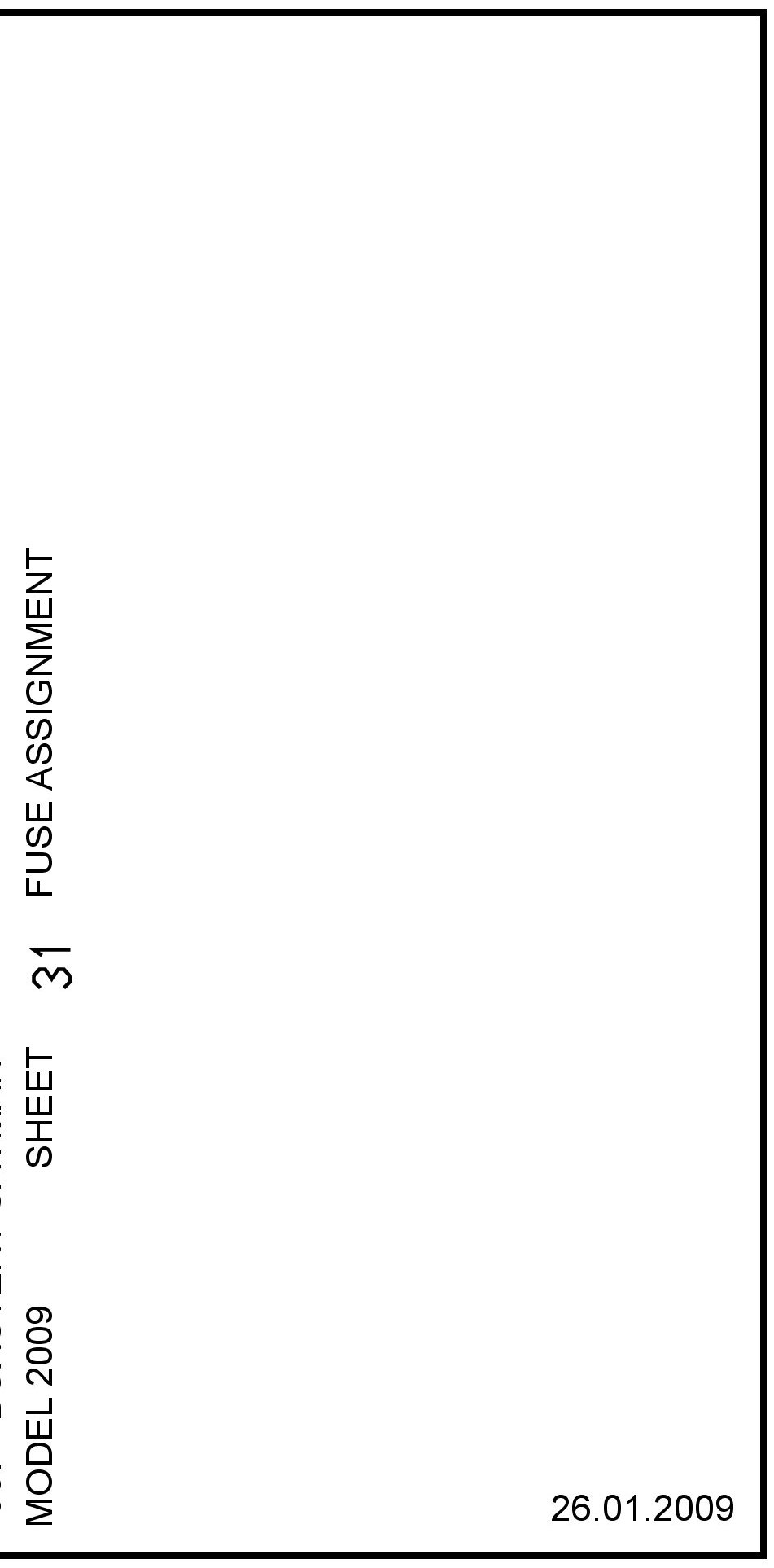

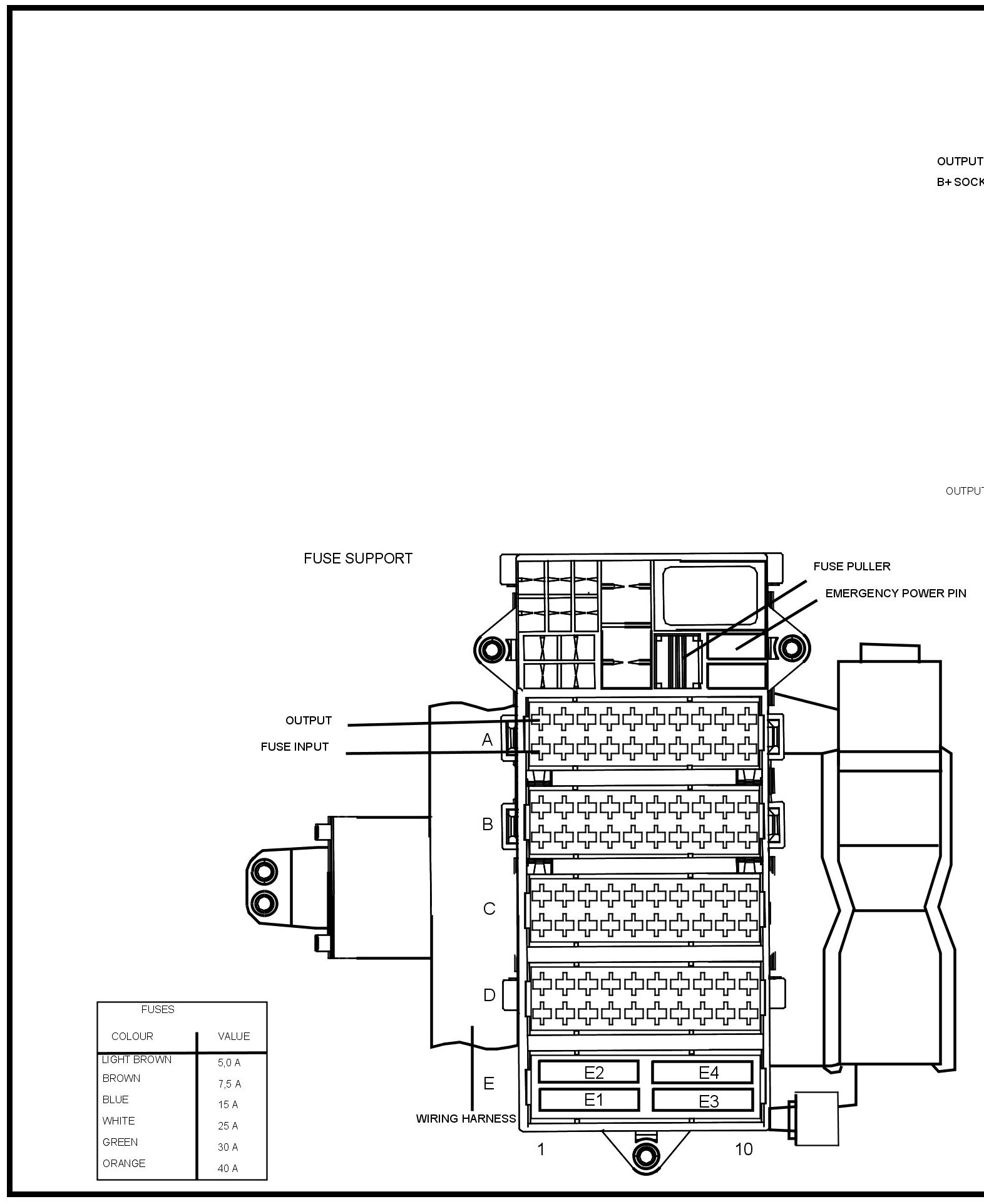

Fuse Assignment - Sheet 31 (Part 1):

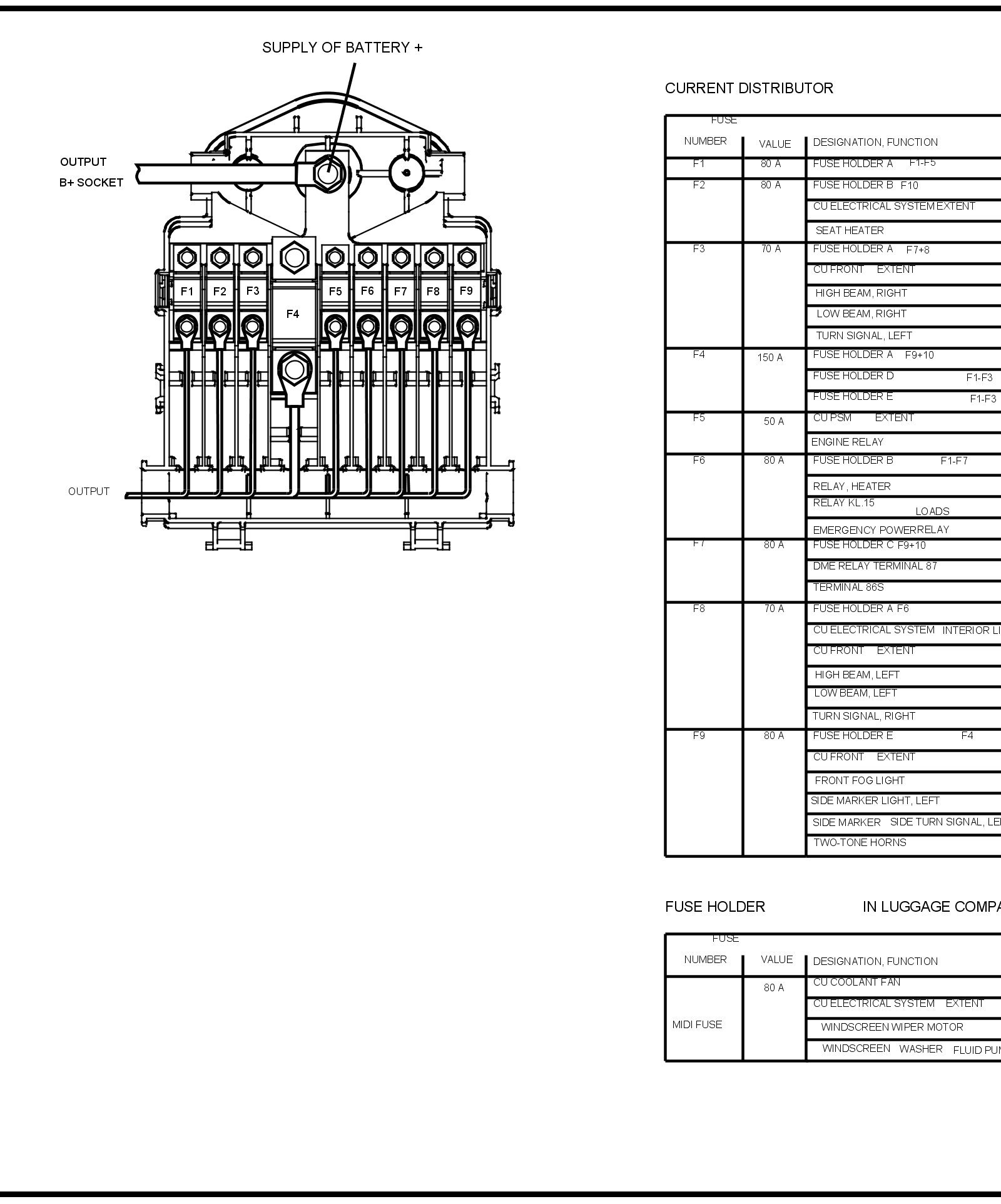

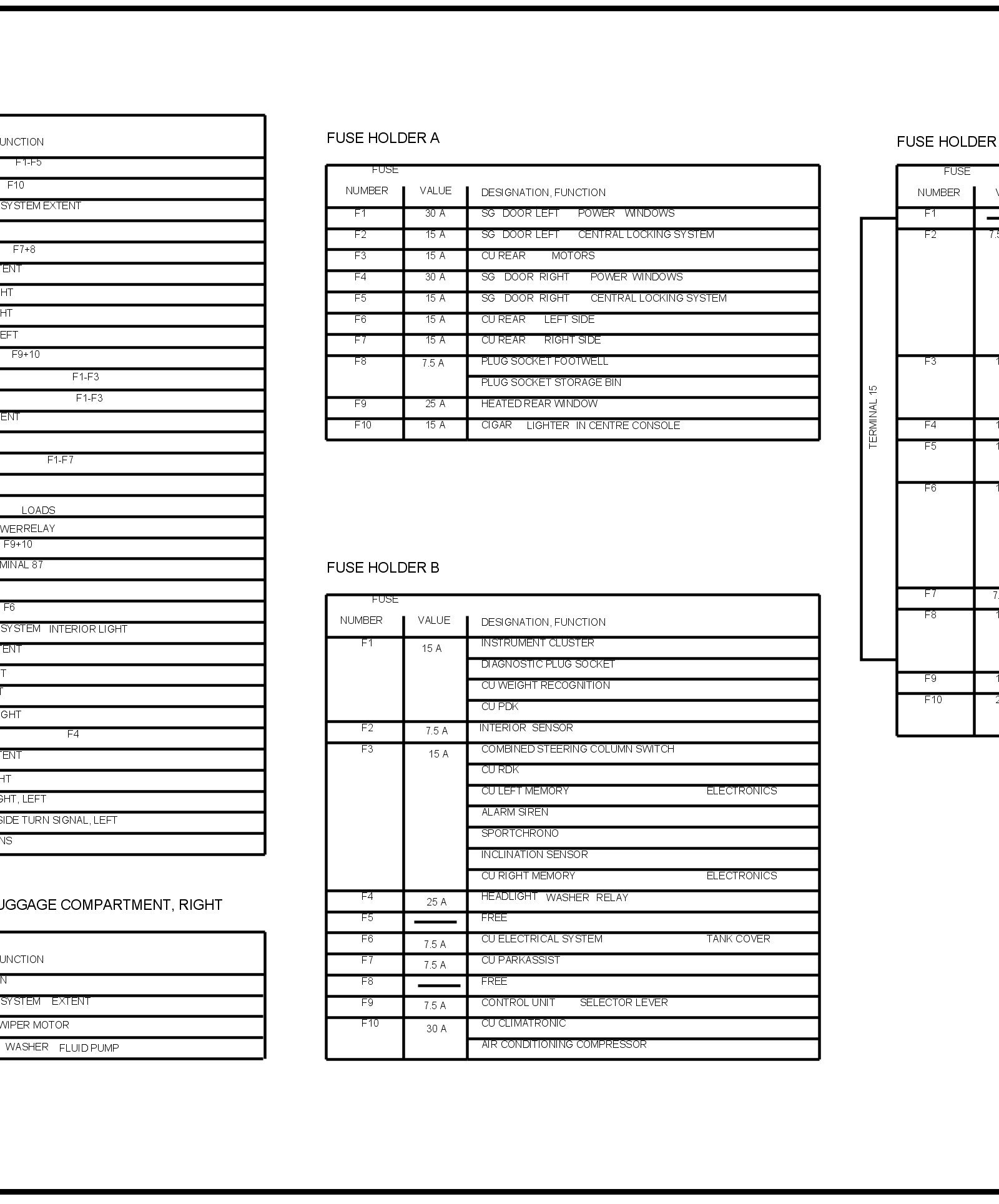

Fuse Assignment - Sheet 31 (Part 2):

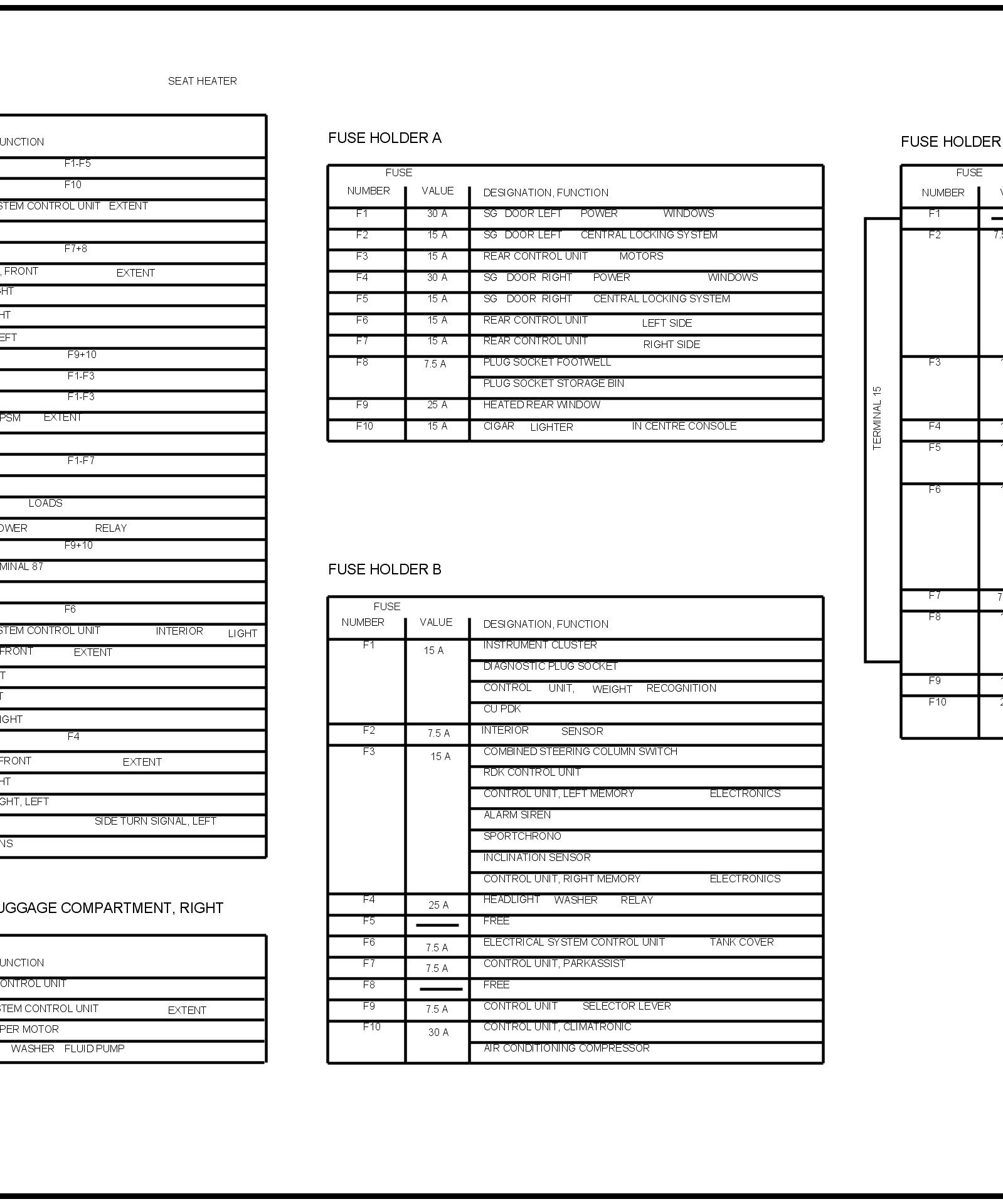

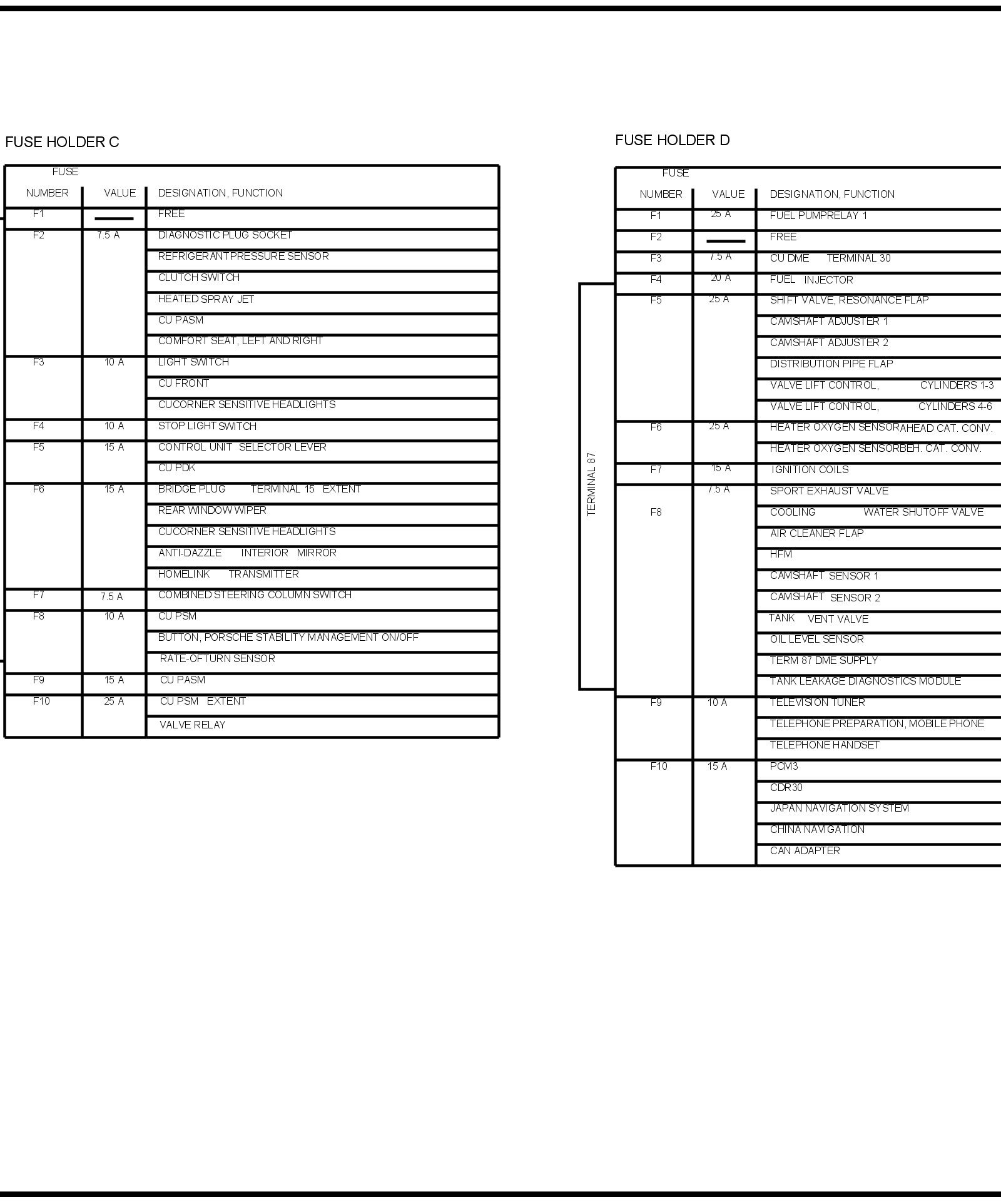

Fuse Assignment - Sheet 31 (Part 3):

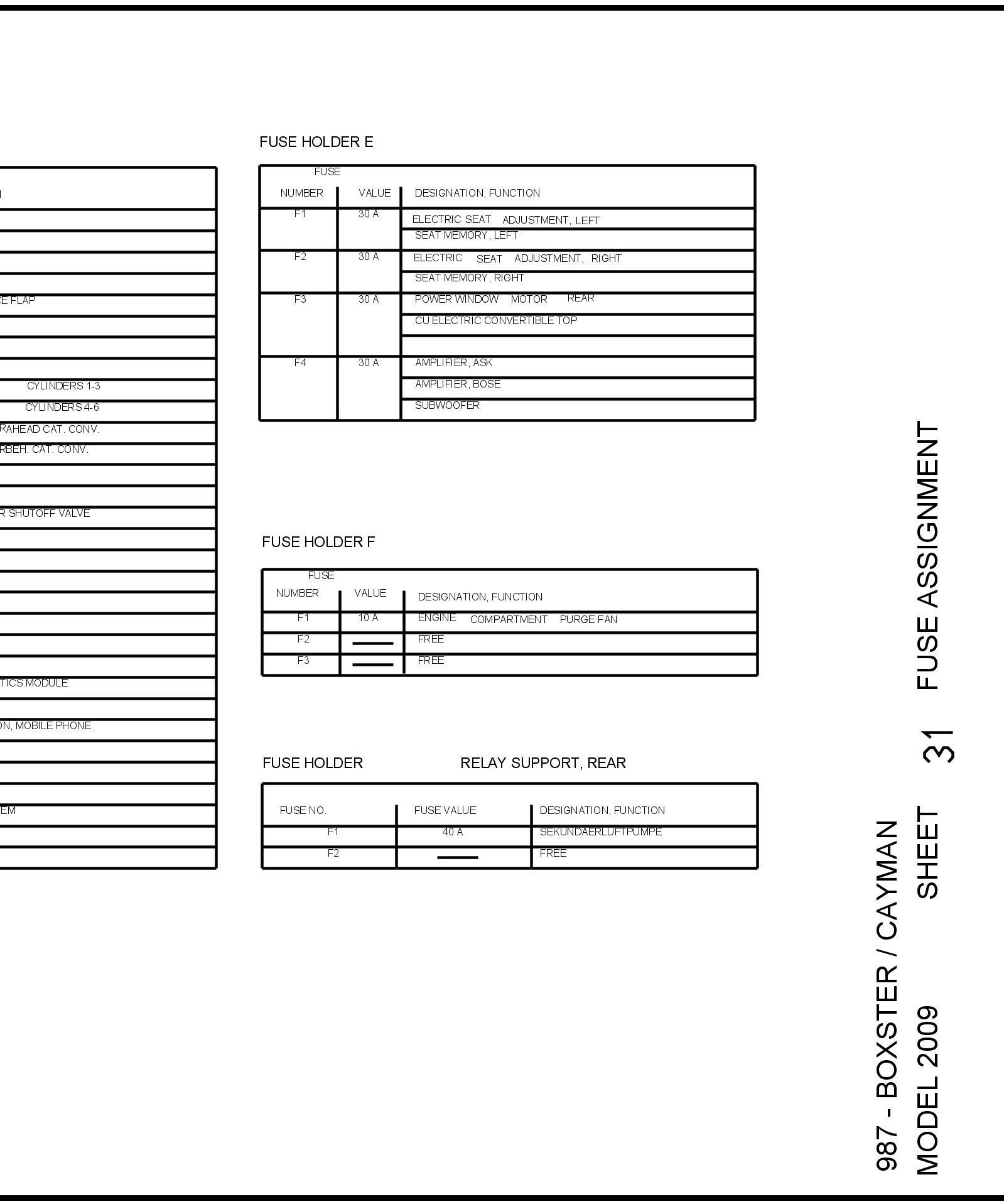

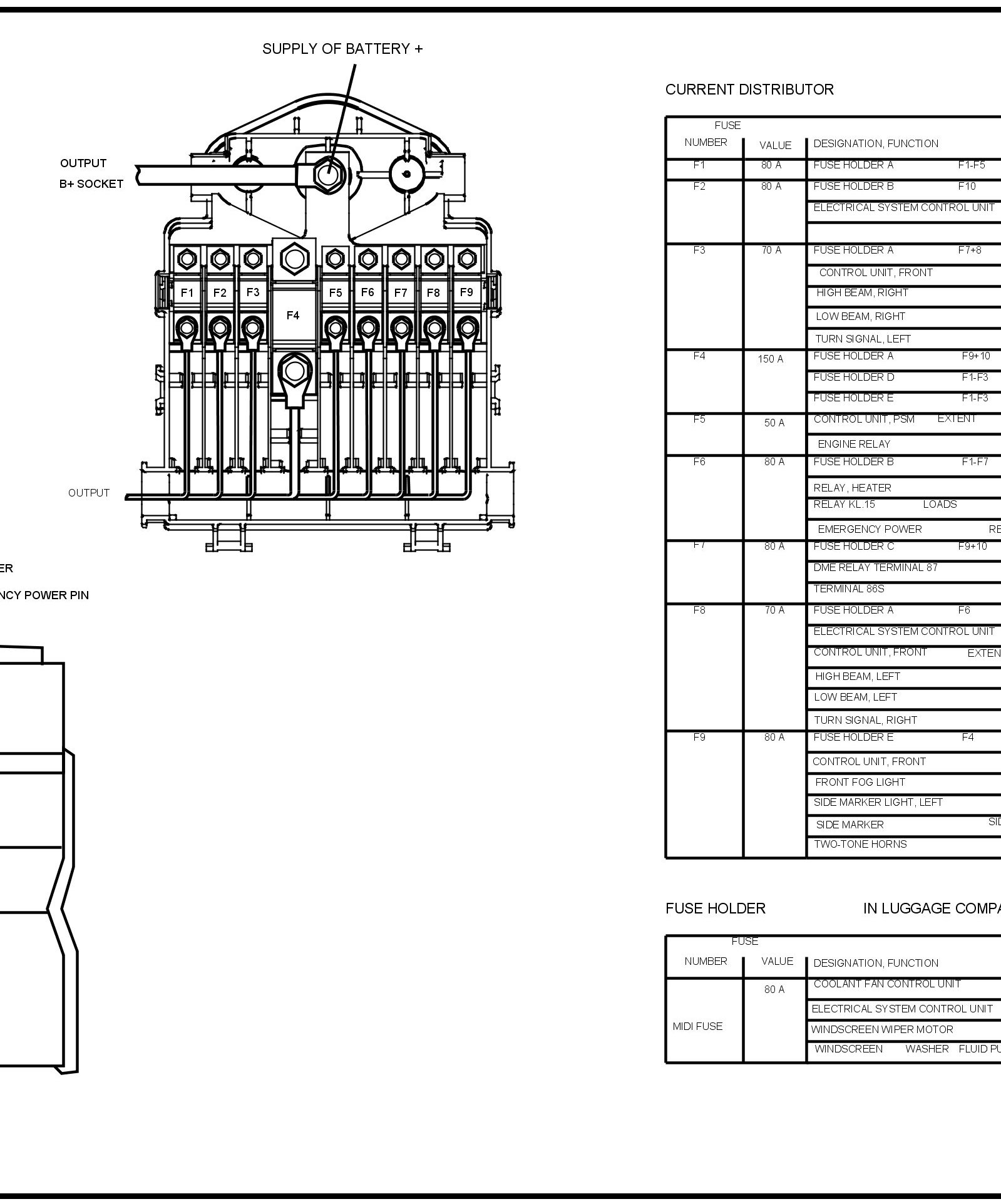

Fuse Assignment - Sheet 31 (Part 4):

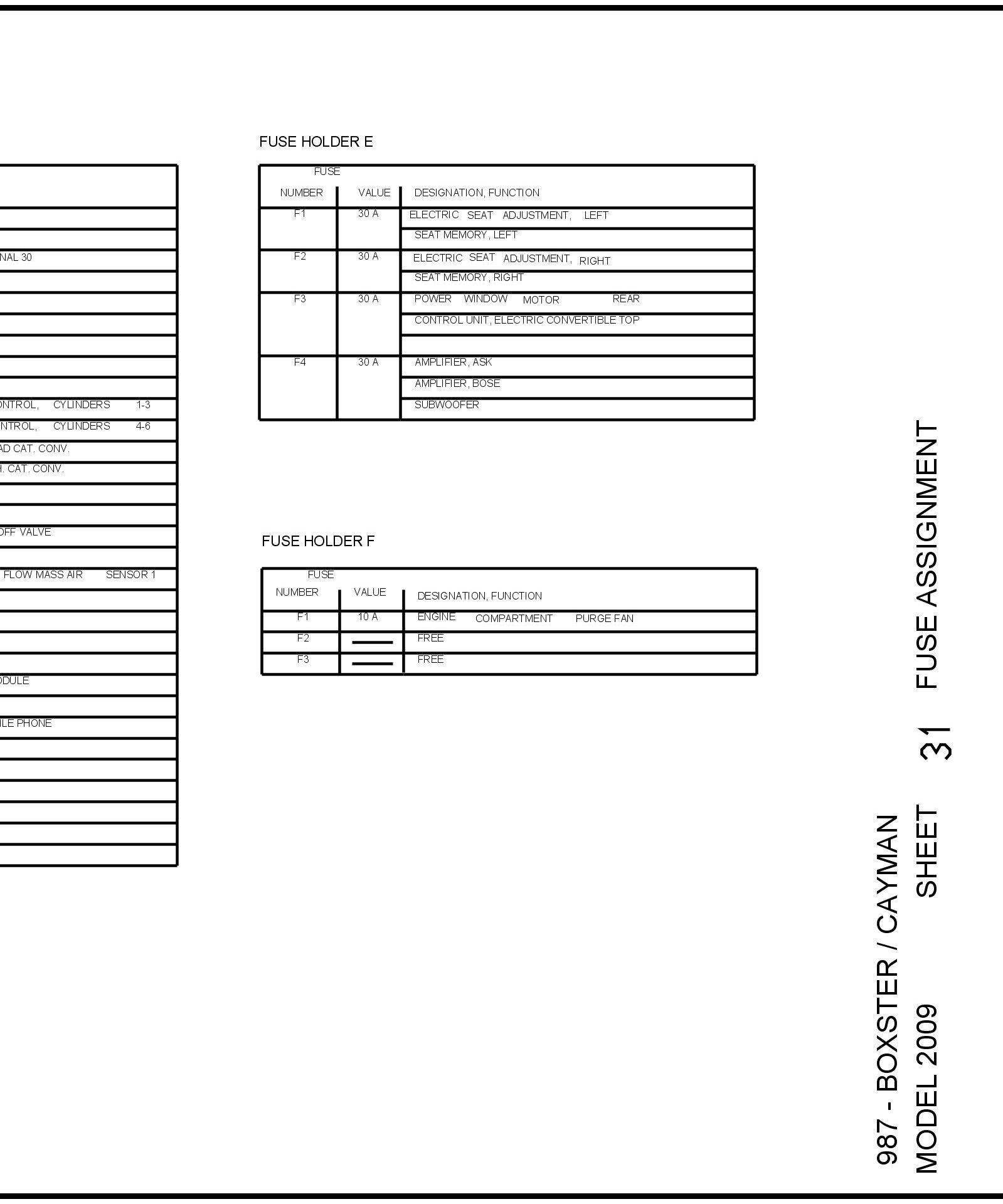

Fuse Assignment - Sheet 31 (Part 5):

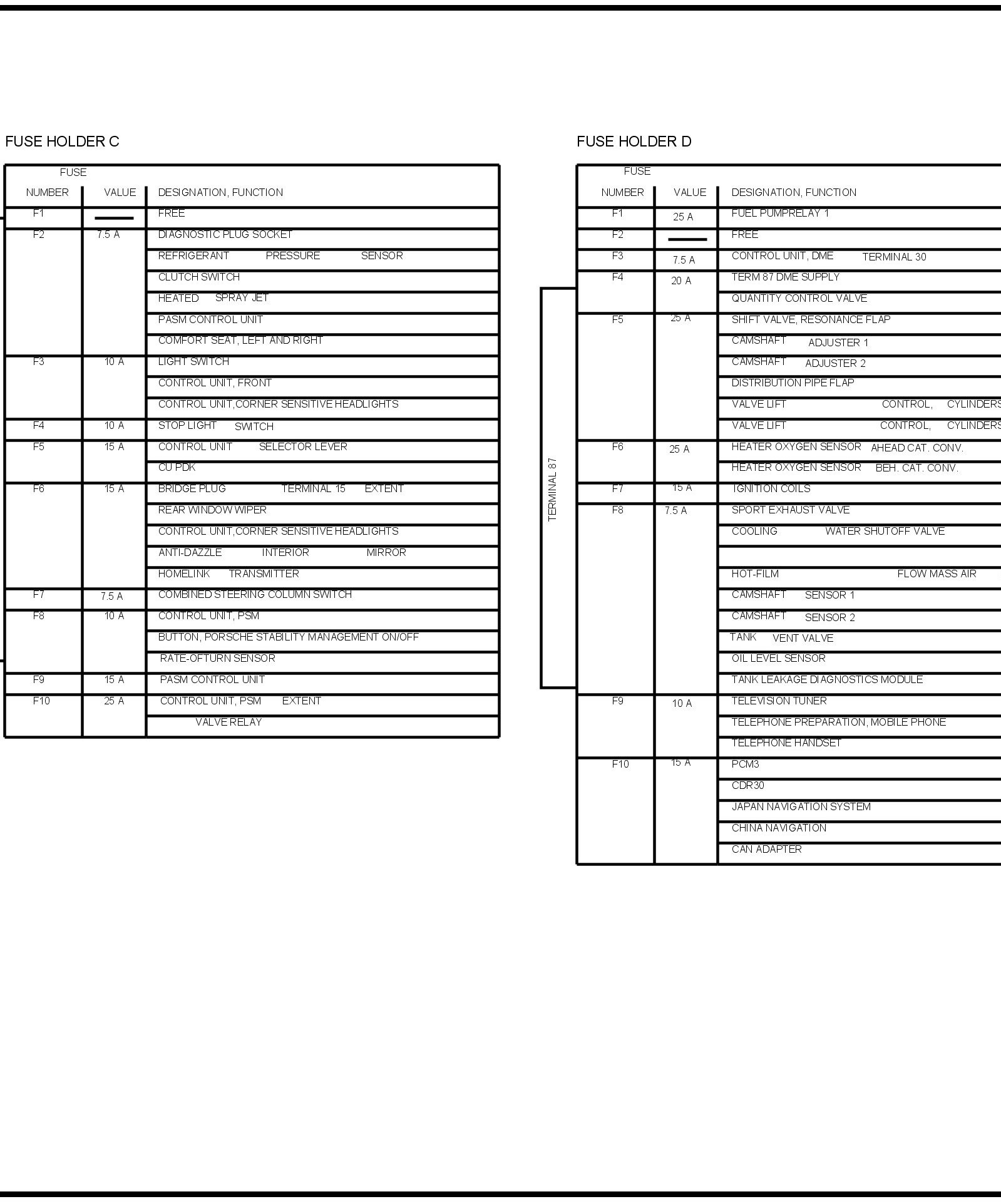

Fuse Assignment - Sheet 31 (Part 6):

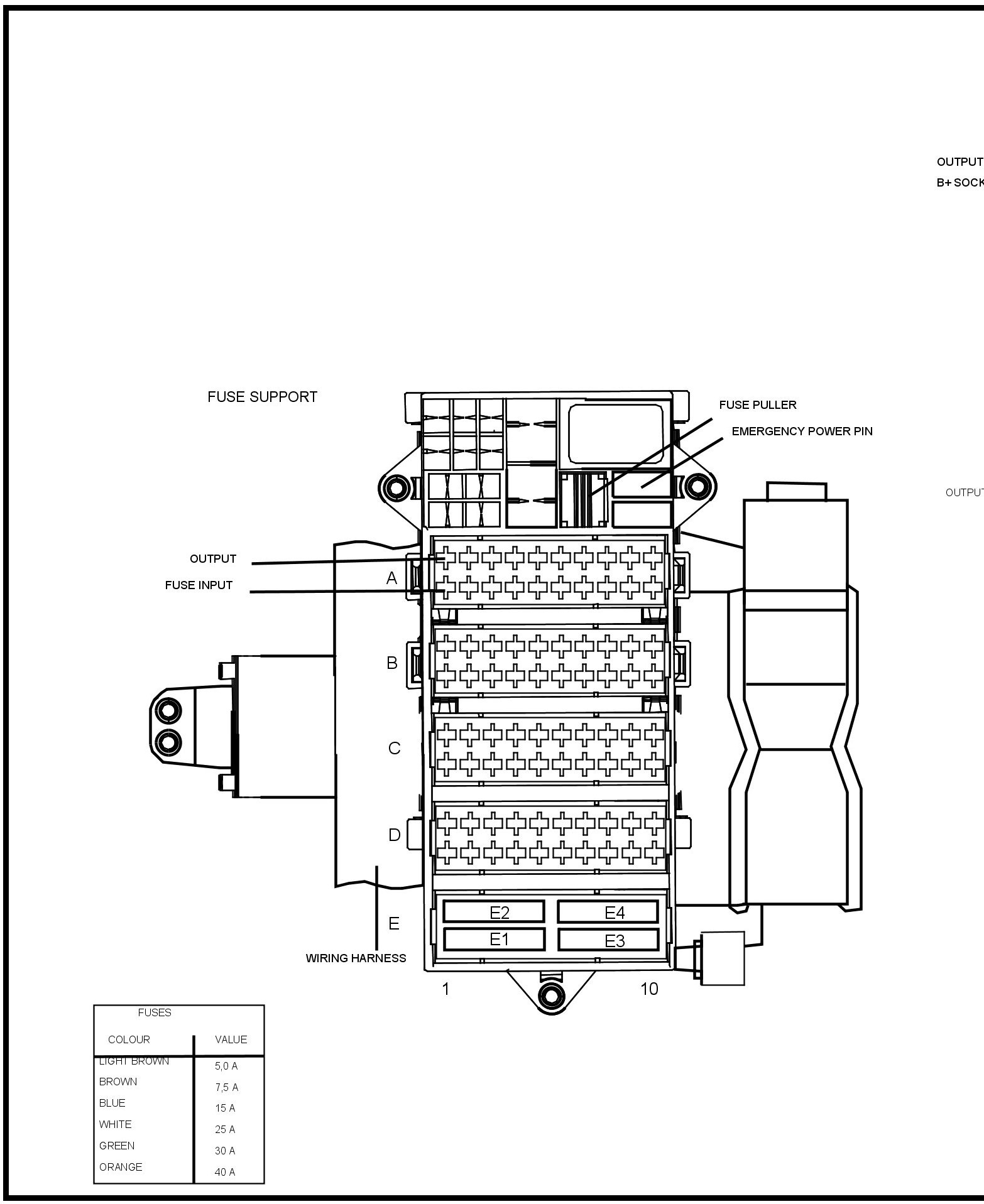

Fuse Assignment - Sheet 31 (Part 1):



Fuse Assignment - Sheet 31 (Part 2):

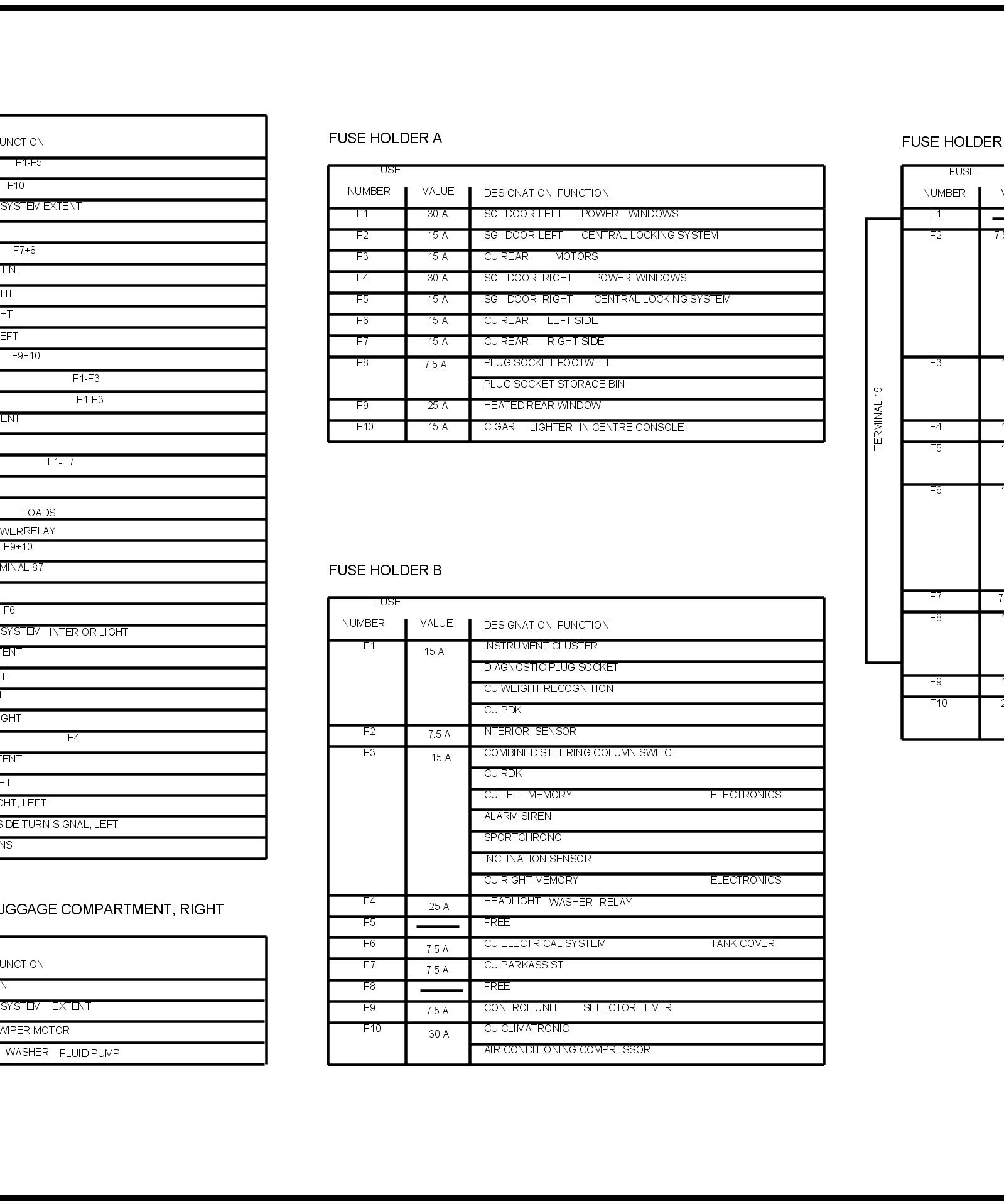

Fuse Assignment - Sheet 31 (Part 3):

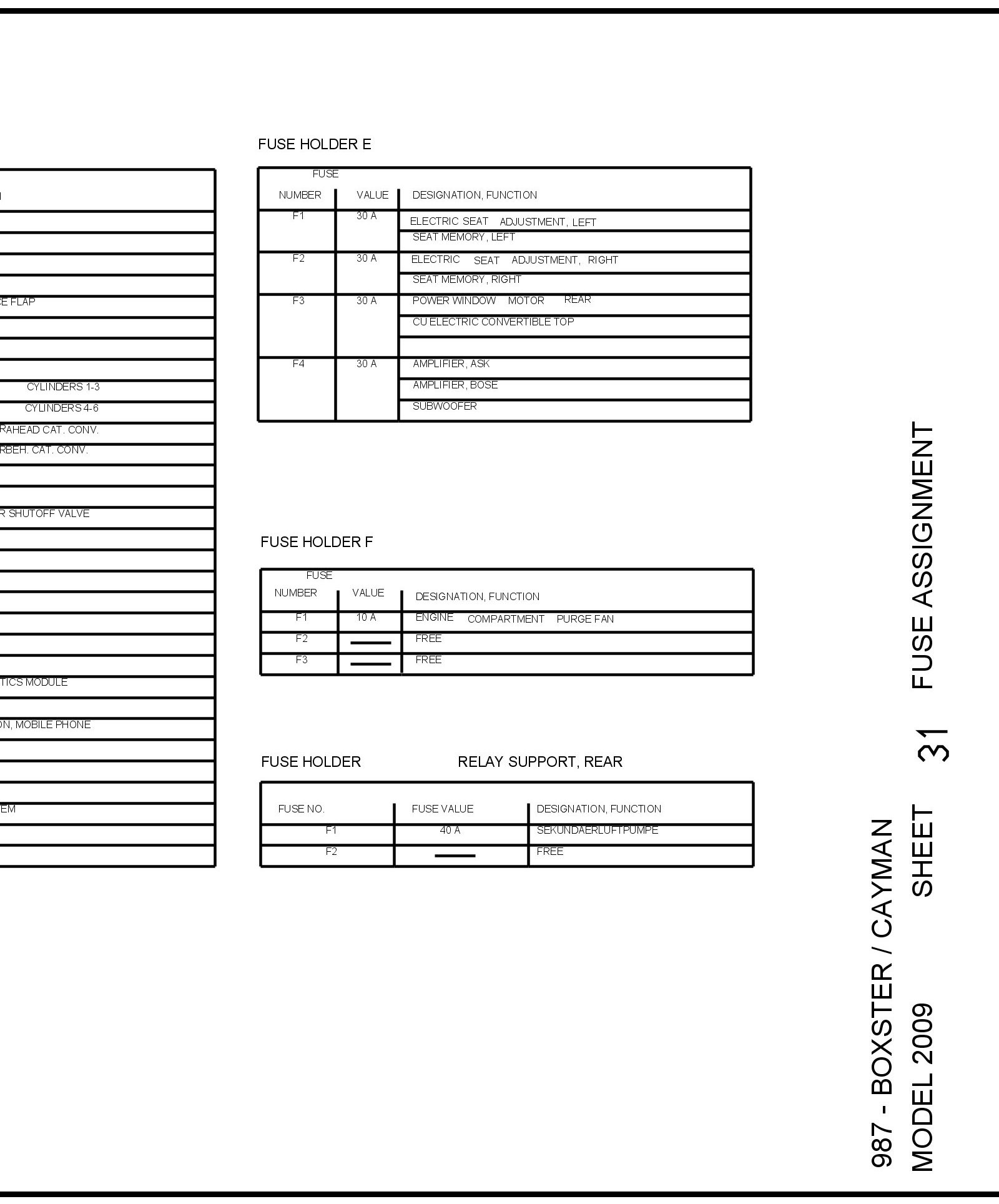

Fuse Assignment - Sheet 31 (Part 4):



Fuse Assignment - Sheet 31 (Part 5):



Fuse Assignment - Sheet 31 (Part 6):

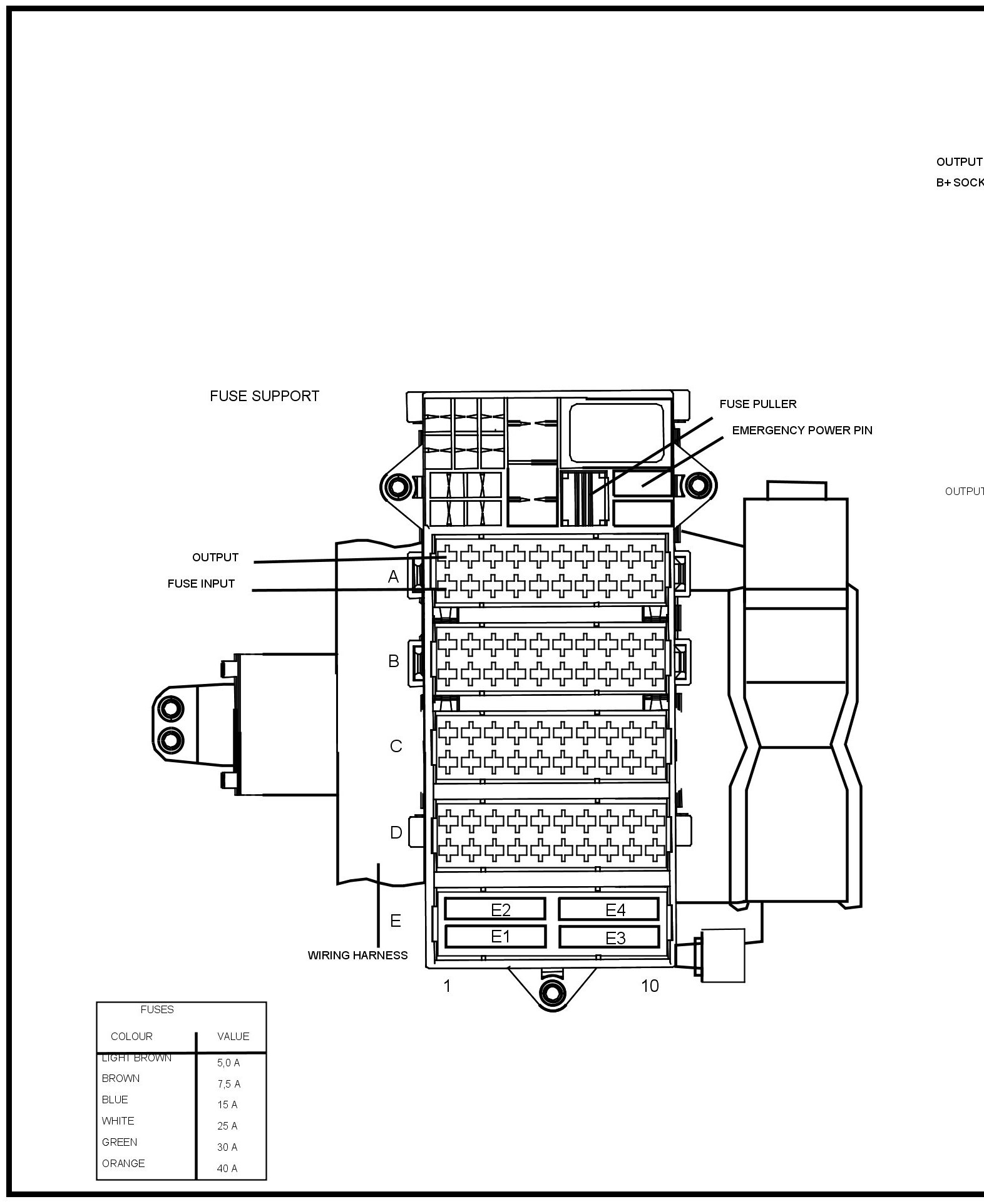

Fuse Assignment - Sheet 31 (Part 1):



Fuse Assignment - Sheet 31 (Part 2):



Fuse Assignment - Sheet 31 (Part 3):



Fuse Assignment - Sheet 31 (Part 4):



Fuse Assignment - Sheet 31 (Part 5):



Fuse Assignment - Sheet 31 (Part 6):
