Hydraulic System: Specifications

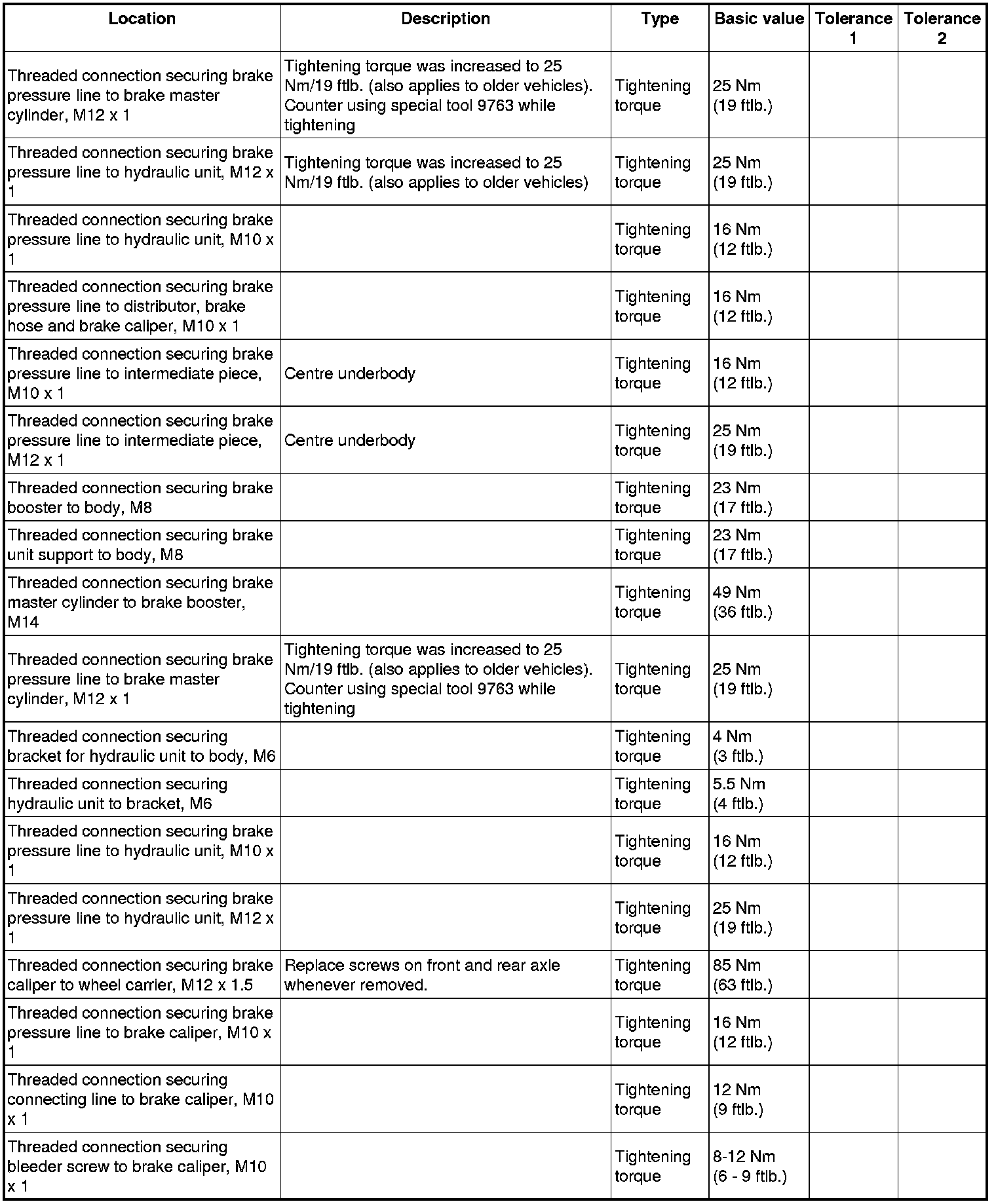

WM 4700TW Tightening torques for brake hydraulics

Technical values





Technical values

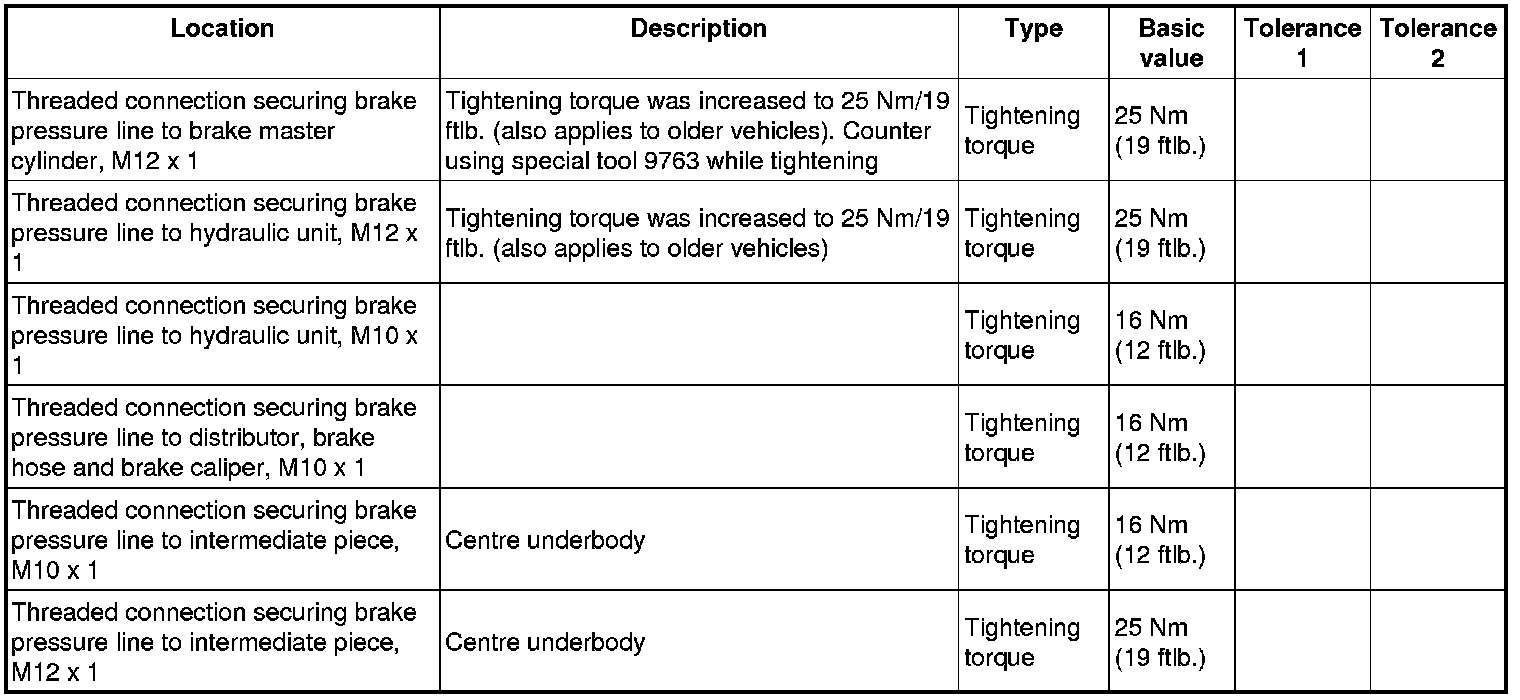

Brake pressure line

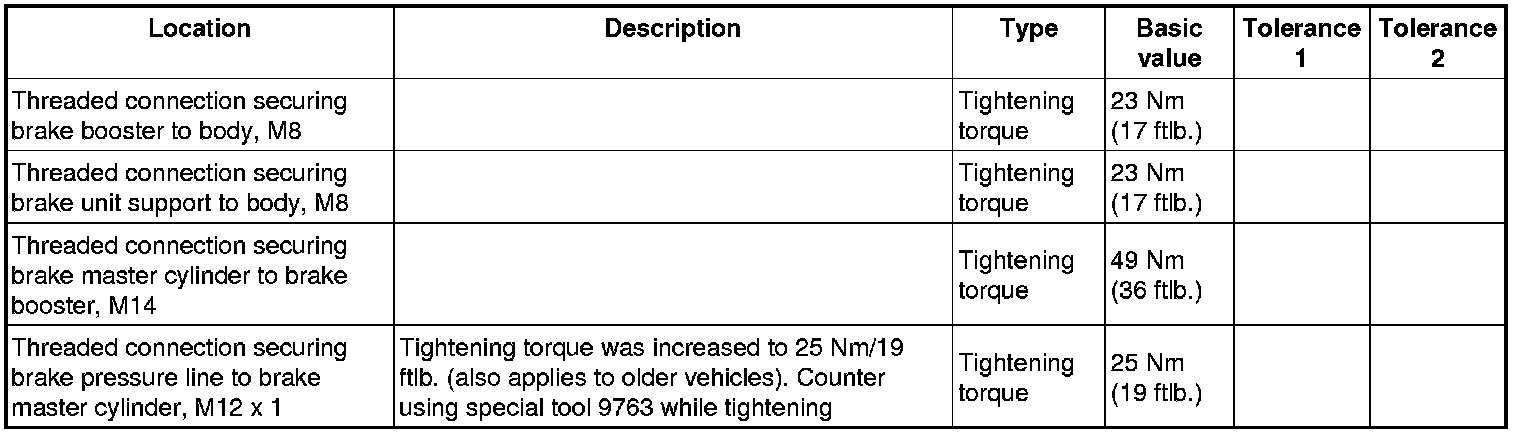

Master brake cylinder/brake booster

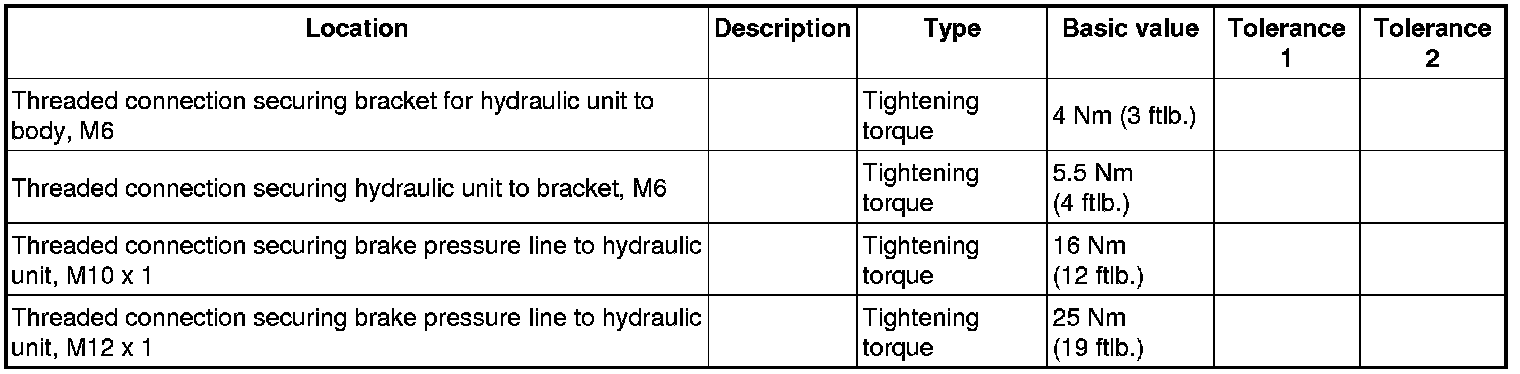

Hydraulic unit

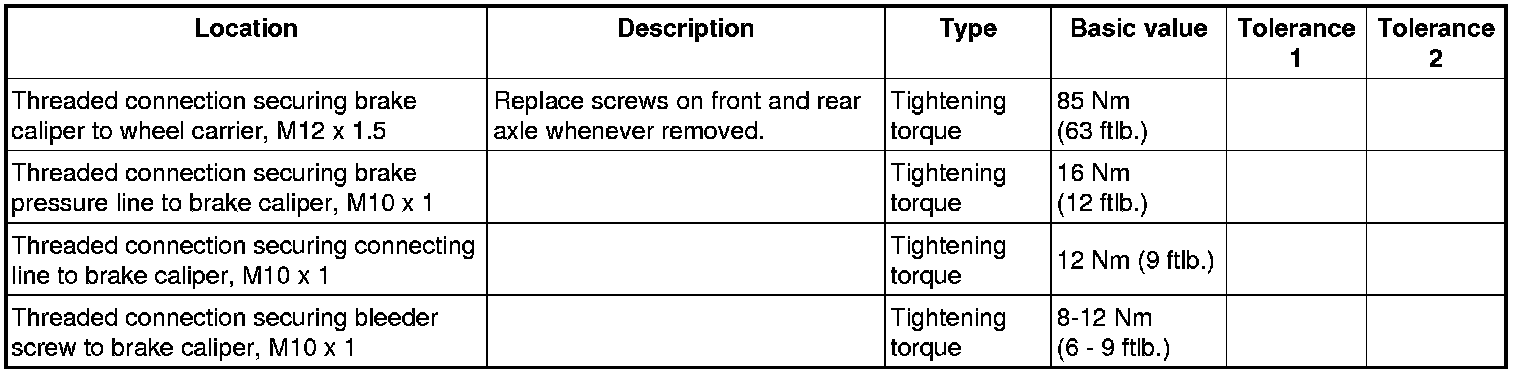

Brake caliper
