Removing Speed Sensor

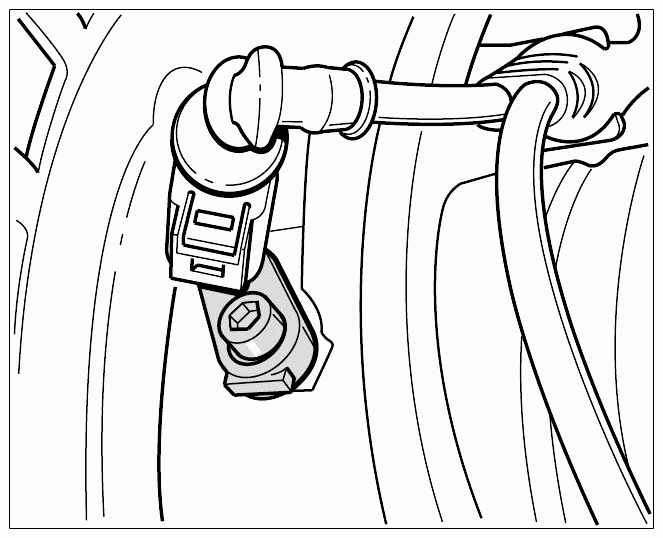

Fig 1: Identifying Speed Sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

At the front, turn the steering so far that the speed sensor is made more easily accessible. The wheel in the rear does not need to be removed.

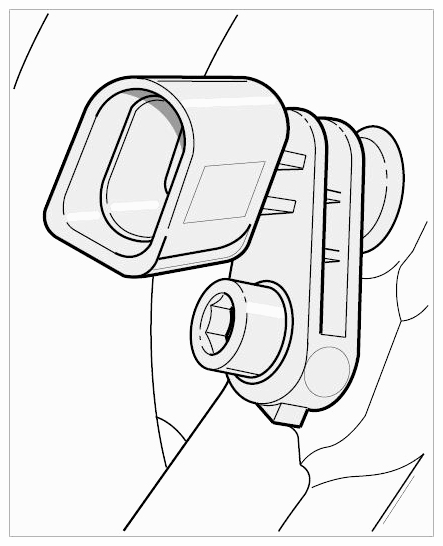

Fig 2: Identifying Speed Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect speed sensor connector.

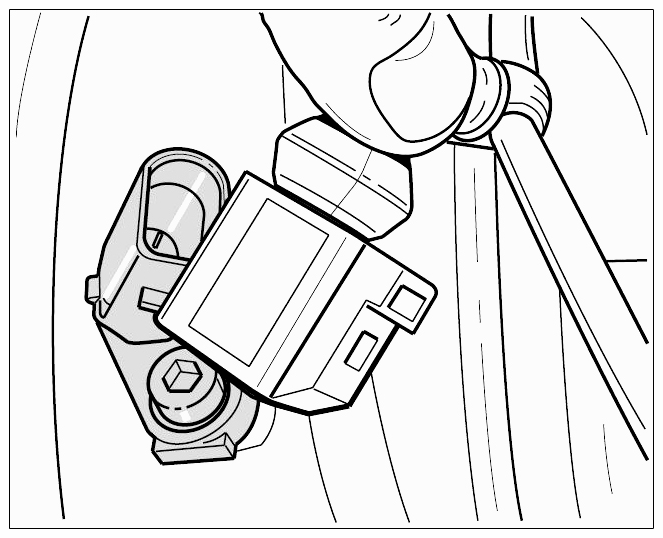

Fig 3: Identifying Speed Sensor Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws and remove speed sensor.

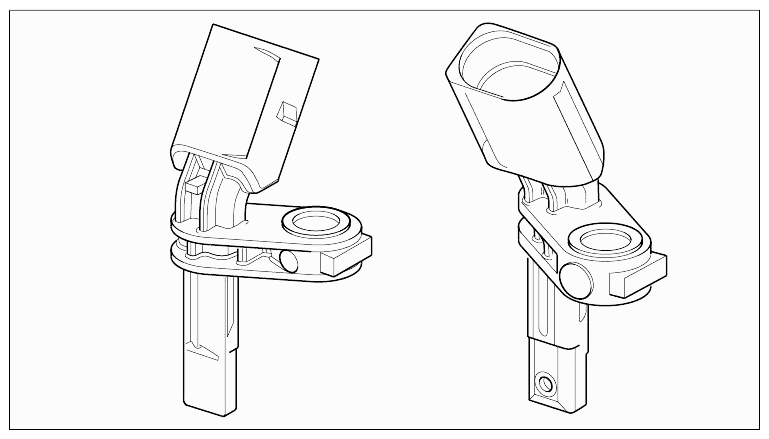

Fig 4: Identifying Speed Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
