Installing Dme Control Unit

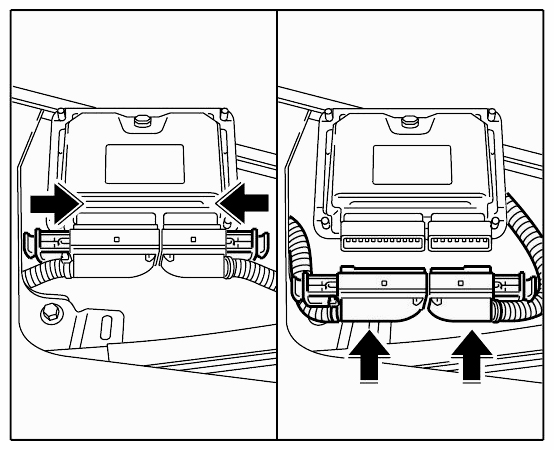

  1. Insert both connectors into the control unit and push in the latch in -direction of arrow-  .
    Fig 1: Installing Control Unit Connectors
    G09410165Courtesy of PORSCHE CARS NORTH AMERICA, INC.

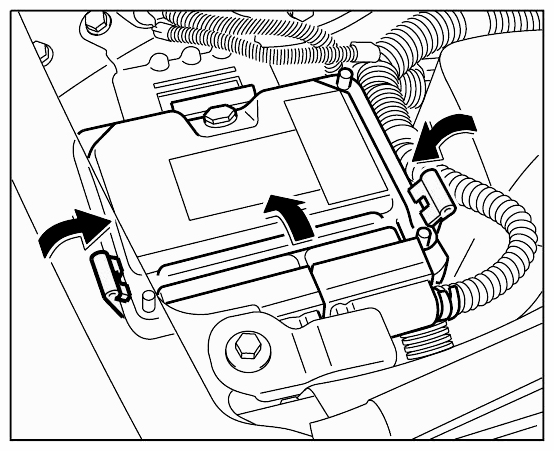

  2. Insert control unit and secure with the two retaining clips -arrow-  .
    Fig 2: Installing Control Unit
    G09410166Courtesy of PORSCHE CARS NORTH AMERICA, INC.
