Subsequent Work

  1. Reconnect the bar ignition modules. The connectors must lock with an audible click. -arrow-

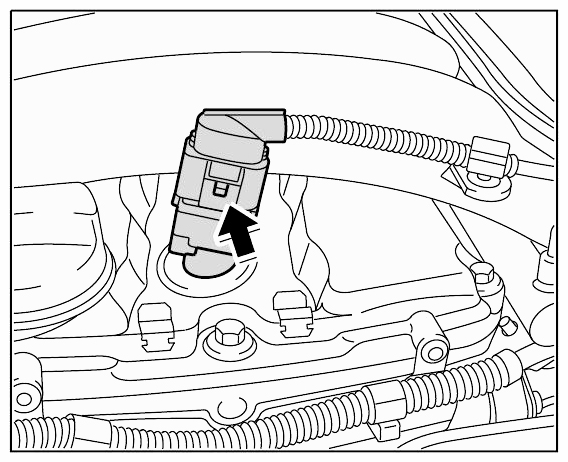

    Fig 1: Locating Bar Ignition Modules
    G09410364Courtesy of PORSCHE CARS NORTH AMERICA, INC.
