Installing Rear Belt Lock

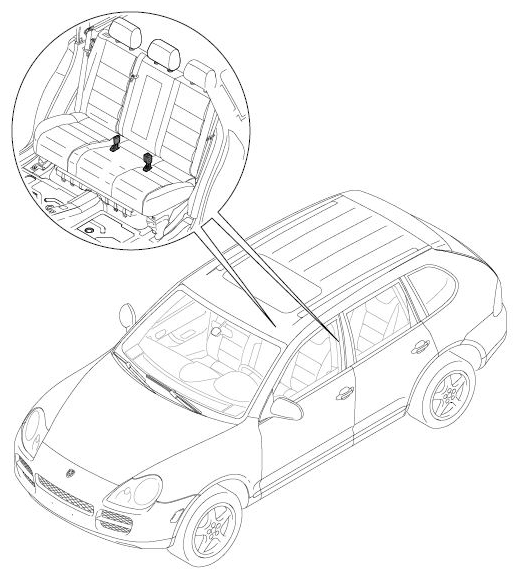

Fig 1: Identifying Rear Belt Lock

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

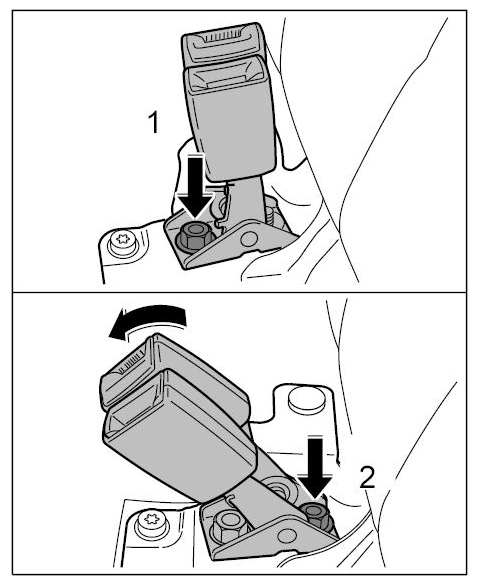

Position belt buckle. Screw in and tighten the front fastening nut -1- . → Tightening torque: 37 ft lbs.

Fig 2: Positioning Belt Buckle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold belt buckle forward -arrow- .

Fig 3: Folding Belt Buckle Forward
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

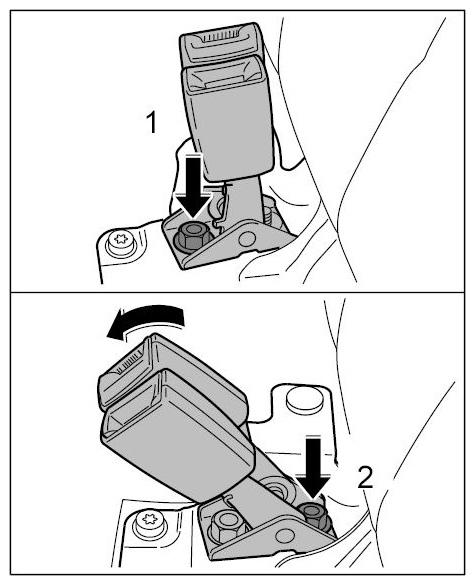

Screw in and tighten the rear fastening nut -2- . → Tightening torque: 50 Nm (37 ft lbs.)

Fig 4: Locating Belt Buckle Rear Fastening Nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

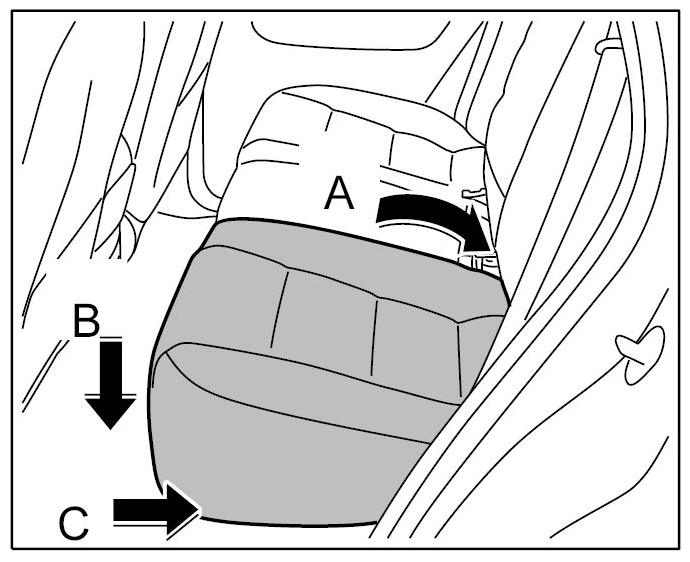

Fold back back seat -arrow A- , press downward at the front edge -arrow B- and push to the rear -arrow C- .

Fig 5: Adjusting Back Seat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
