Power Distributor

Power distributor is located over vehicle electrical system battery. Vehicle electrical system battery is located below driver's front seat. See COMPONENT LOCATIONS .

Fig 1: Identifying Battery Reset Button In Power Distributor

Courtesy of PORSCHE OF NORTH AMERICA, INC.

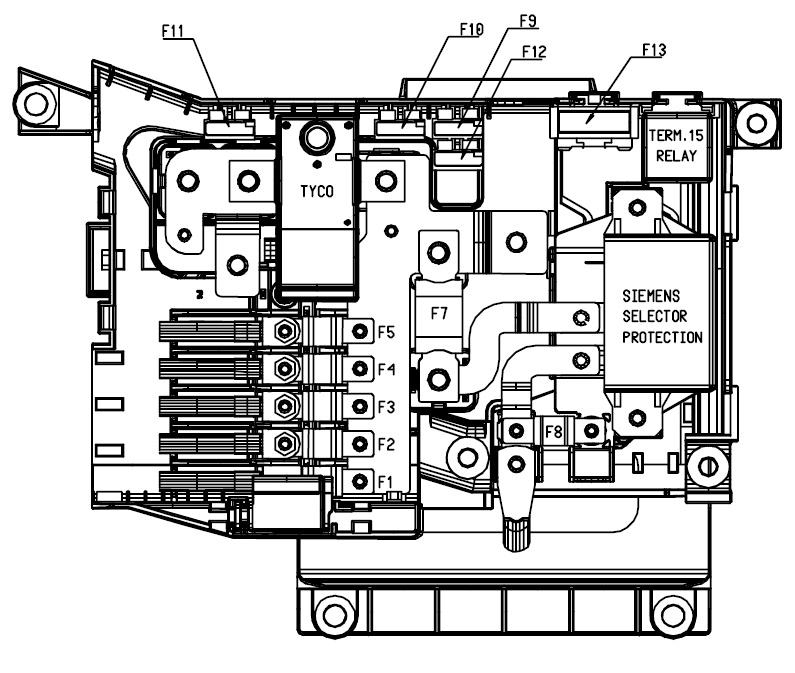

Fig 2: Identifying Power Distributor

Courtesy of PORSCHE OF NORTH AMERICA, INC.

POWER DISTRIBUTOR IDENTIFICATION

Fuse No.	Amperage	Circuit Protected
1	150	Left Fuse Box
2	150	Right Fuse Box
3	60	Right Fuse Box
4	-	Not Used
5	60	Terminal 15 Relay
6	-	Not Used
7	250	Charging Relay
8	-	Not Used
9	5	On Board Computer Network Control Unit (Measure Signal)
10	-	Not Used
11	-	Not Used
12	-	Reserve
13	40	Level Compressor
14	-	Not Used
