Washer Fluid Level Switch: Service and Repair

WM 926719 Removing and installing sender for washer fluid-level indicator

Preliminary work

Remove tank for windscreen washer system. => Removing and installing tank for windscreen washer system - section on "removing"

Installing sender for washer fluid-level indicator

Installing sensor for fluid level display

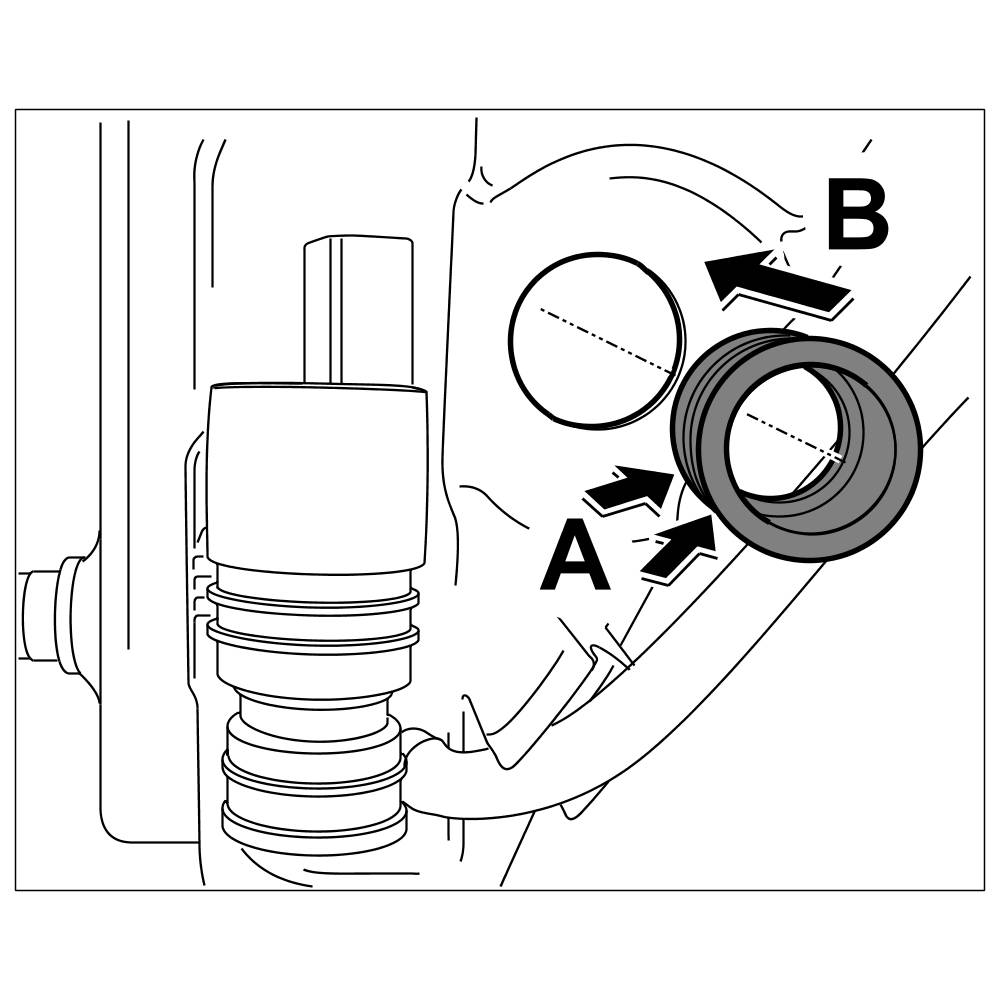

1. Apply a suitable rubber lubricant (tyre mounting paste) to the sealing surface -arrows A- and press the rubber seal into the tank -arrow B- until it is felt to engage.





Pressing in rubber seal

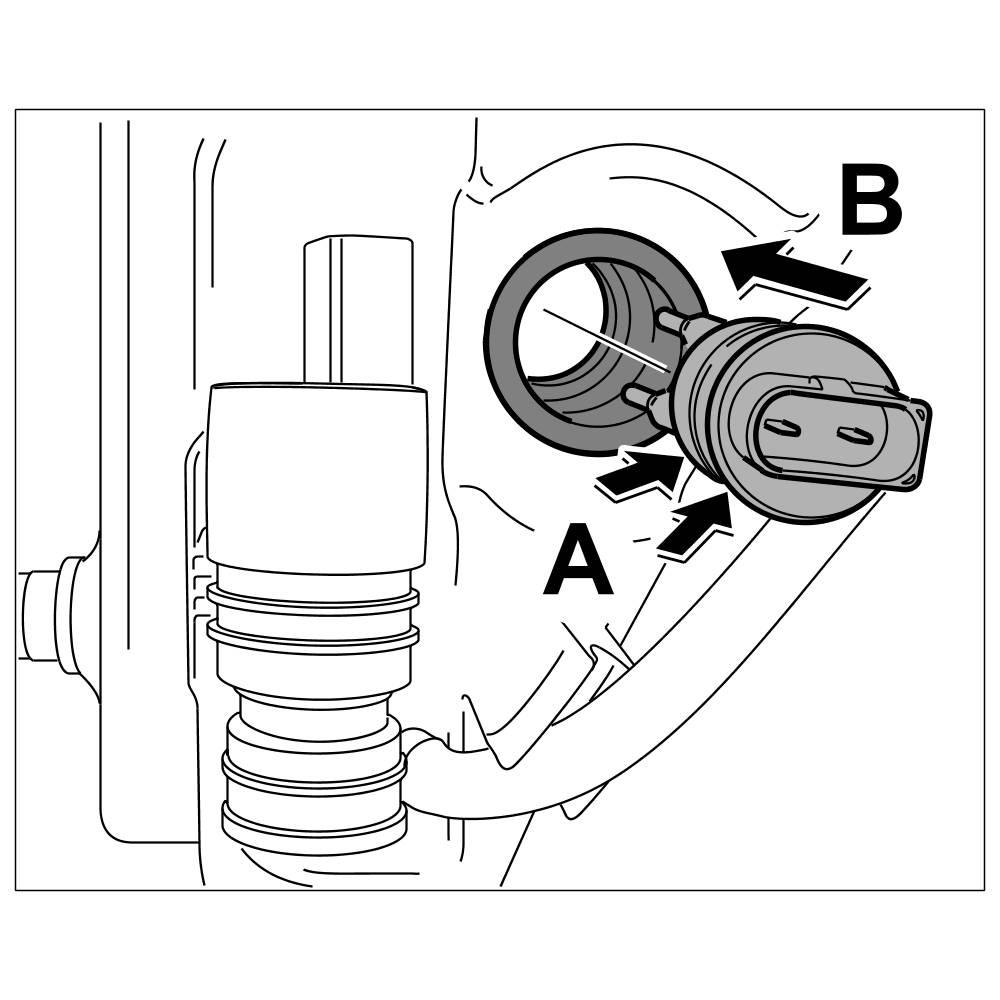

2. Apply a suitable rubber lubricant (tyre mounting paste) to the sealing surface -arrows A- and press the sensor for fluid level display into the rubber seal -arrow B- until the sensor is felt to engage.





Installing sensor for fluid level display

Subsequent work

Install reservoir for windscreen washer. => Removing and installing reservoir for windscreen washer - "Installing" section
