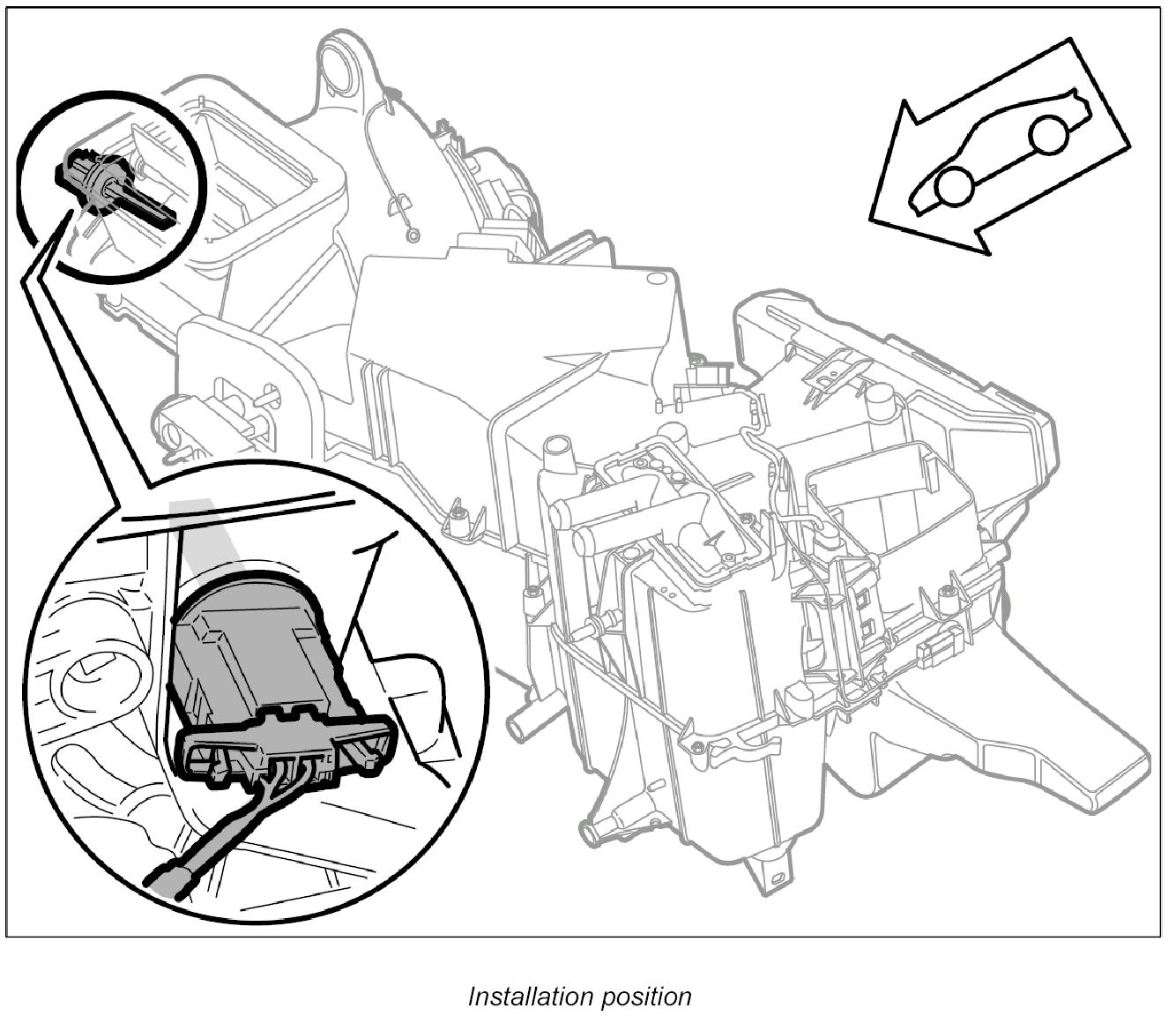

Removing and Installing Outside Temperature Sensor

Removing and installing outside temperature sensor

Removing outside temperature sensor







1. Switch off ignition and remove ignition key.

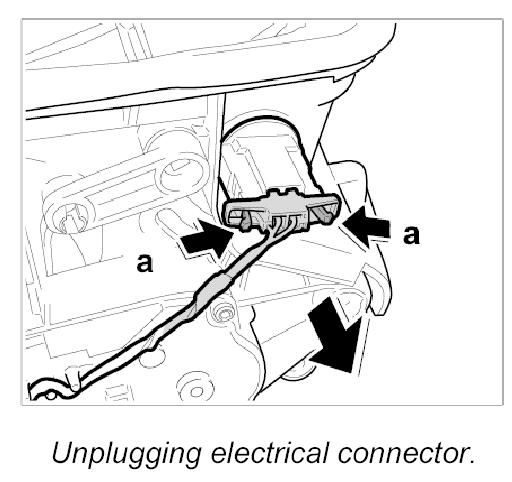

2. Release electrical connector to the temperature sensor -a- and unplug it.

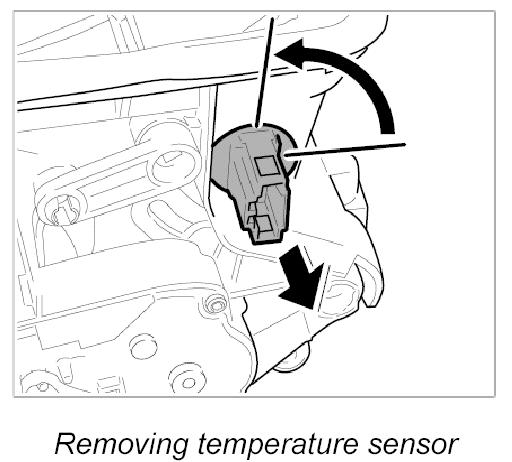

3. Turn temperature sensor through 90° and pull it out of the heating/fresh-air unit.

Installing outside temperature sensor
1. Switch off ignition and remove ignition key.

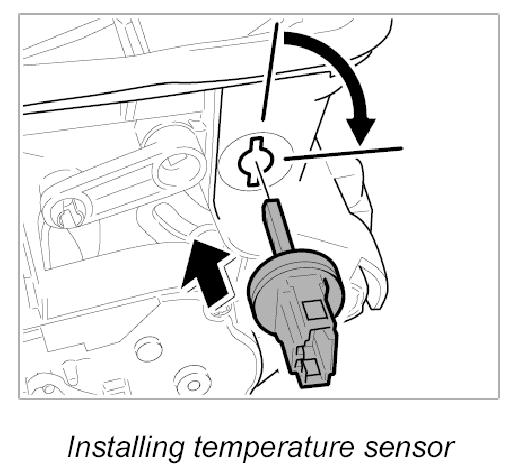

2. Insert temperature sensor into the heating/fresh air unit and turn through 90°.

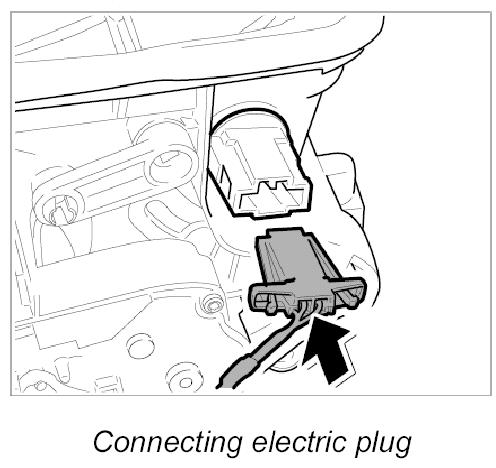

3. Push electrical connector into temperature sensor until it clicks into place.
