Washer Fluid Level Switch: Service and Repair

926719 Removing And Installing Sender For Washer Fluid-level Indicator

Tools







Preliminary work
Remove tank for windscreen washer system.

Removing sender for washer fluid-level indicator

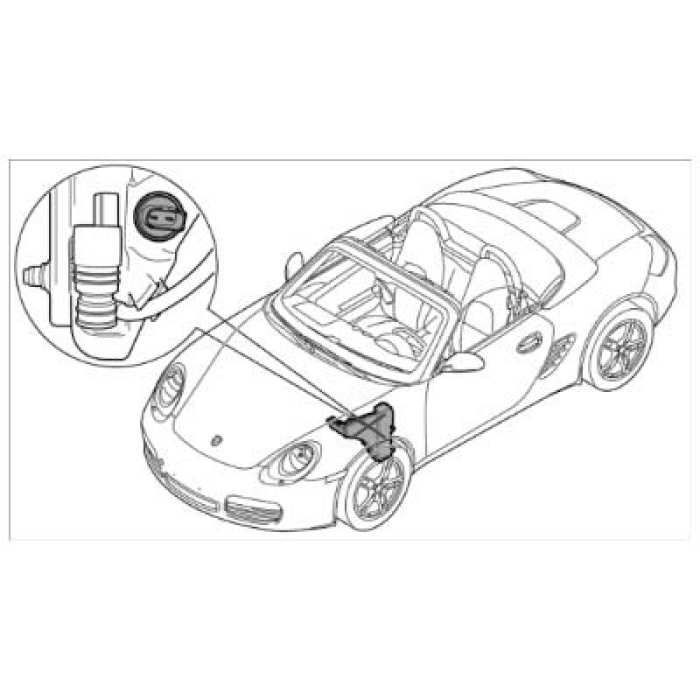

Overview Of Sender For Washer Fluid-level Indicator:

1. Remove sender using the universal disassembly tool NR.21 to lever it out of the rubber seal -arrow A- and remove it -arrow B-.

Removing Sender For Washer Fluid-level Indicator:

2. Remove rubber seal.

Levering Out The Rubber Seal:

Installing sender for washer fluid-level indicator

Installing sensor for fluid level display
1. Apply a suitable rubber lubricant (tyre mounting paste) to the sealing surface -arrows A- and press the rubber seal into the tank -arrow B- until it is felt to engage.

Pressing In Rubber Seal:

2. Apply a suitable rubber lubricant (tyre mounting paste) to the sealing surface -arrows A- and press the sensor for fluid level display into the rubber seal -arrow B- until the sensor is felt to engage.

Installing Sensor For Fluid Level Display:

Subsequent work
Install reservoir for windscreen washer.
