Multiple Junction Connector: Locations

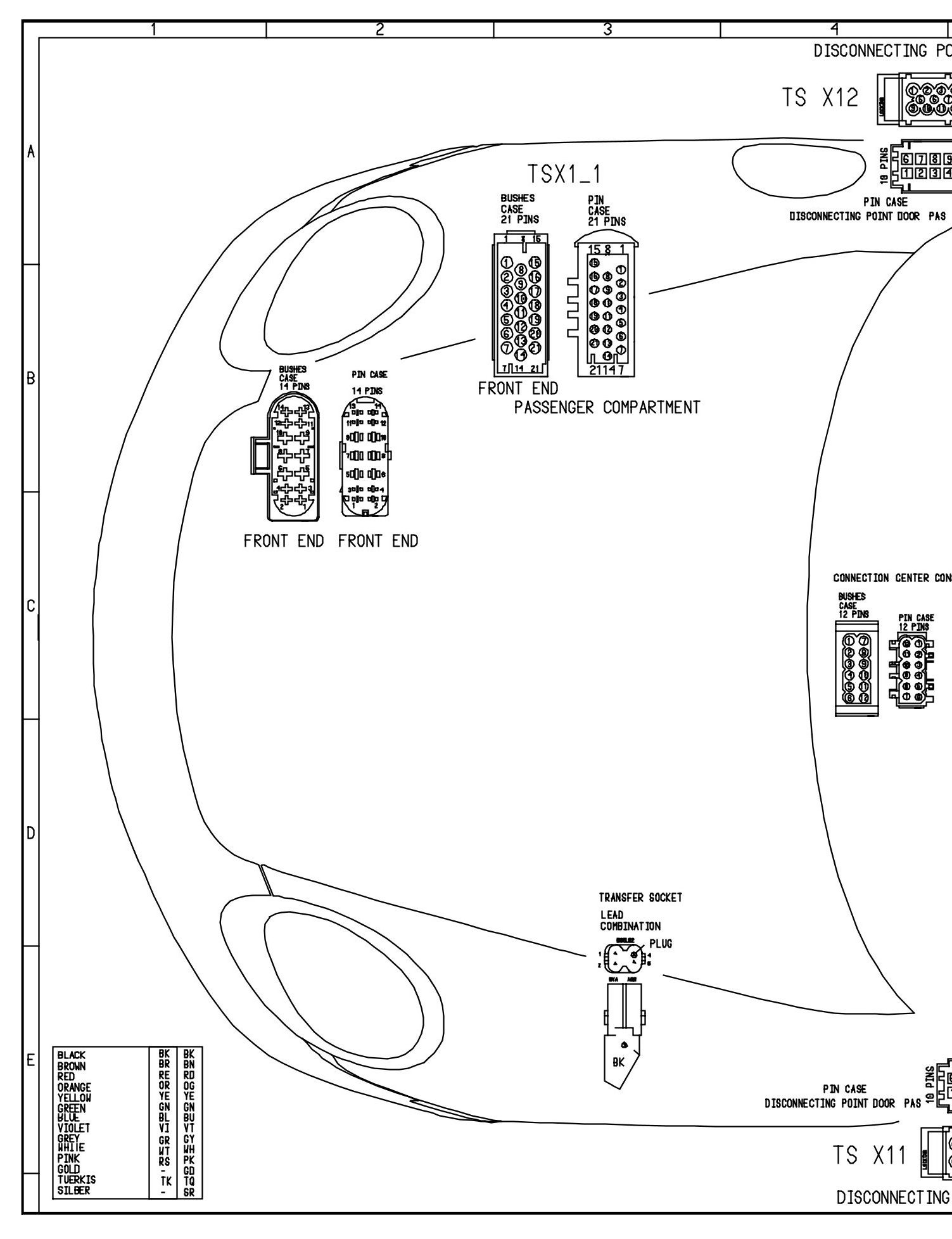

Disconnecting Points Overview 987 - Sheet 30A (Part 1):

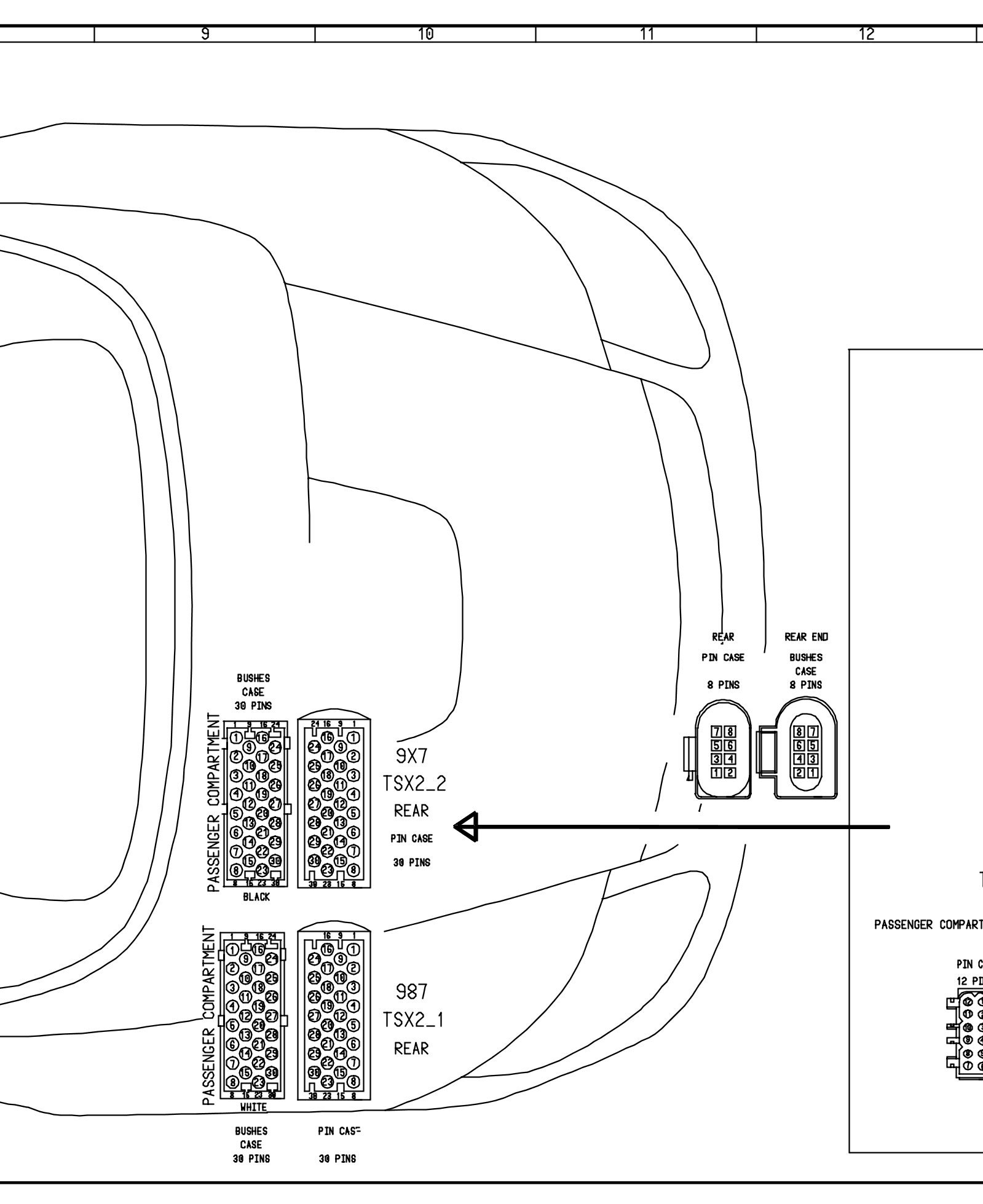

Disconnecting Points Overview 987 - Sheet 30A (Part 2):

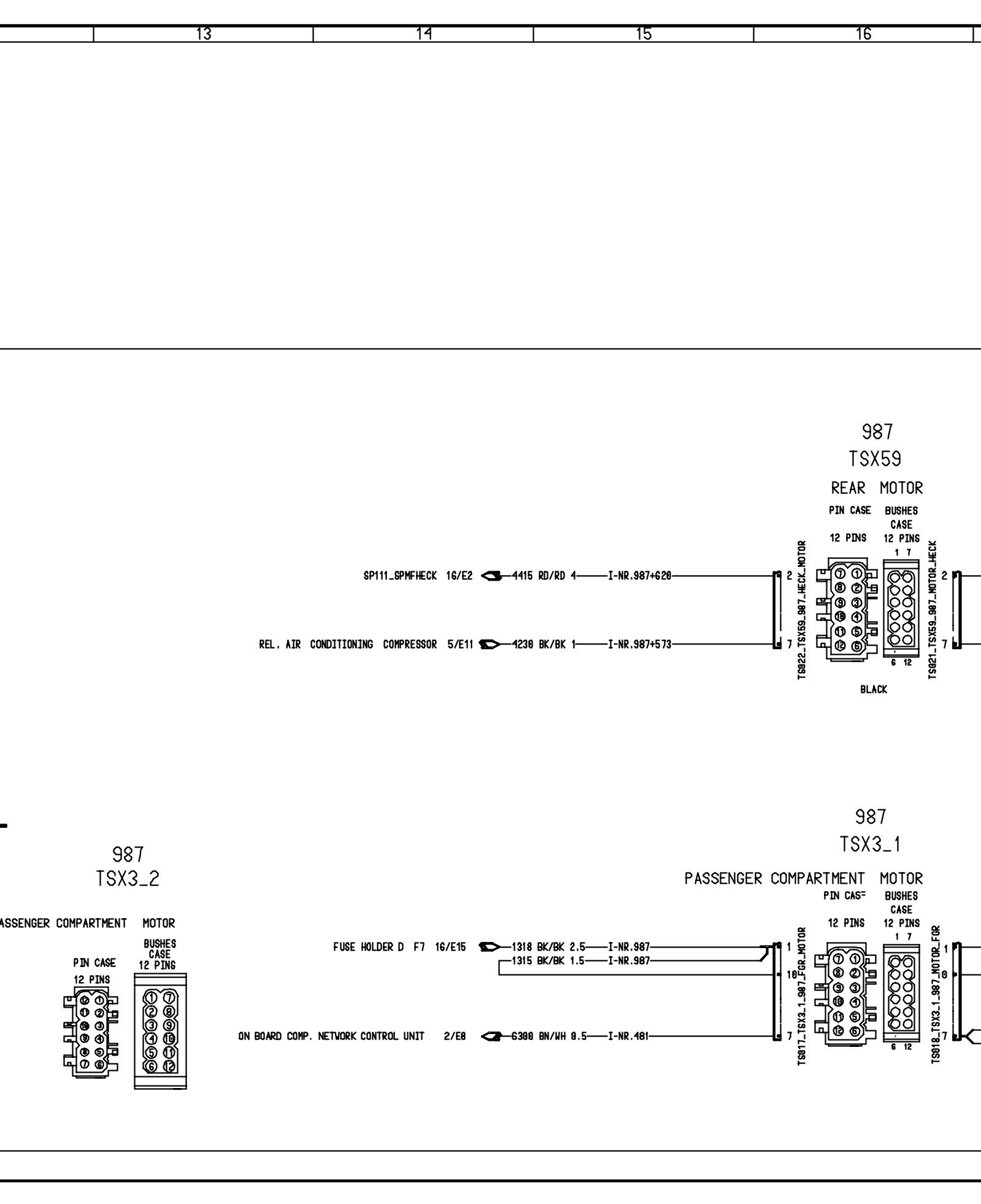

Disconnecting Points Overview 987 - Sheet 30A (Part 3):

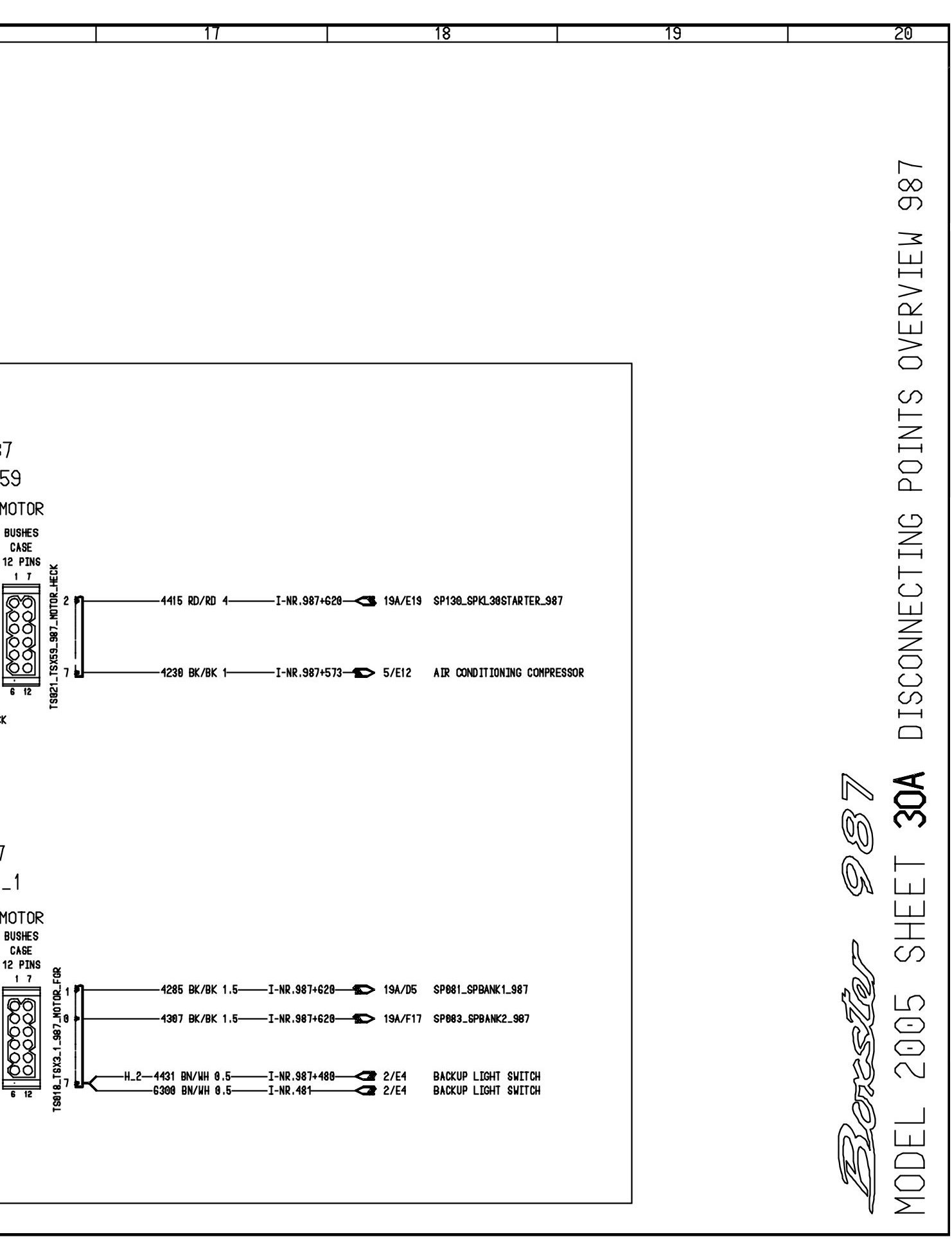

Disconnecting Points Overview 987 - Sheet 30A (Part 4):

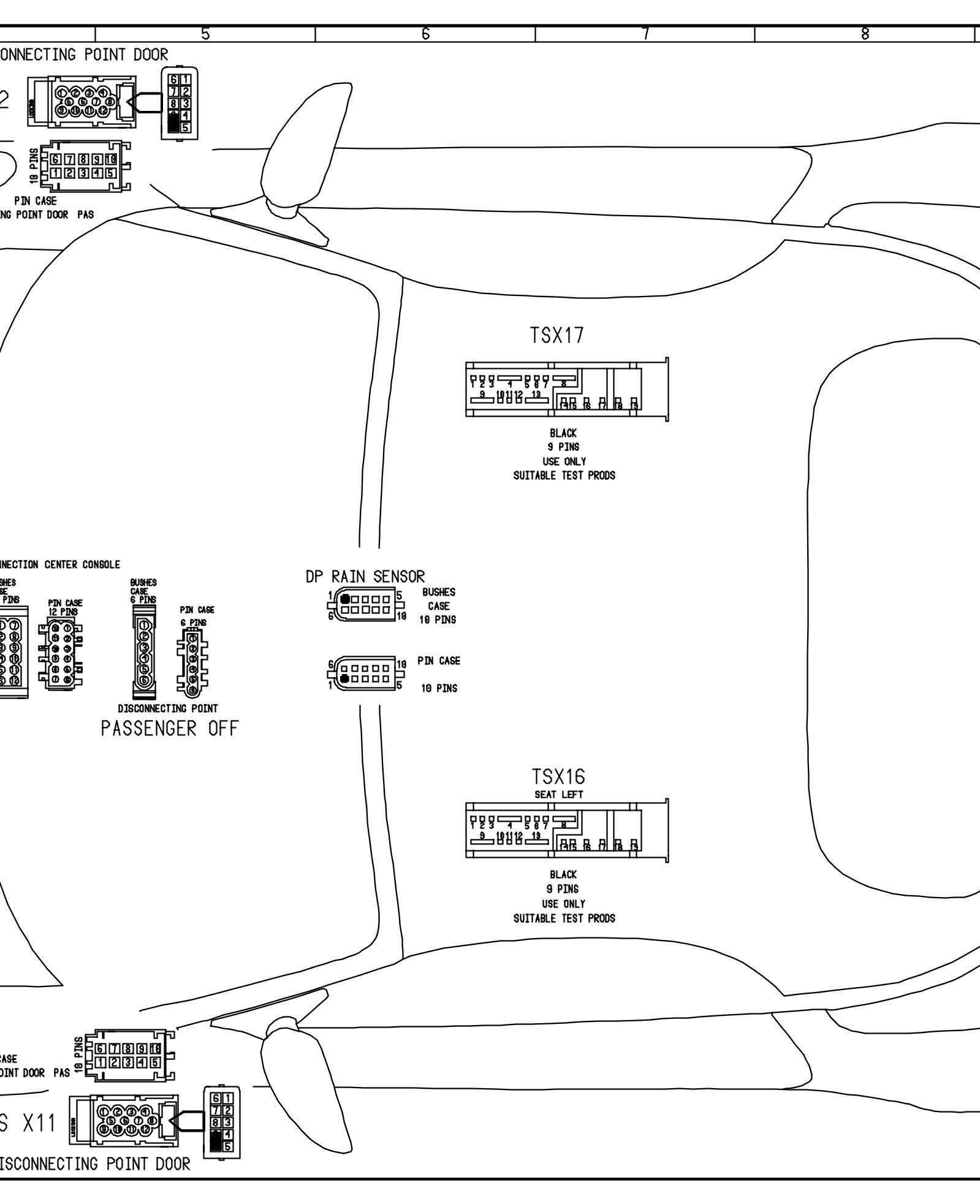

Disconnecting Points Overview 987 - Sheet 30A (Part 5):
