Removal and Replacement



Replacing Remote Control

Disassembling remote control

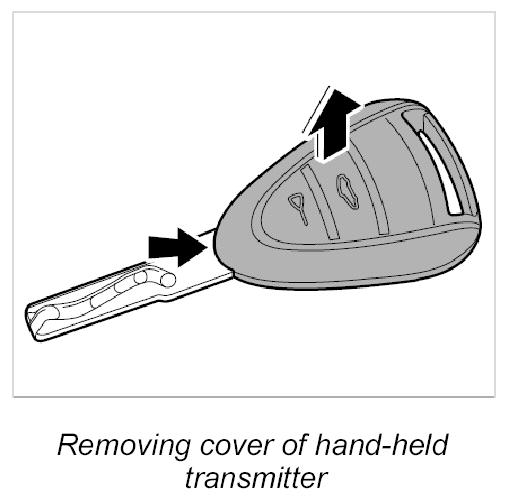

Removing cover of hand-held transmitter







1. Insert a small screwdriver between the cover and the bottom part of the hand-held transmitter -arrow- and carefully lift off the cover.

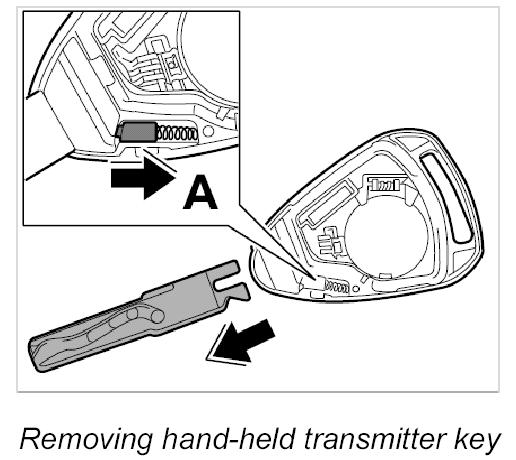

Removing hand-held transmitter key







1. Push the sliding latch back using a small screwdriver -arrow A- and pull the key out of the bottom part.

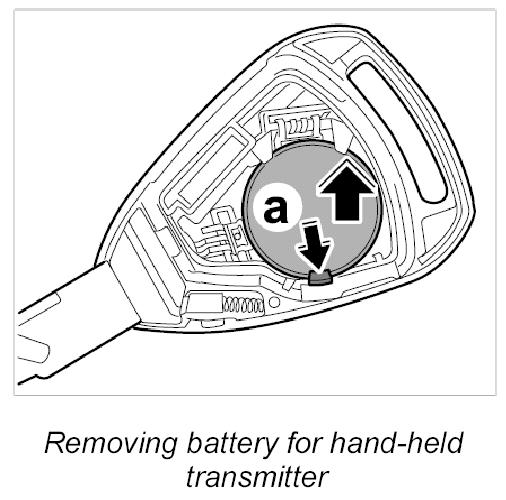

Removing battery for hand-held transmitter







1. Loosen the locking tab -arrow a- and remove the battery.

Assembling remote control

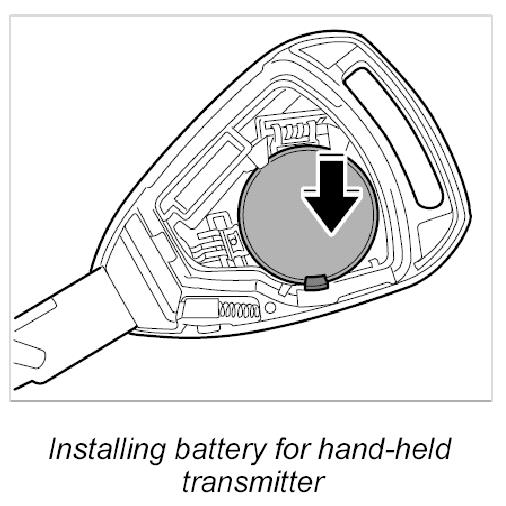

Installing battery for hand-held transmitter







1. Insert battery and press it in until the locking tab clicks into place.

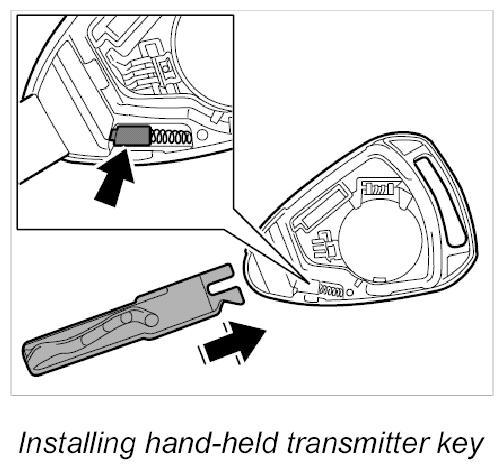

Installing hand-held transmitter key


INFORMATION: The lock code from IPAS must be specified when ordering a new key.







1. Push the key into the bottom part until the sliding latch -arrow- engages perceptibly.

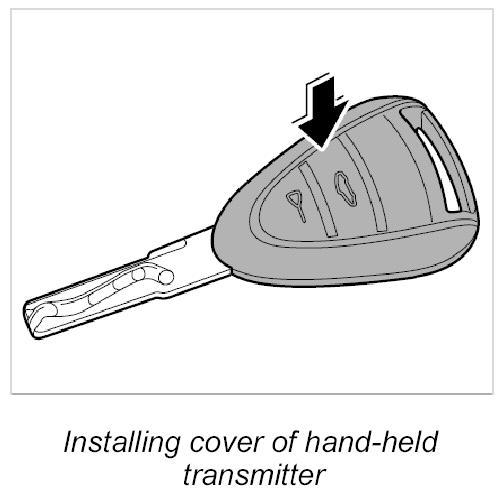

Installing cover of hand-held transmitter







1. Position the cover on the bottom part of the hand-held transmitter and press together until the cover clicks into place.
