Tightening Torques For Front Axle

TIGHTENING TORQUES FOR FRONT AXLE





Tightening torques for cross member/side member (one component)





Tightening torques for diagonal brace





Tightening torques for axle strut








Tightening torques for spring strut

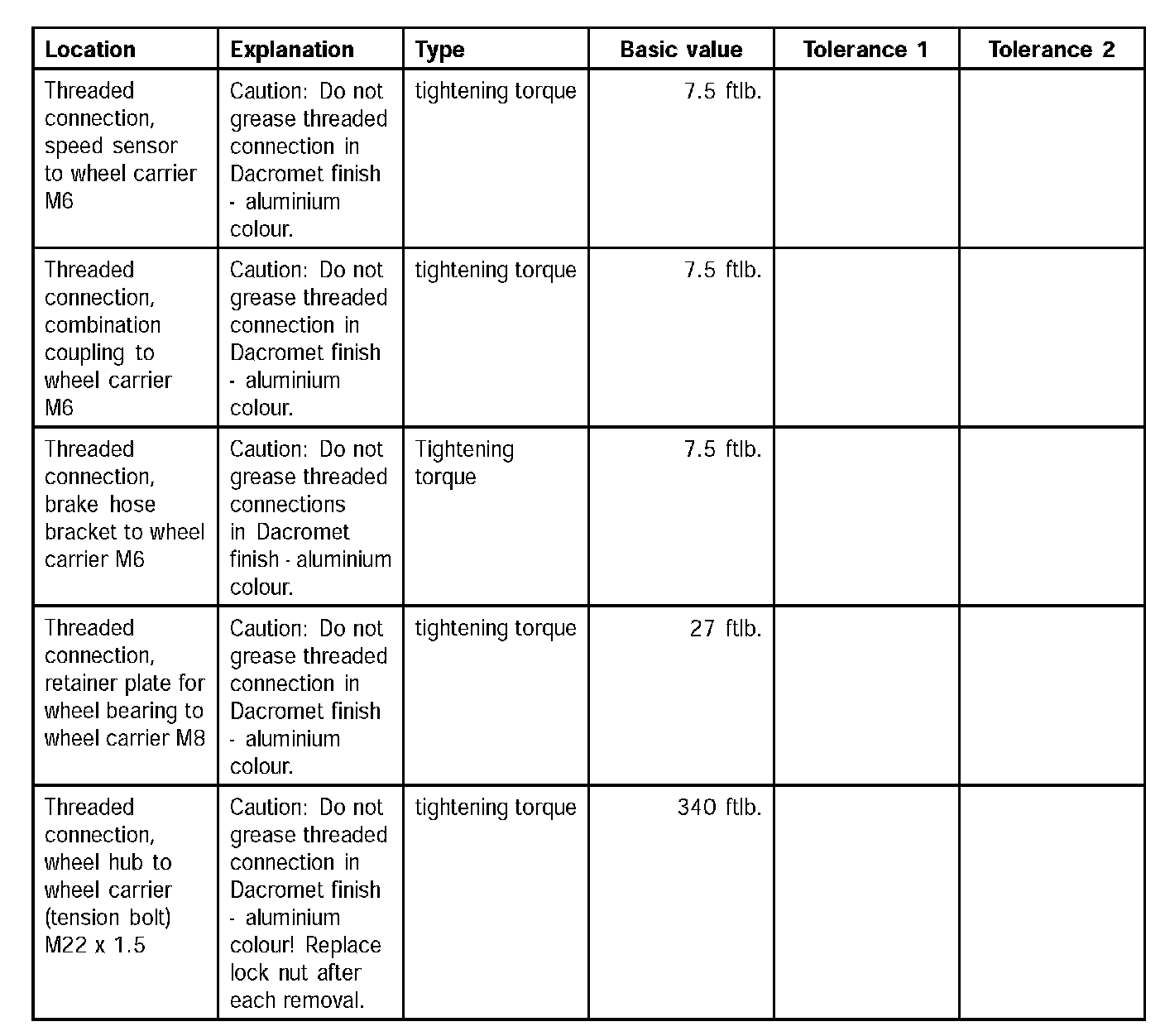

Tightening torques for wheel carrier








Tightening torques for stabilizer








Tightening torques for steering





Tightening torques for wheel mounting
