Relay Box: Locations

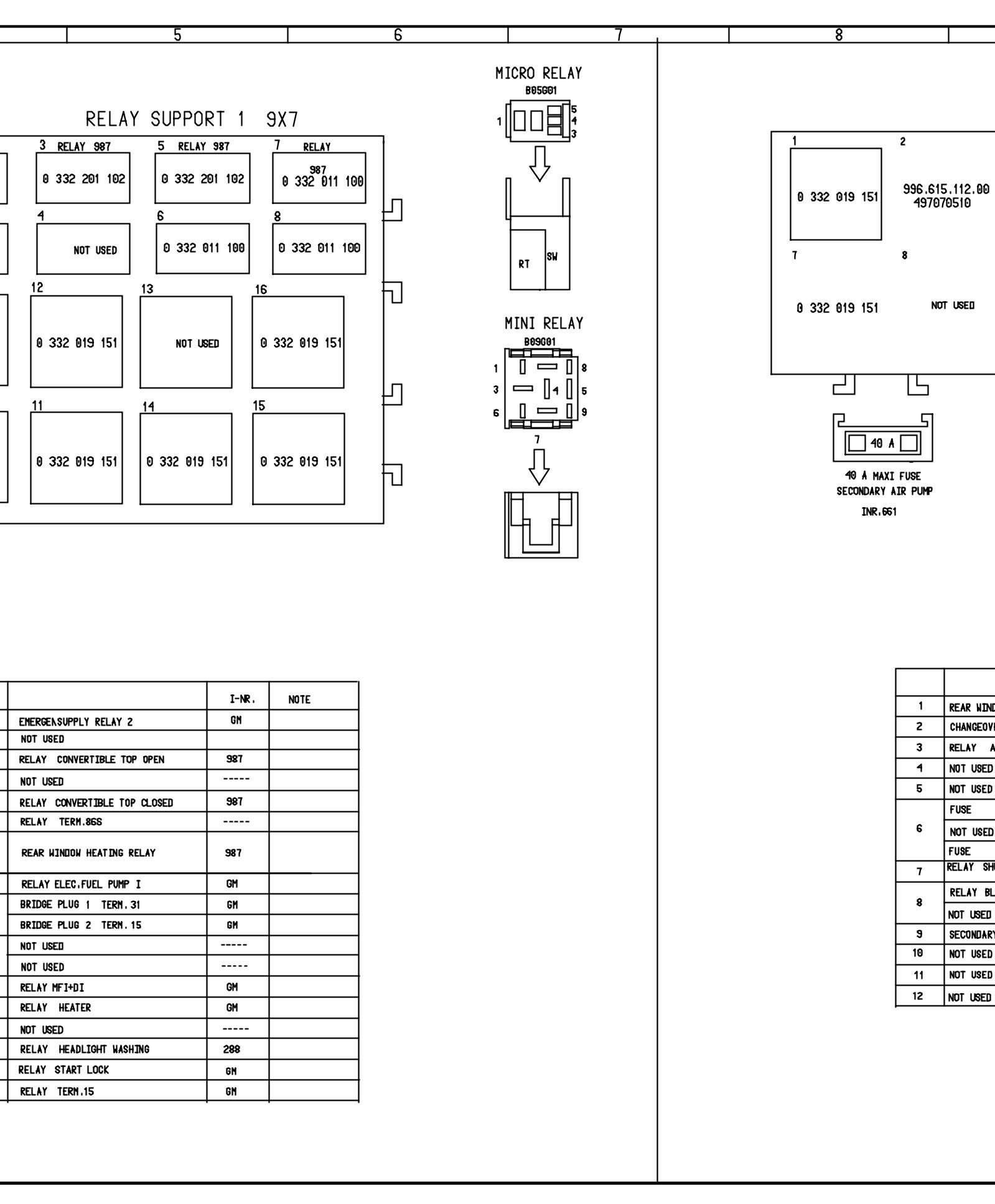

Assignments Relay Support - Sheet 32 (Part 1):

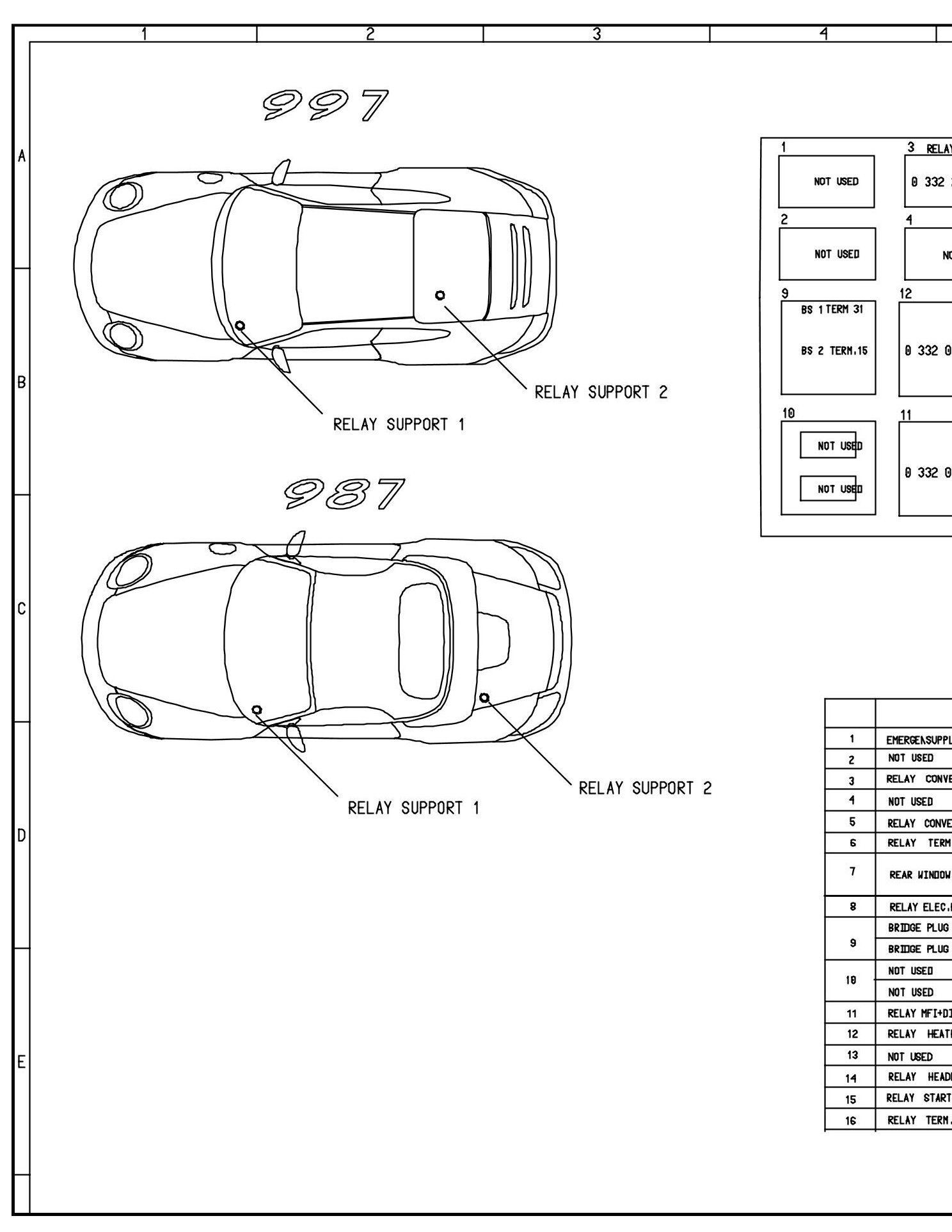

Assignments Relay Support - Sheet 32 (Part 2):

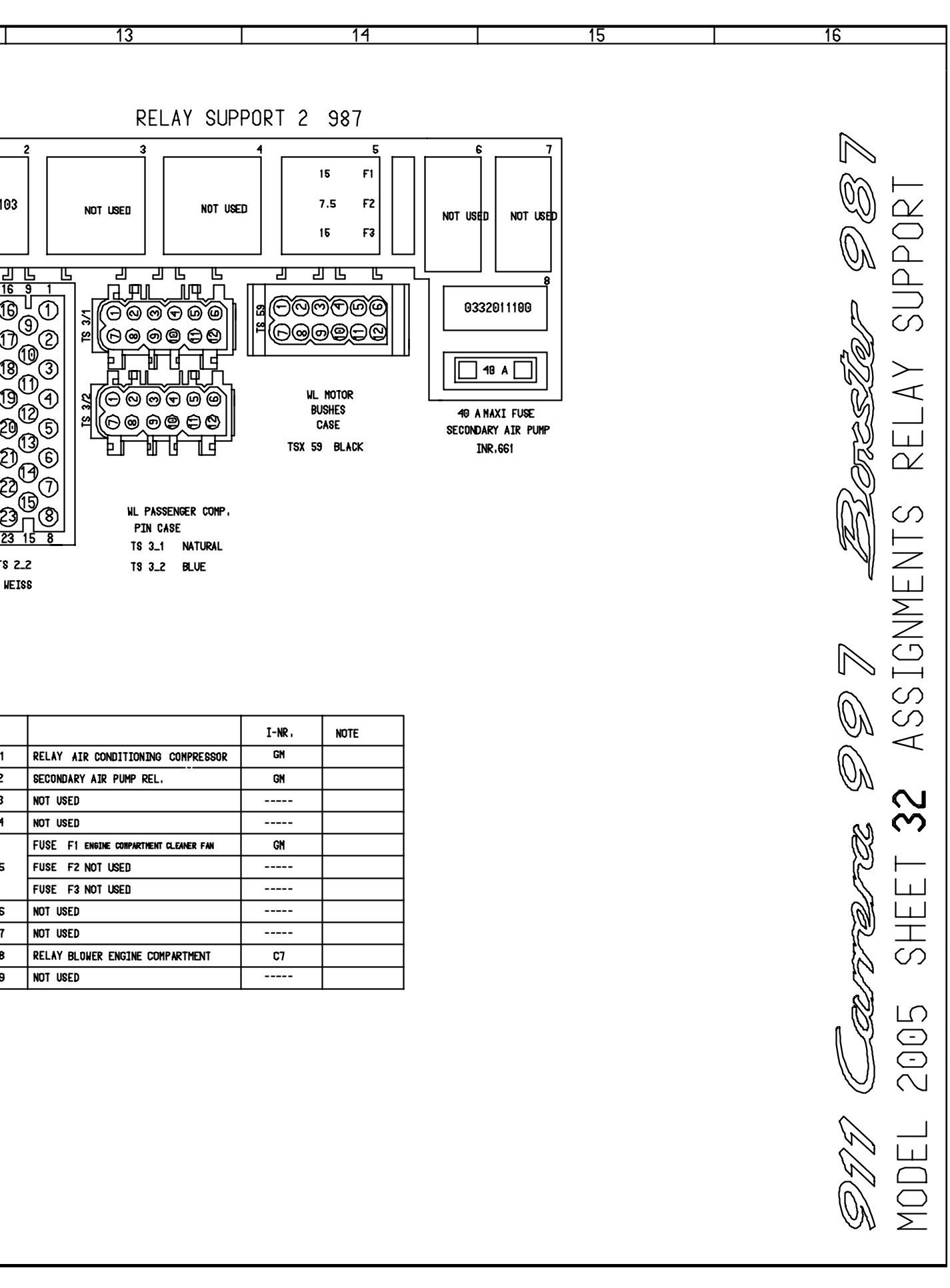

Assignments Relay Support - Sheet 32 (Part 3):

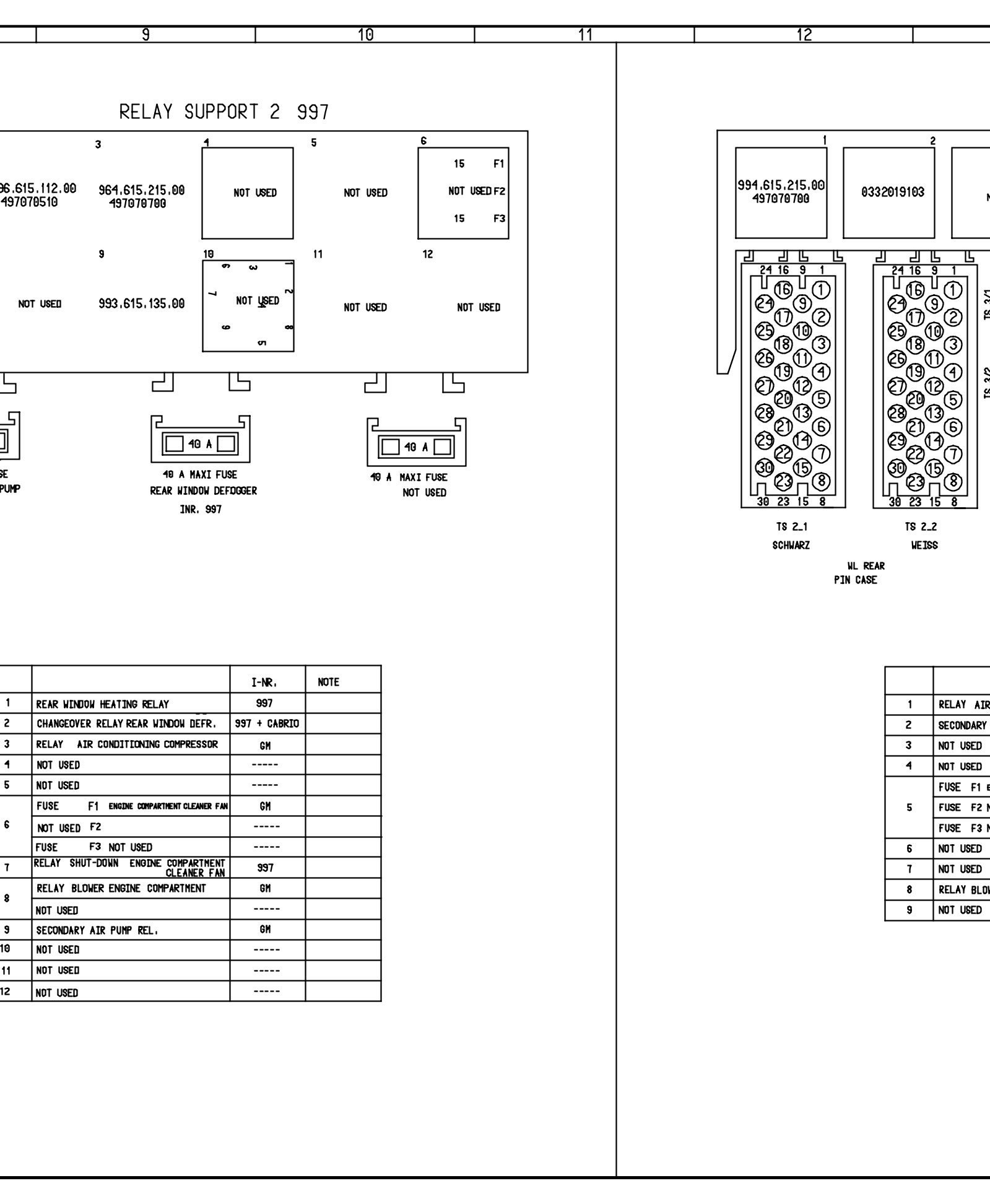

Assignments Relay Support - Sheet 32 (Part 4):
