Connector Assignment

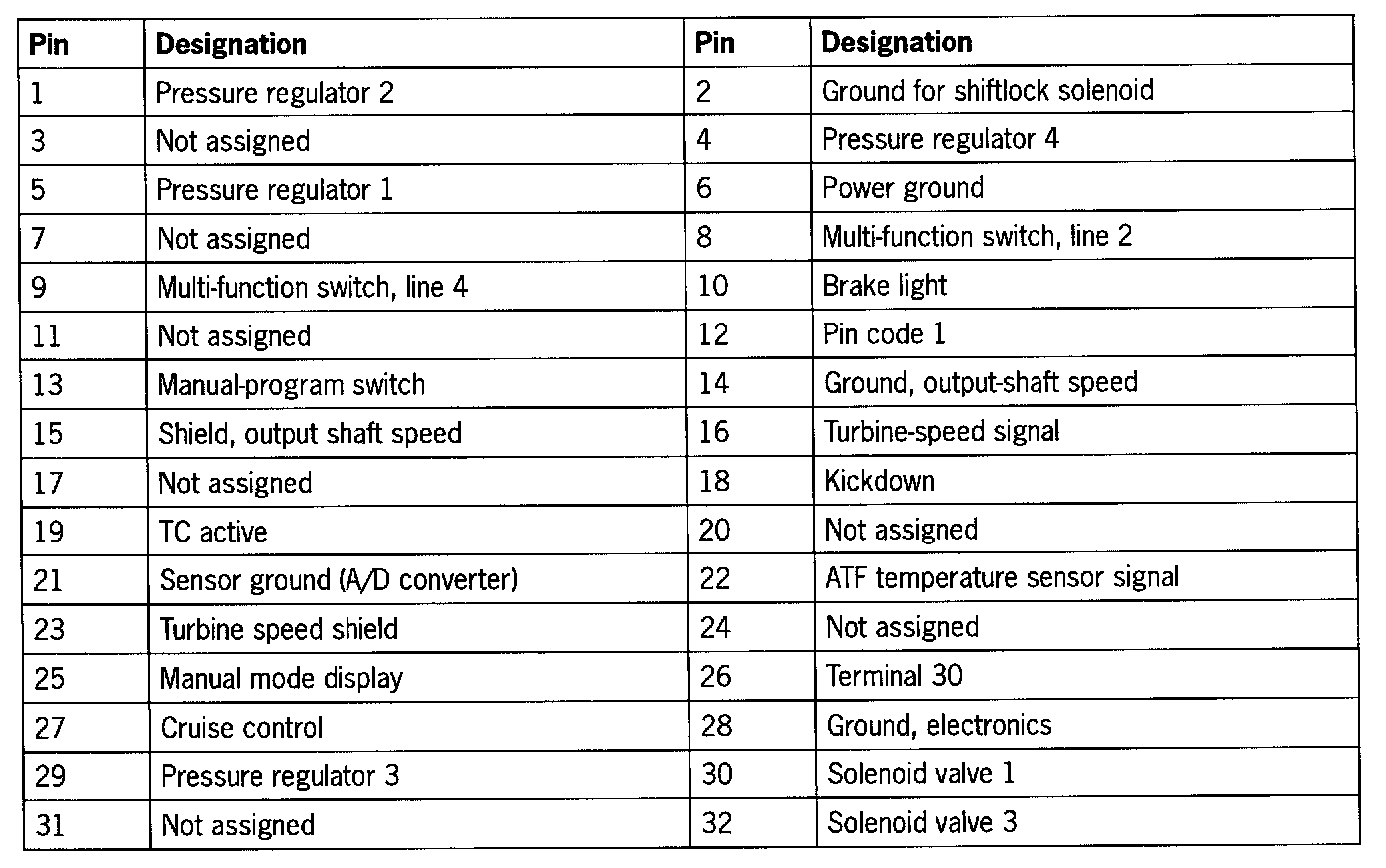

Connector AssignmentControl modulePin 1 - 32:

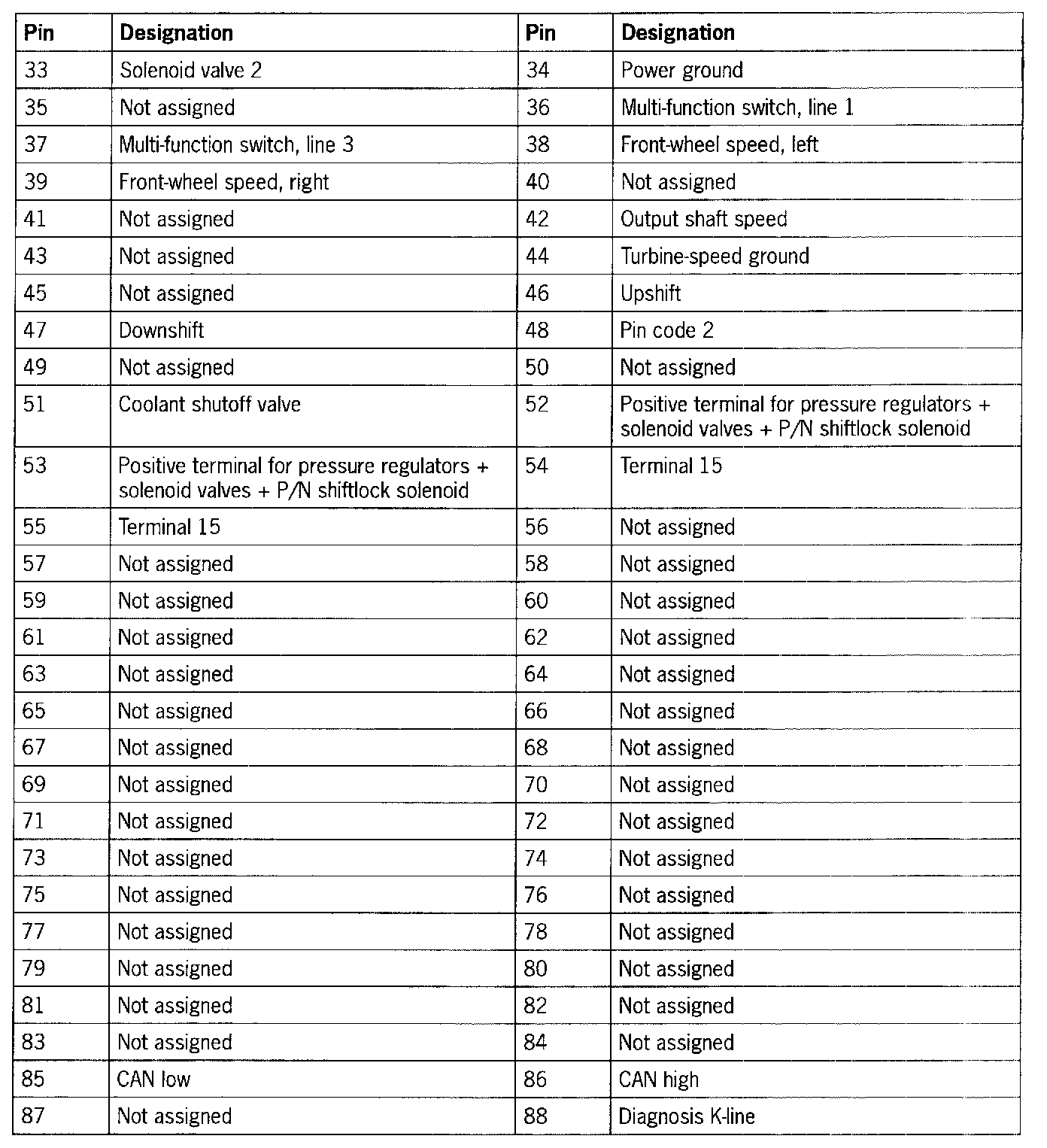

Pin 33 - 88:
Transmission connectorTransmission socketPin 1 - 16:
