Connector Views

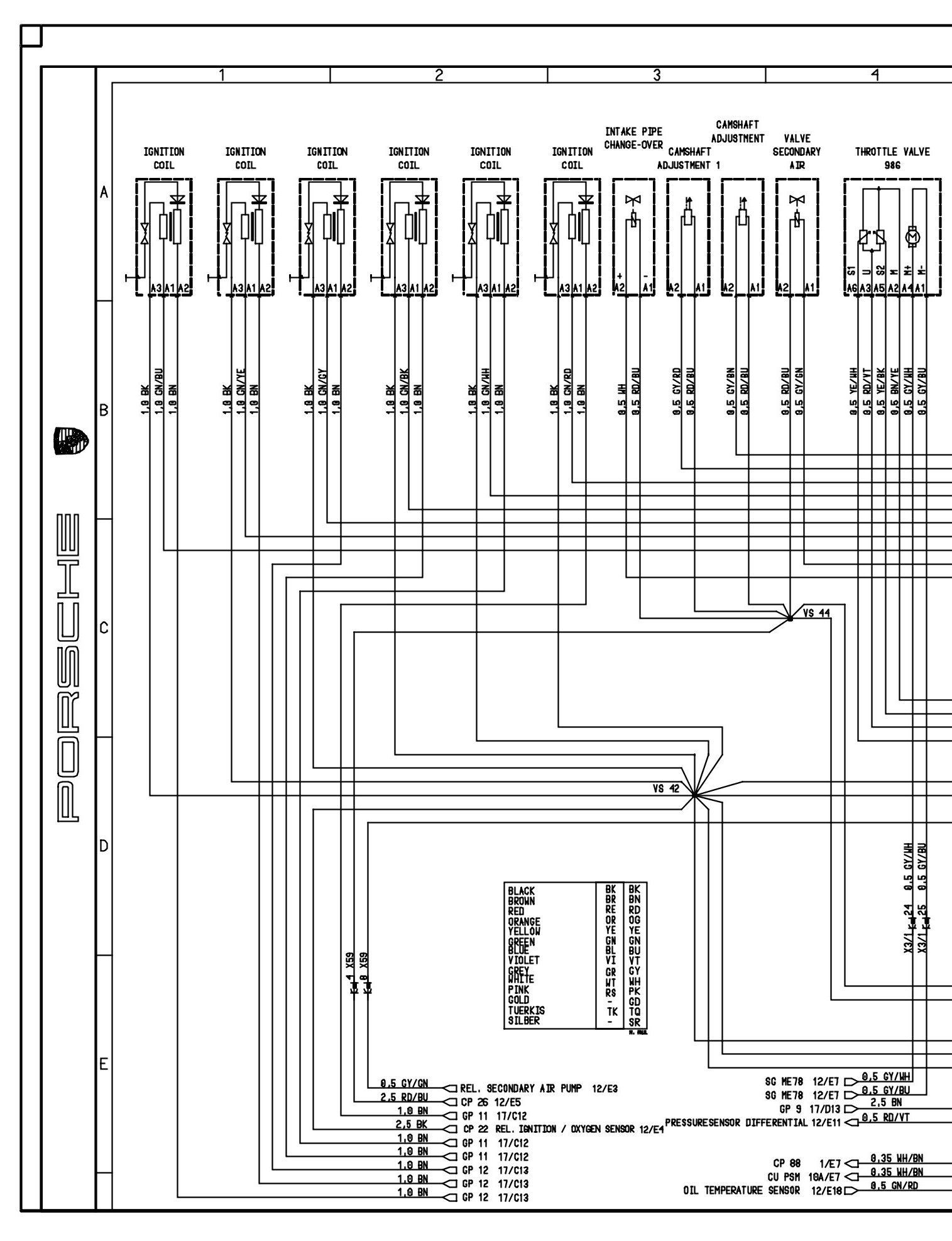

DME Motorelektronic - Sheet 12A (Part 1):

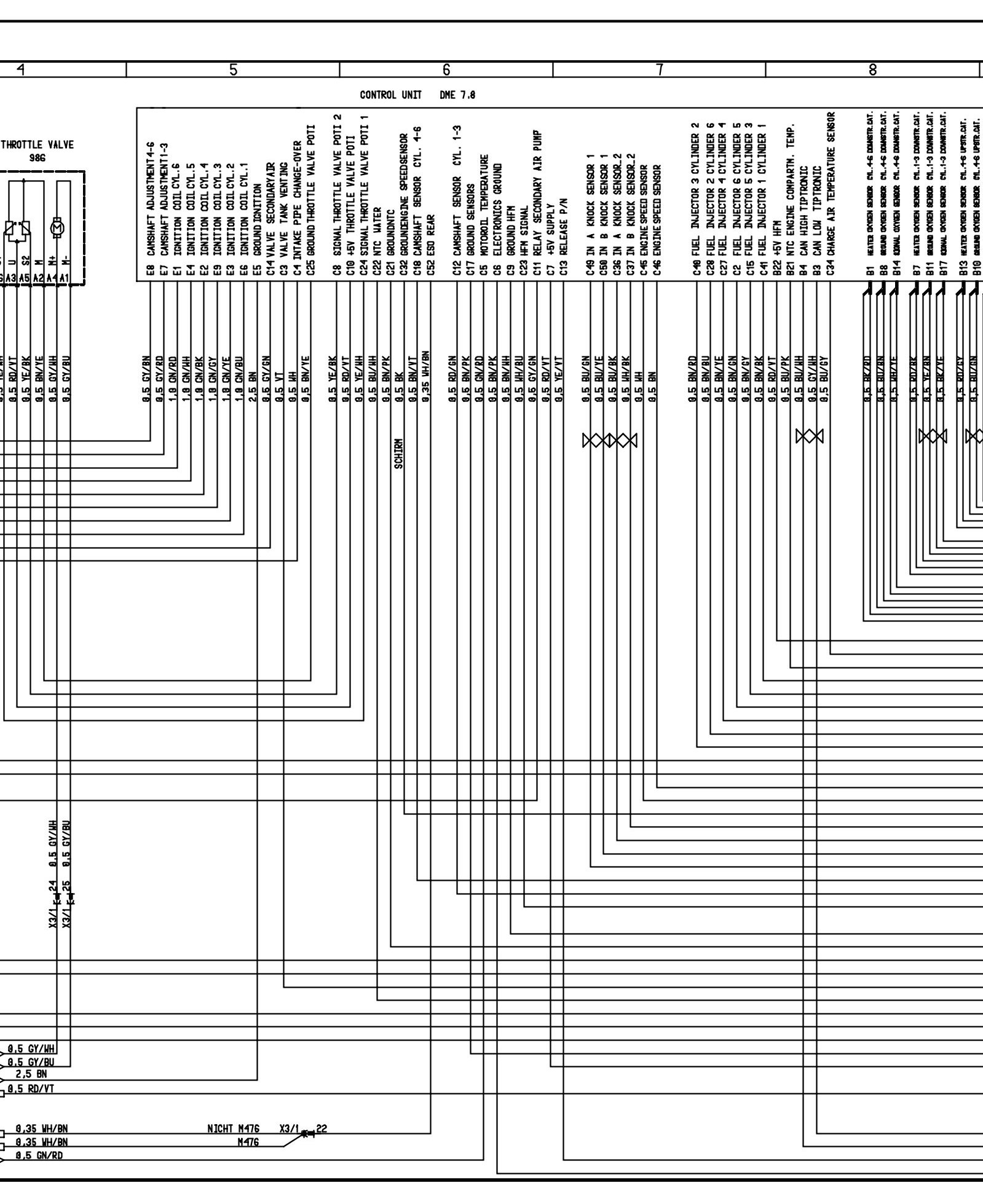

DME Motorelektronic - Sheet 12A (Part 2):

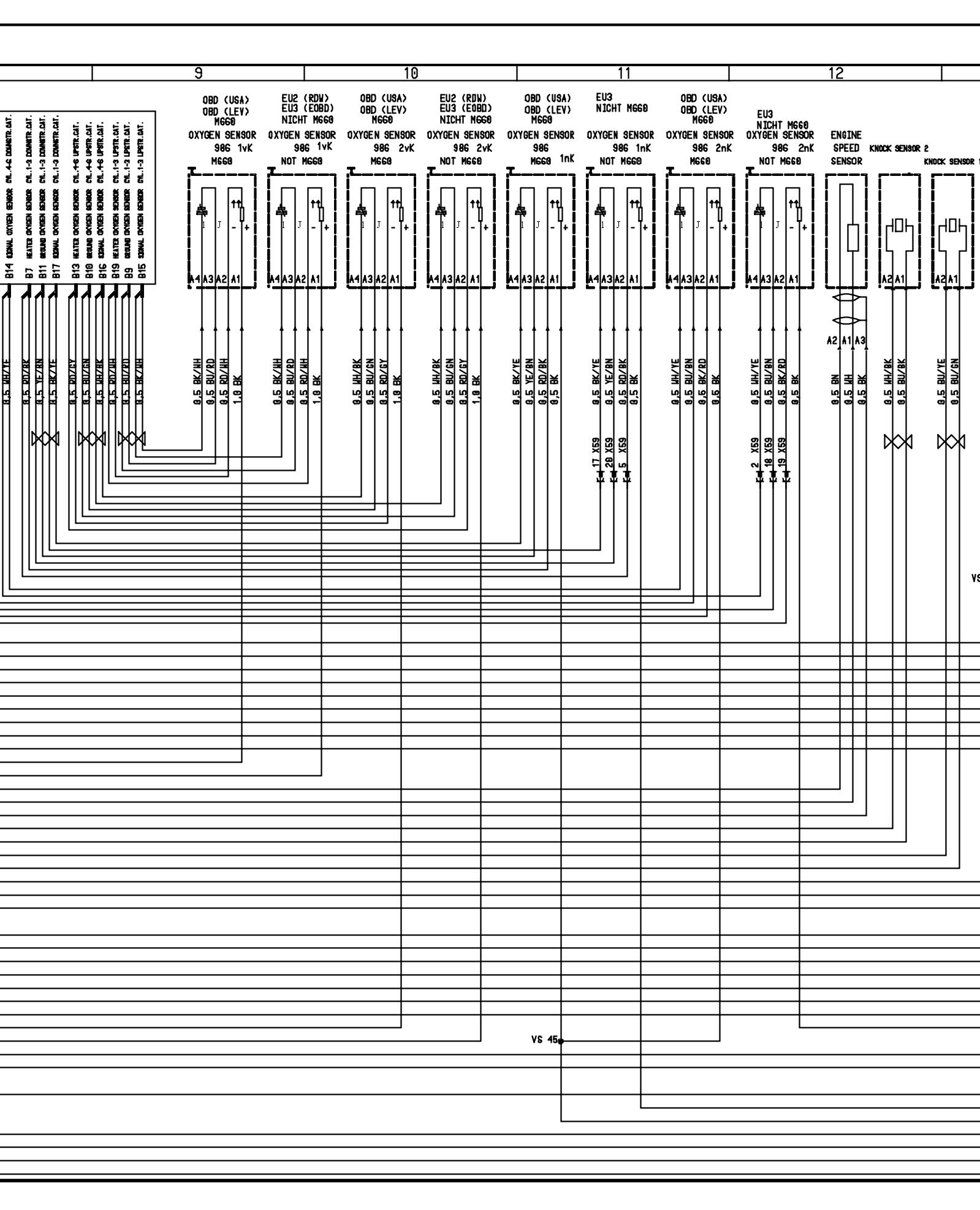

DME Motorelektronic - Sheet 12A (Part 3):

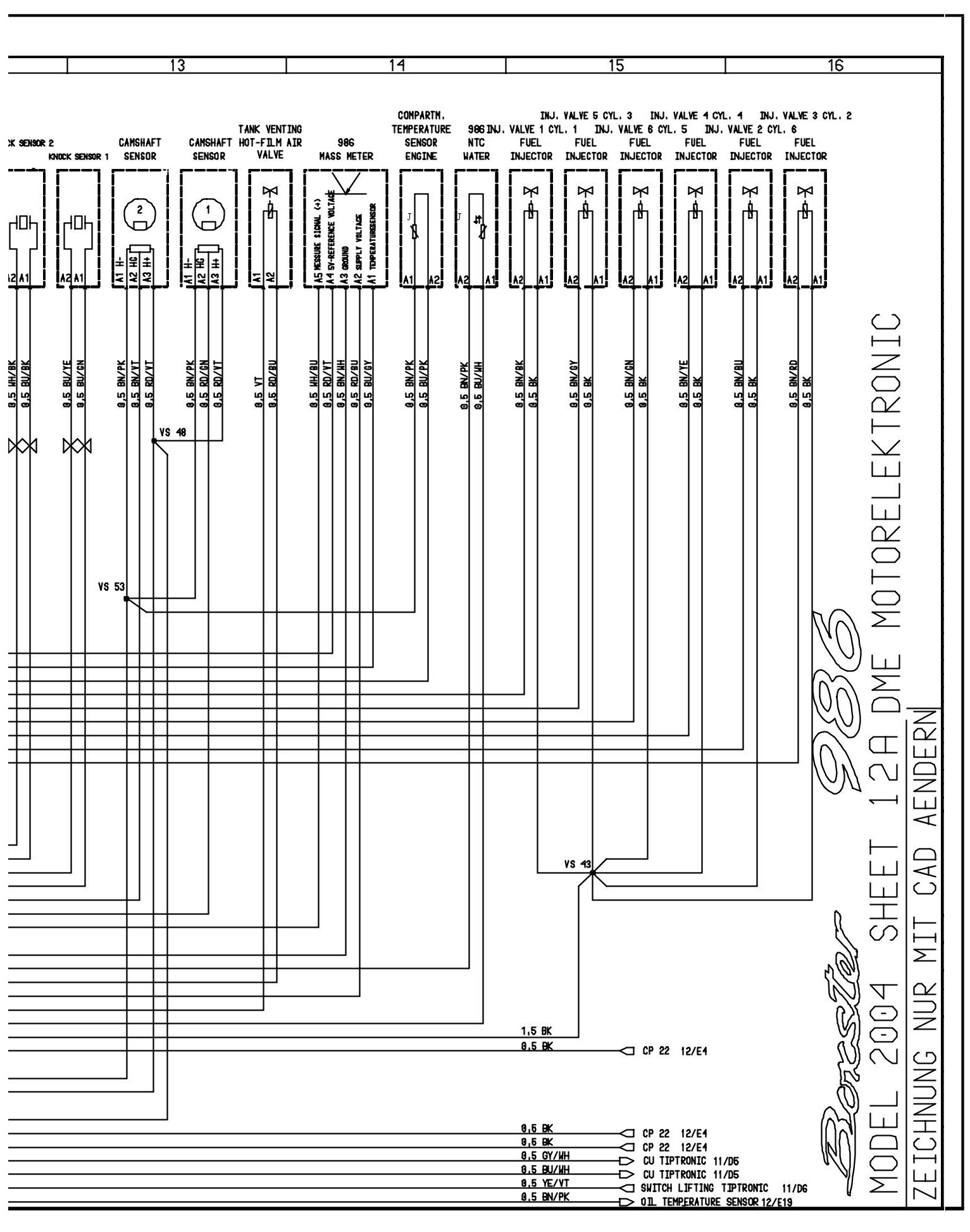

DME Motorelektronic - Sheet 12A (Part 4):
