Connector Locations

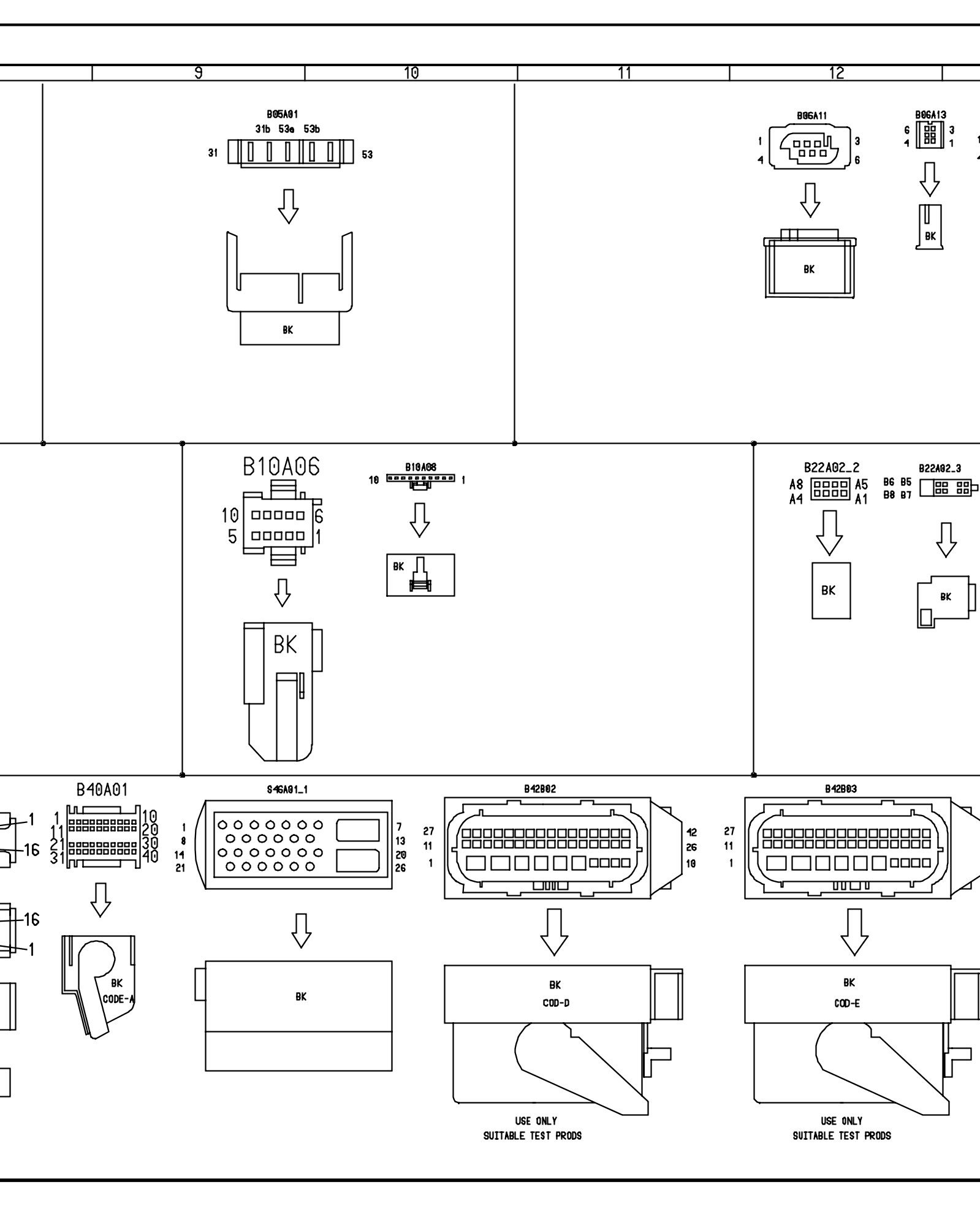

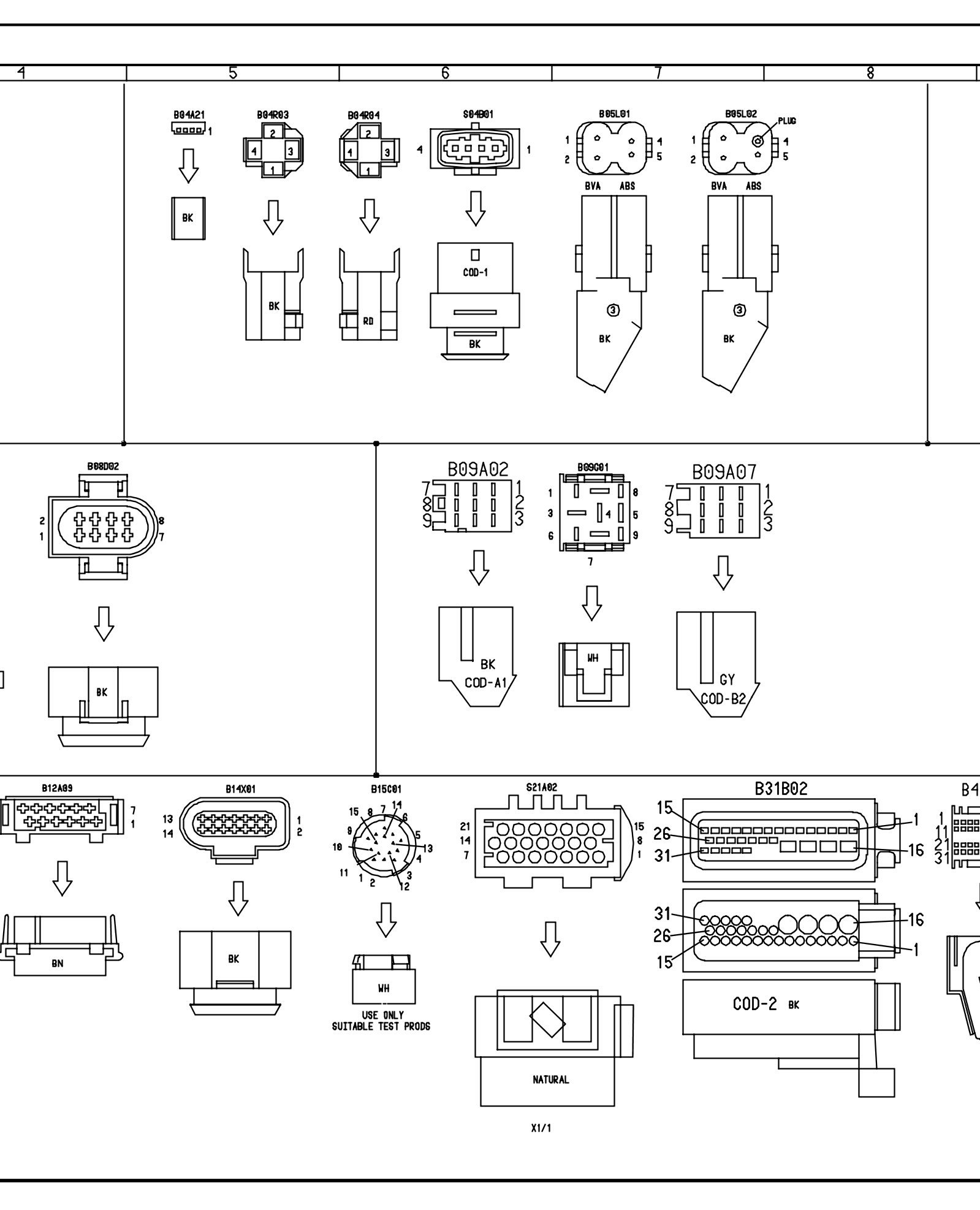

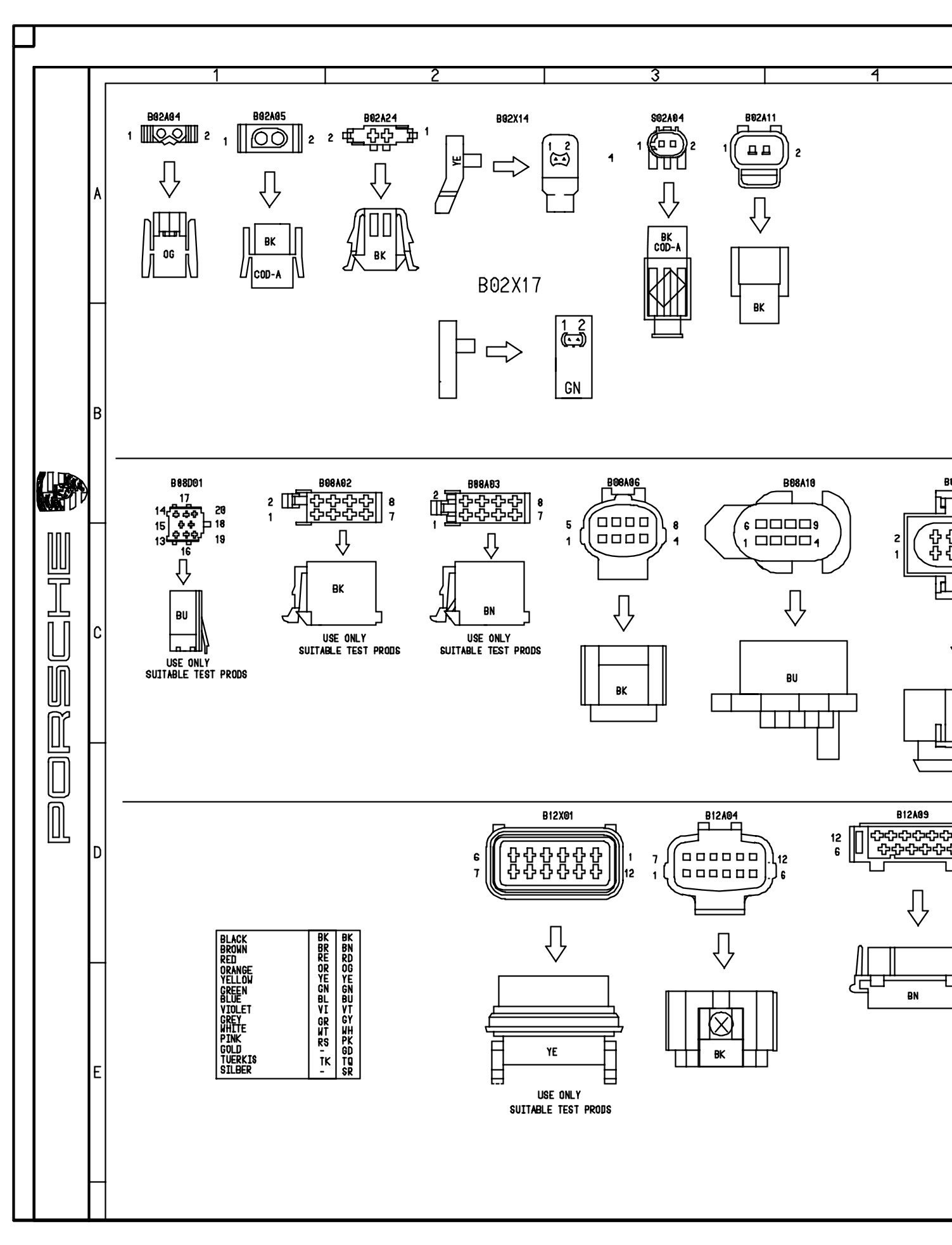

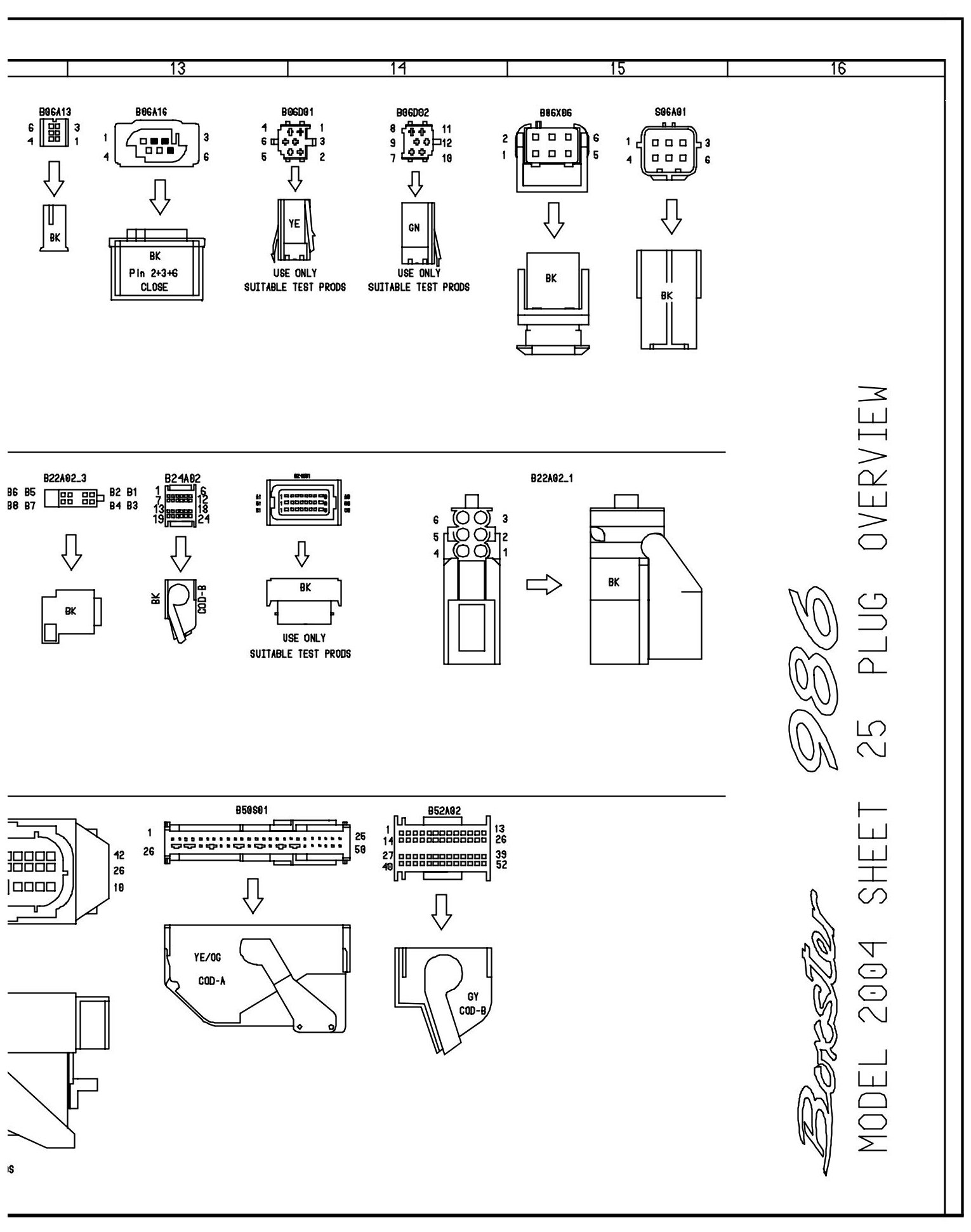

Plug Overview - Sheet 25 (Part 1):



Plug Overview - Sheet 25 (Part 2):



Plug Overview - Sheet 25 (Part 3):



Plug Overview - Sheet 25 (Part 4):
