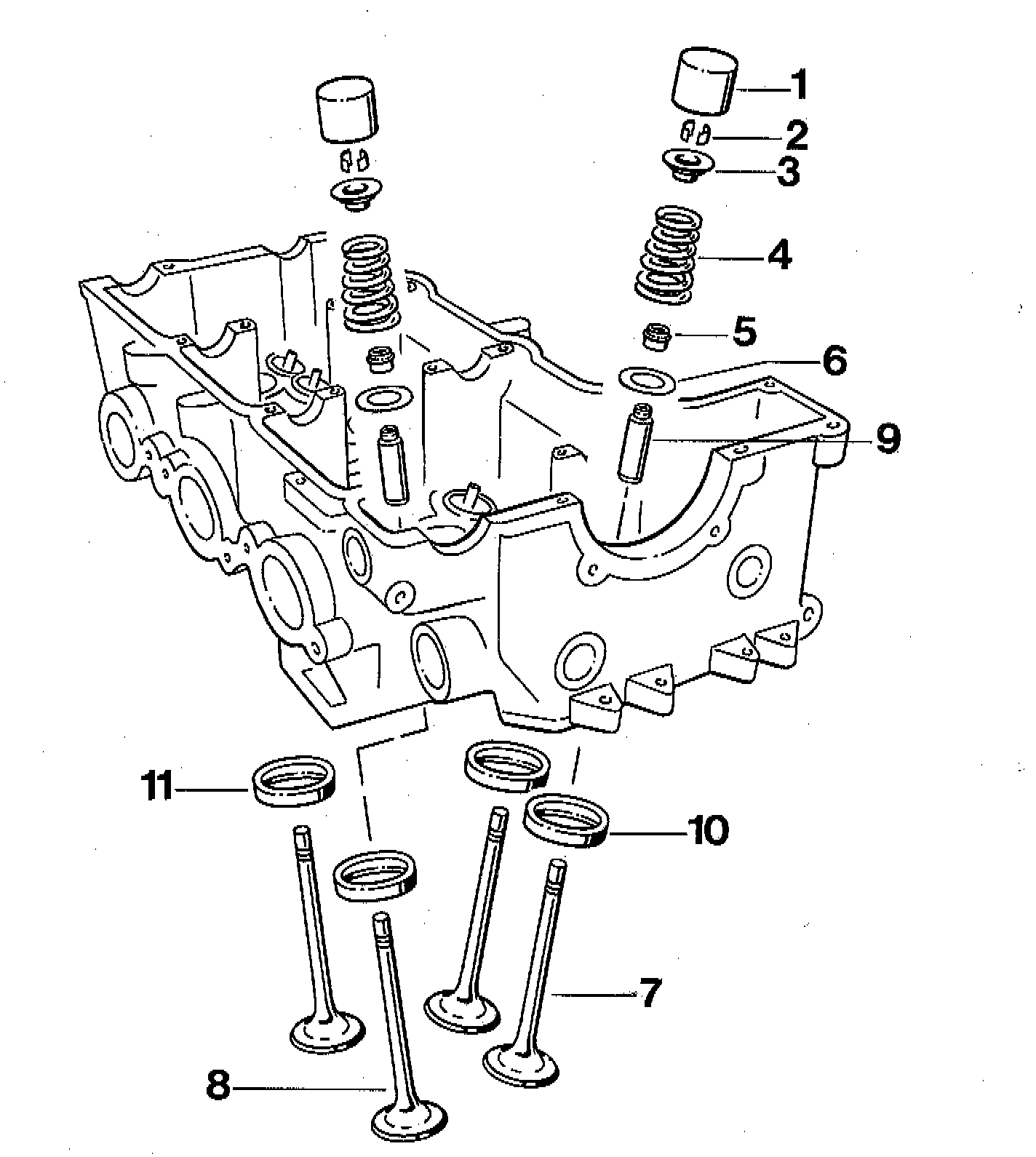

Cylinder Head Assembly

LEGEND
1 Hydraulic Valve Lifter
2 Valve Collet
3 Spring Seat
4 Valve Spring
5 Valve-stem Seal
6 Valve Spring Support Disc
7 Inlet Valve
8 Outlet Valve
9 Valve Guide
10 Valve Seat Ring, Inlet
11 Valve Seat Ring, Outlet
