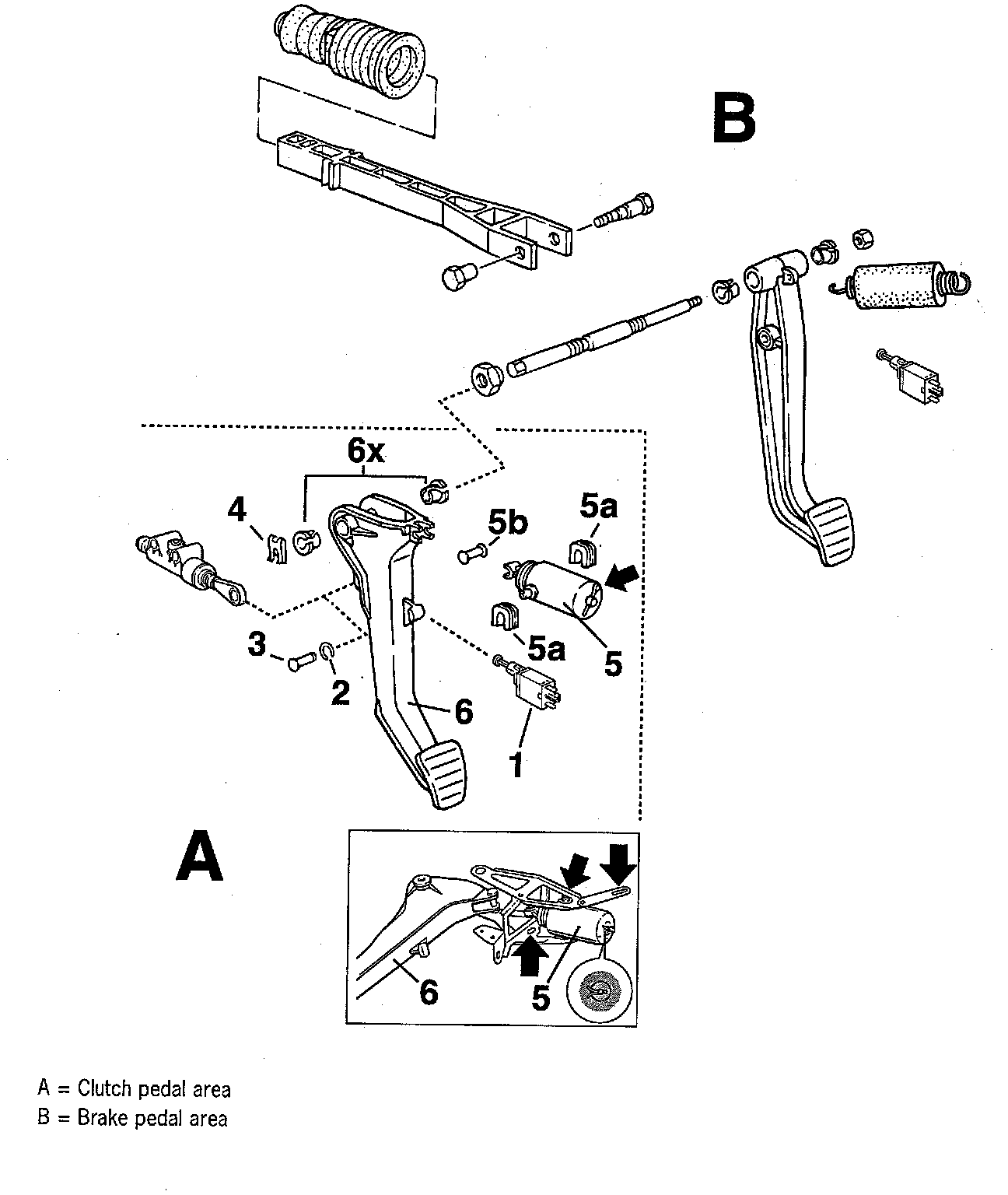

Clutch Pedal Assembly









LEGEND
1 Switch
2 Retaining Clip
3 Pin
4 Clamp
5a Boost Spring Bearing
5b Pin
6 Clutch Pedal Lever
6x Bushing
