Technical Data For Engines M 96/23 and M 96/24



Technical Data For Engines M 96/23 And M 96/24

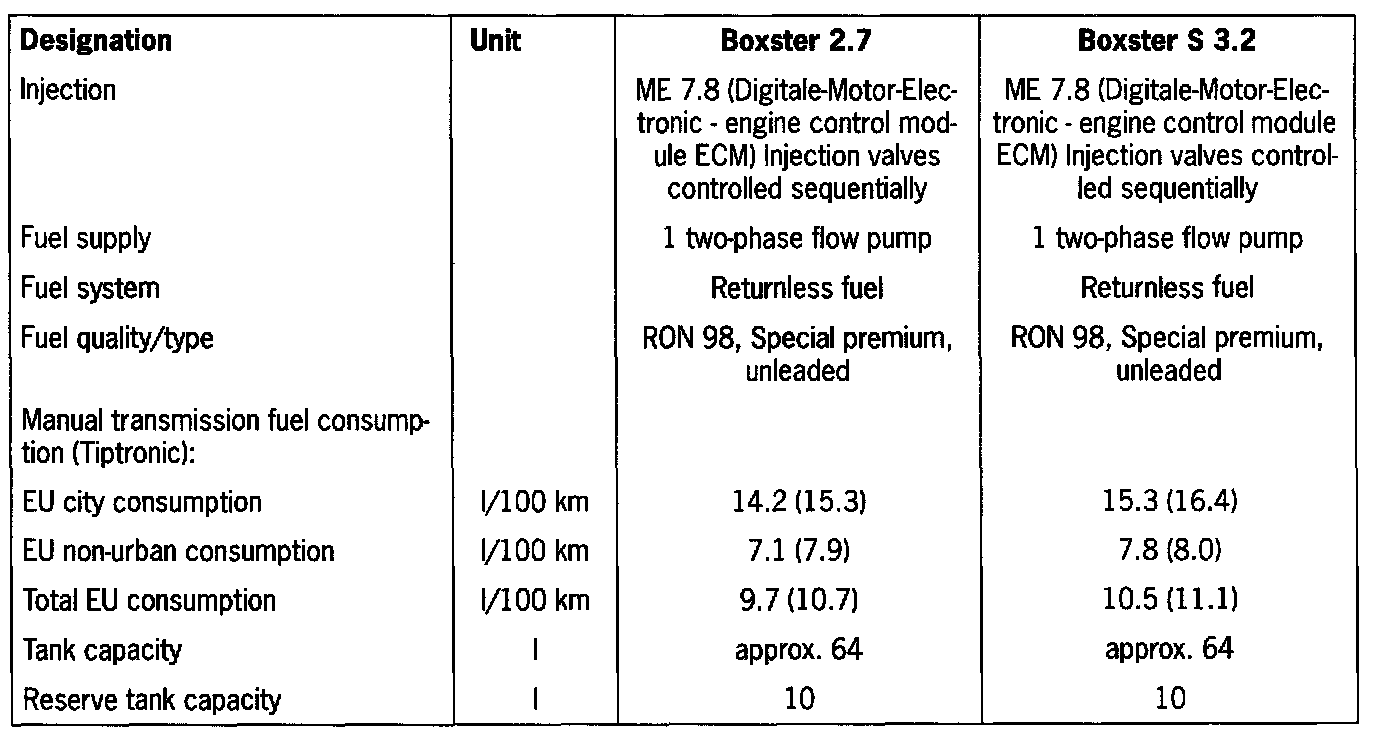

Fuel System







Intake System

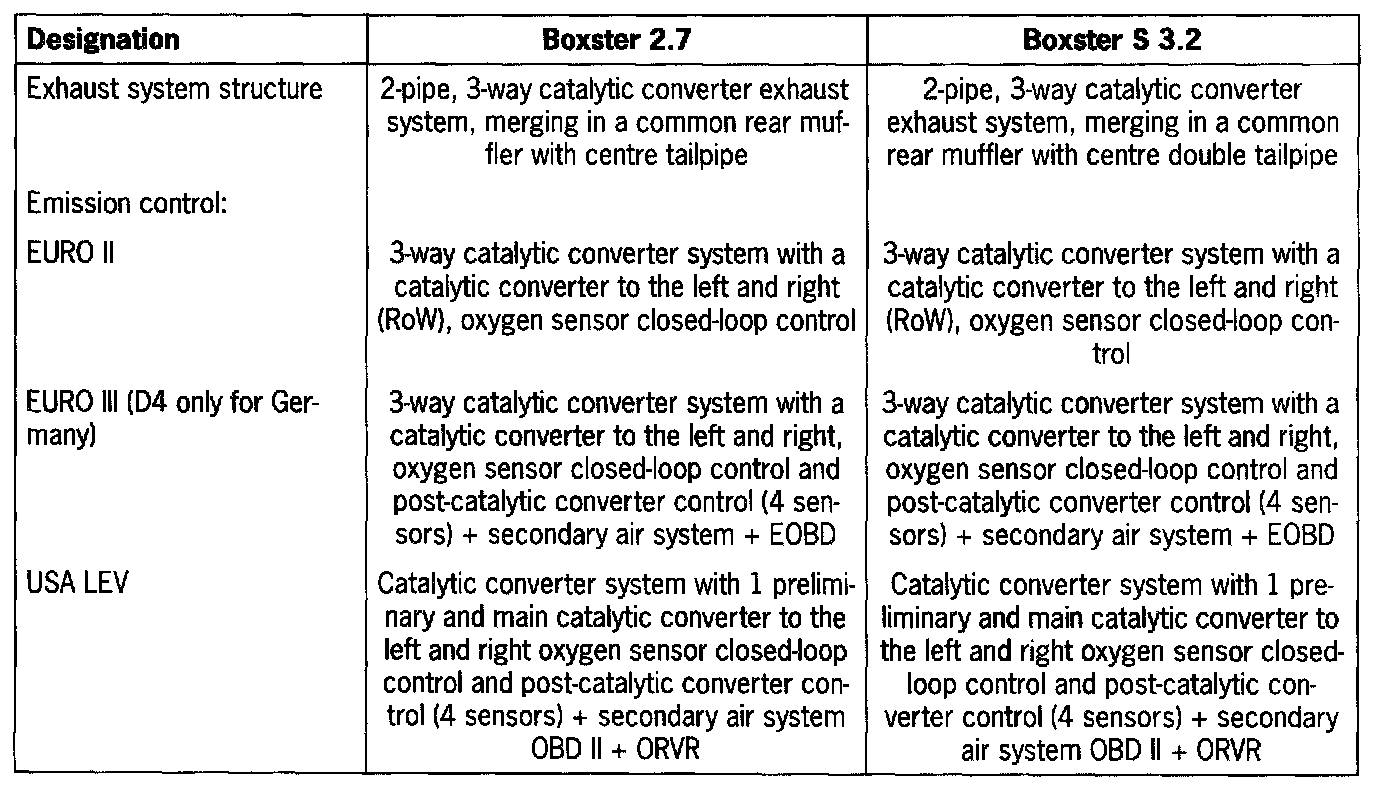

Exhaust System And Emission Control System







Electrical System

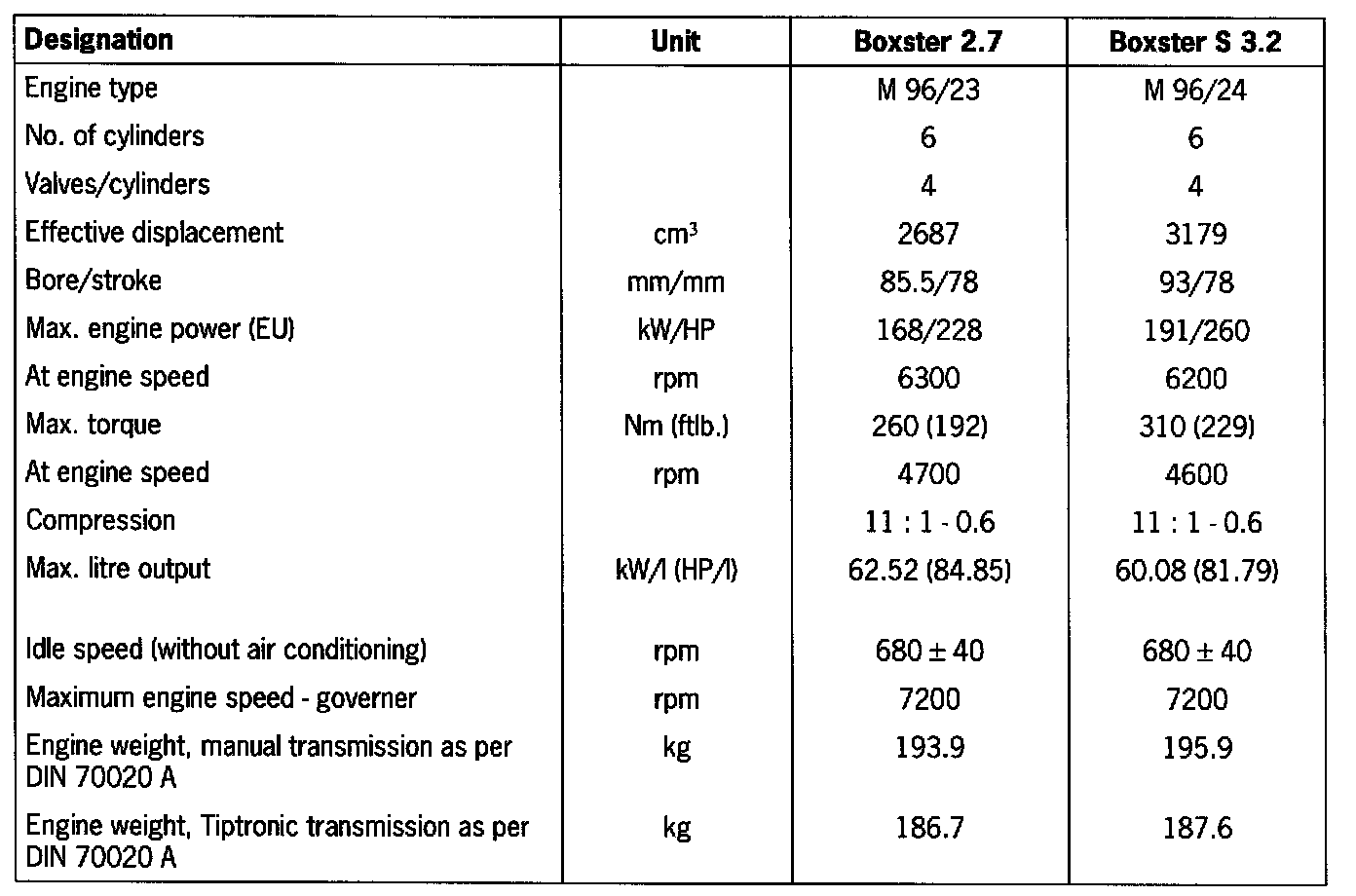

Engine Data

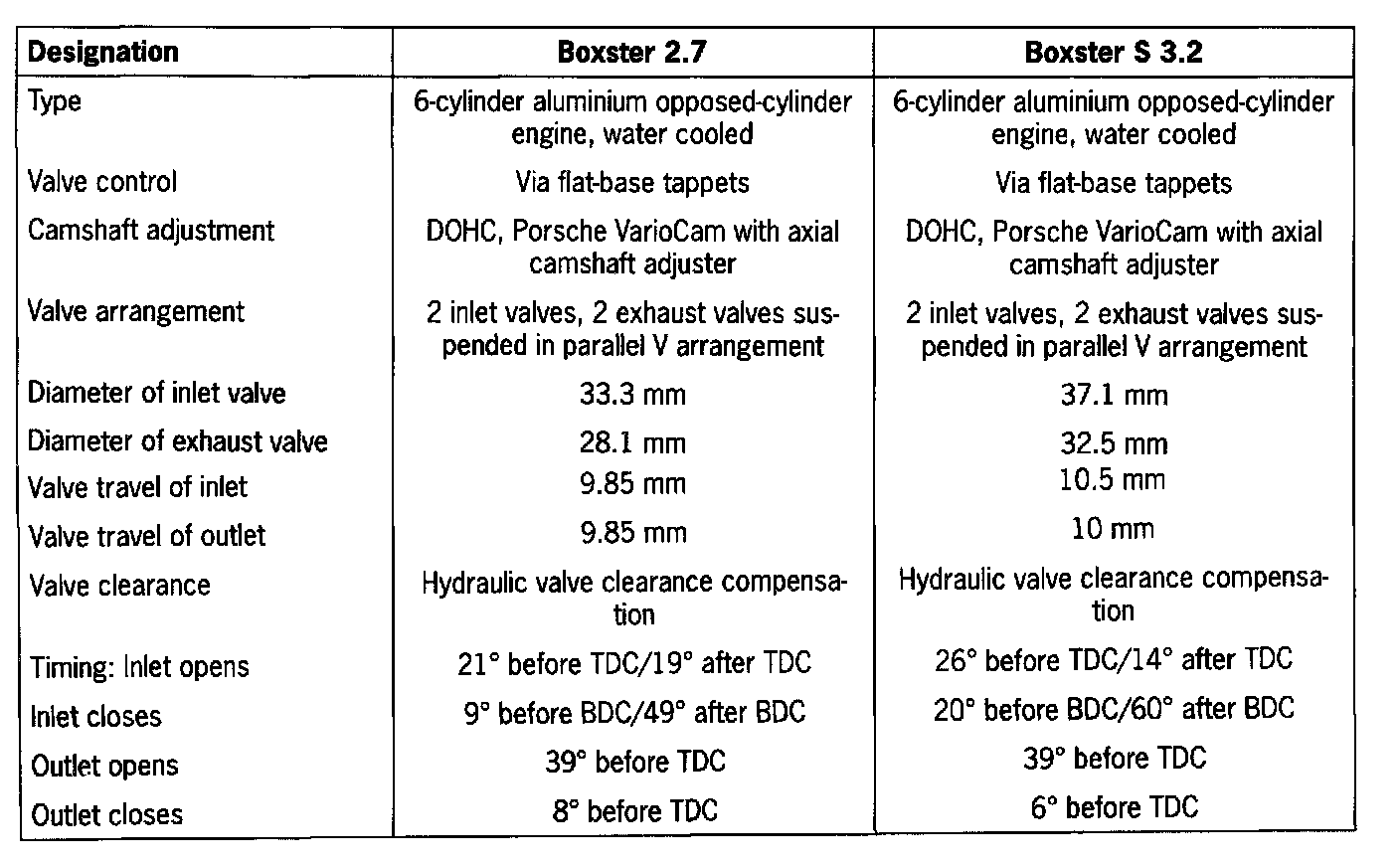

Engine Design







Engine Cooling







Engine Lubrication
