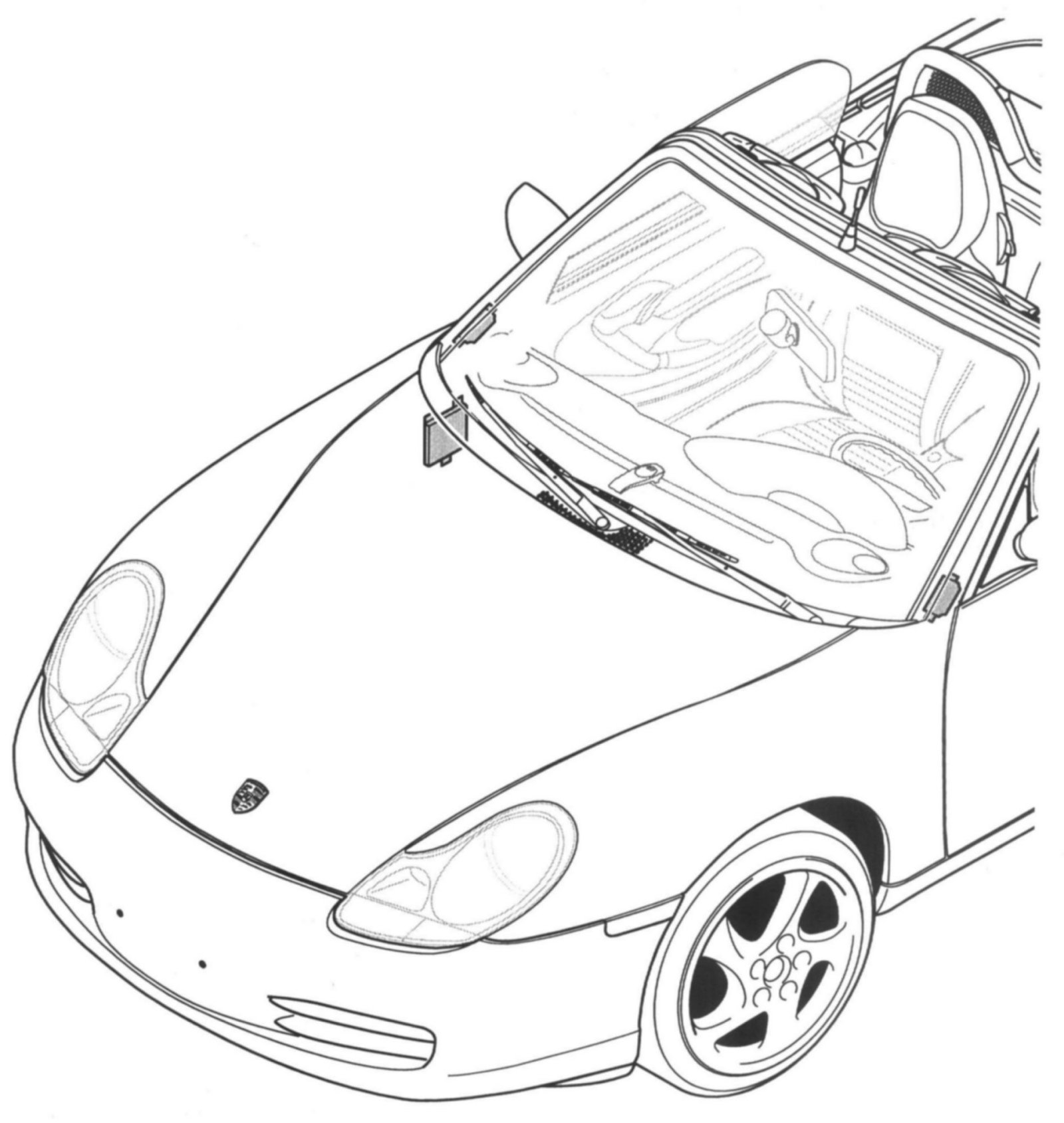

Antenna Control Module: Service and Repair

Removing And Installing Control Unit For The Antenna







Removing Control Unit For The Antenna
- Remove the right cover under the instrument panel.
- Remove the ignition key and switch off the radio.

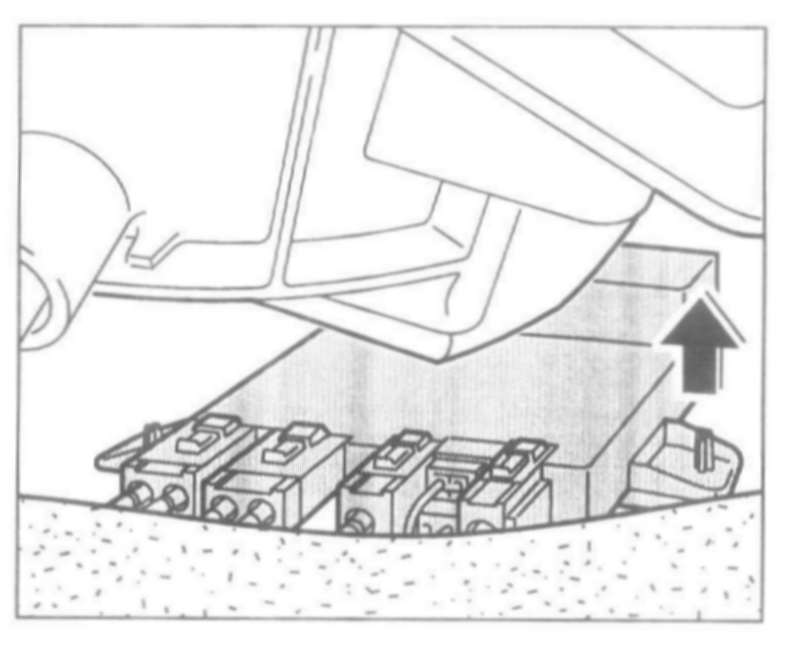

1. Lift out the control unit on the right side out of the clip and pull to the right out of the holder.

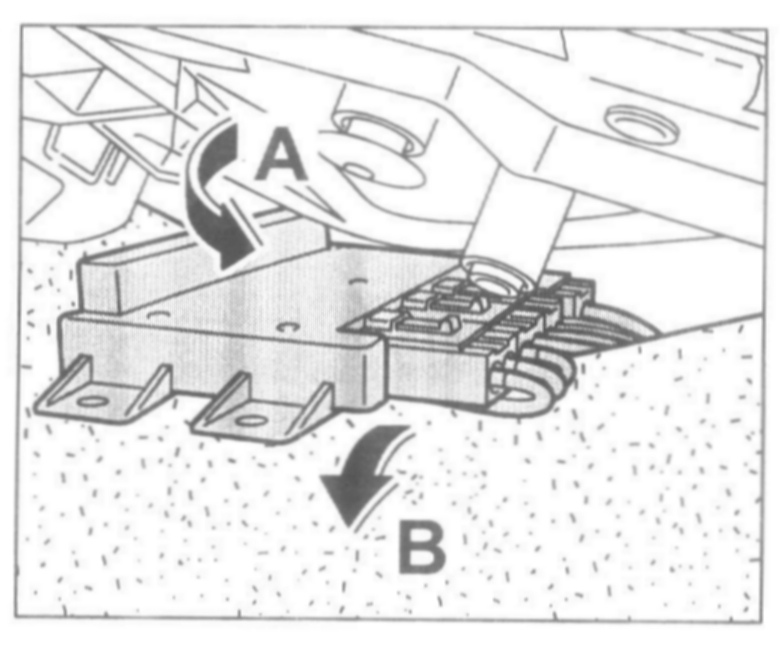

2. Swivel the control unit in the direction of the arrow -A- and carefully pull it over the interior carpet -B- - observe the wire length.

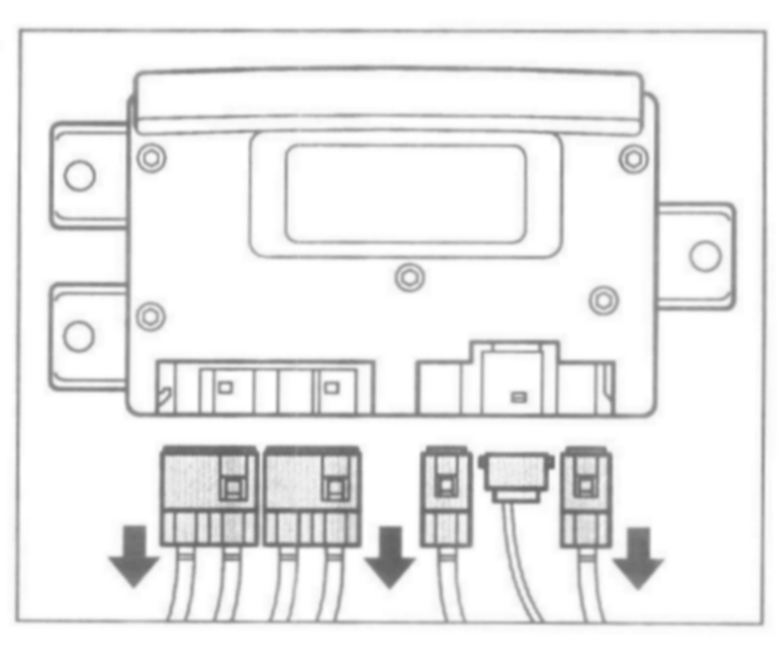

3. Disconnect the electrical connectors in turn.

Installing The Control Module For The Antenna

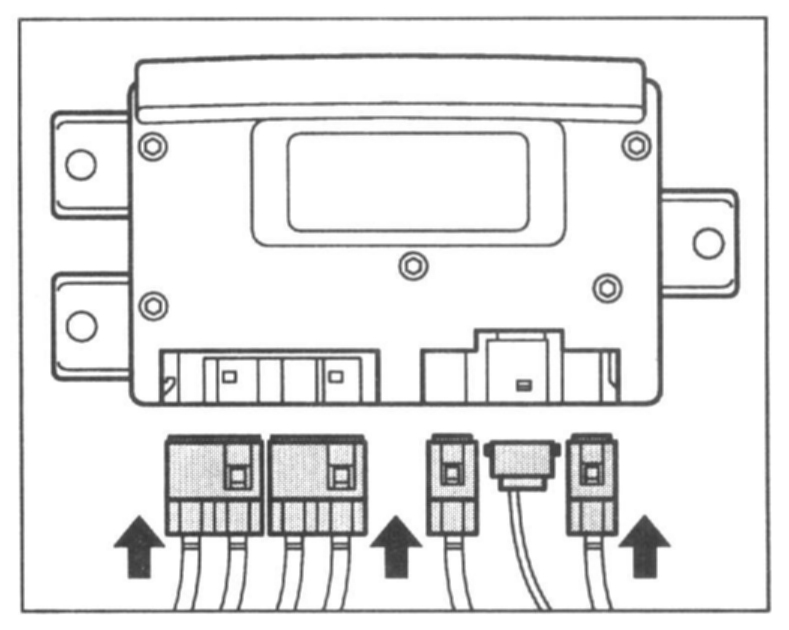

1. Connect the electrical connectors in turn.

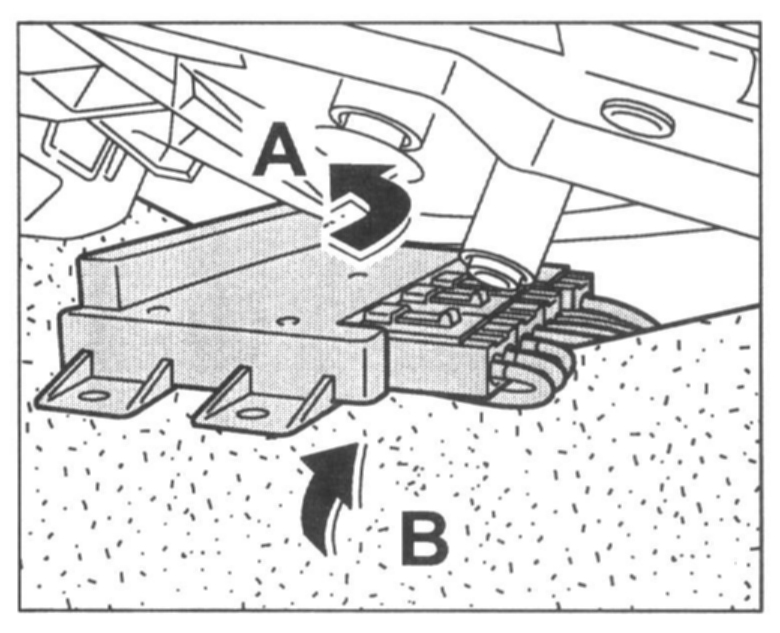

2. Push the control unit carefully over the interior carpet -B- and position it in the holder -A-.

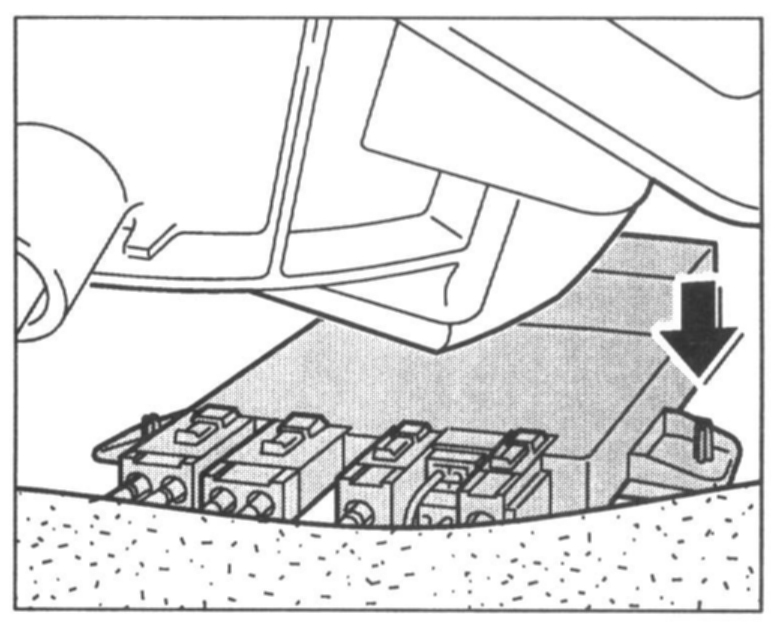

3. Fasten the control unit with the clip to the holder.

- Install the right trim under the instrument panel.
