Disassembling and Assembling Backrest Frame



Disassembling And Assembling Backrest Frame

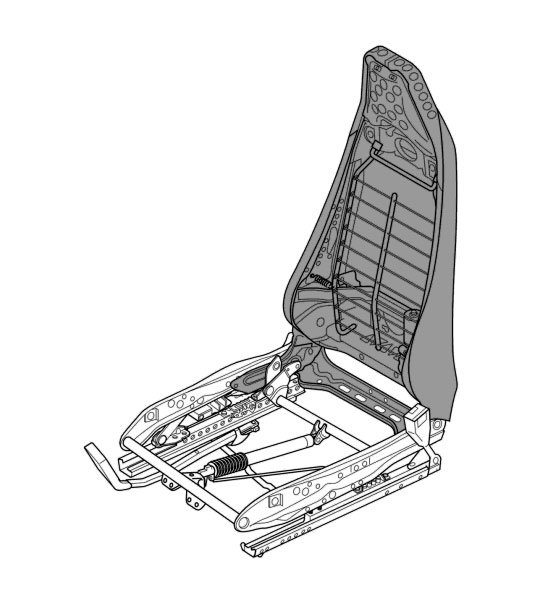

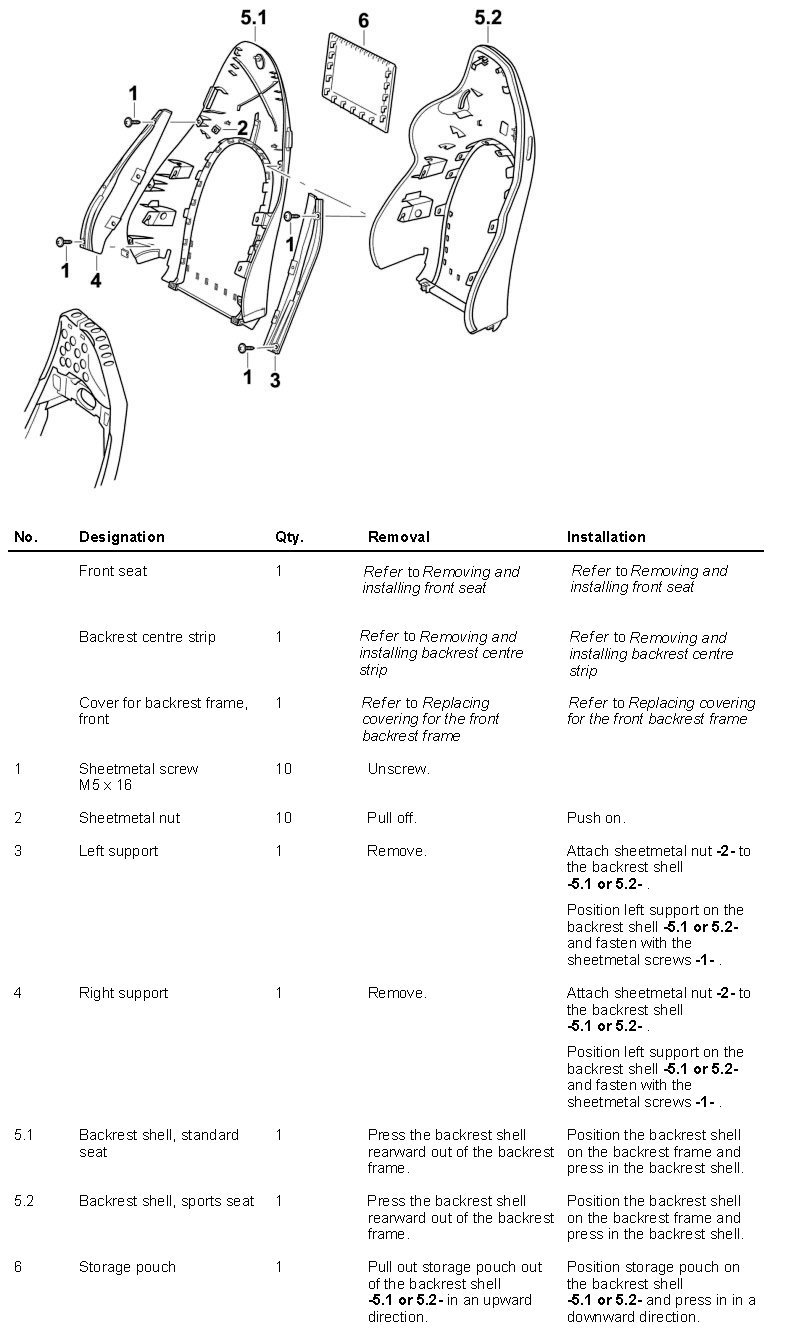

Removing and installing backrest shell

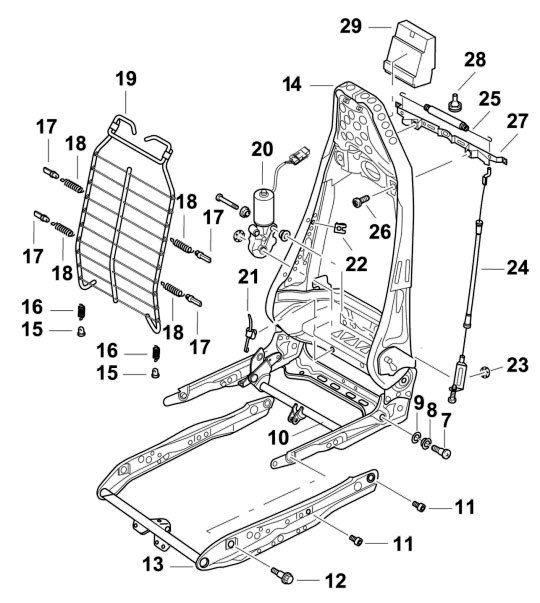

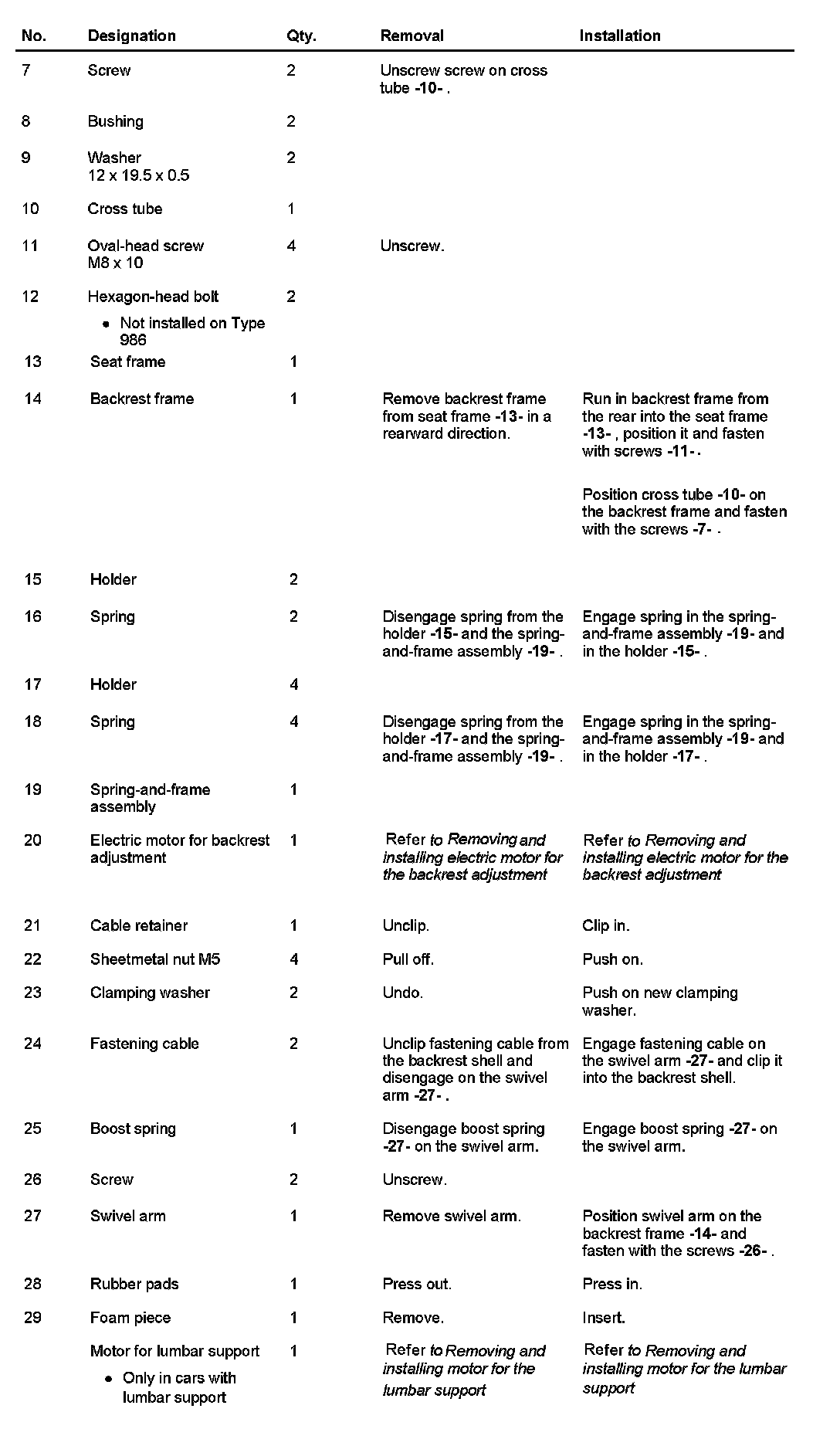

Disassembling and assembling backrest frame










Tightening torques
