Wind Screen: Service and Repair

Removing And Installing Windstop

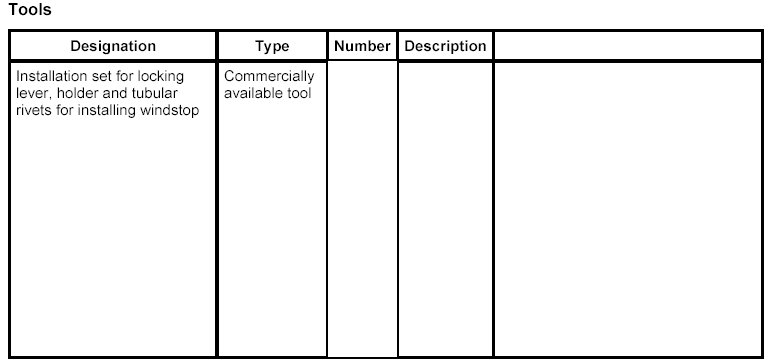

Tools













CAUTION: Danger of damage if windstop parts are not fitted correctly.
- Windstop parts must always be fitted or engaged correctly, especially when driving with the convertible-top open.

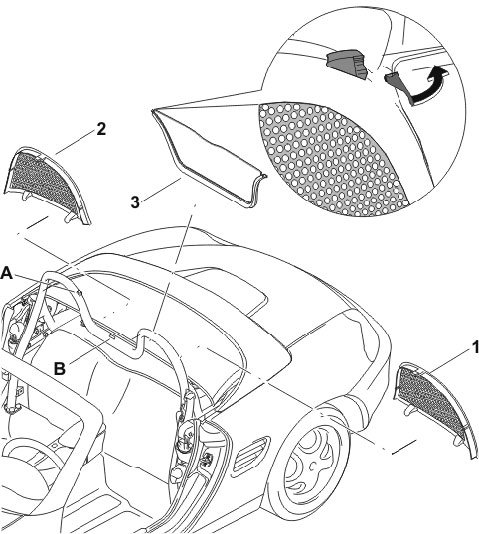

Installing locking bracket and holder

1. Installing locking bracket
1.1. Position the left or right locking bracket -A- on the roll-over bar and rivet in place with tubular rivets.

2. Installing holder.
2.1. Position the holder -B- on the roll-over bar and rivet in place with tubular rivets.

Tools and materials
