Component Arrangement

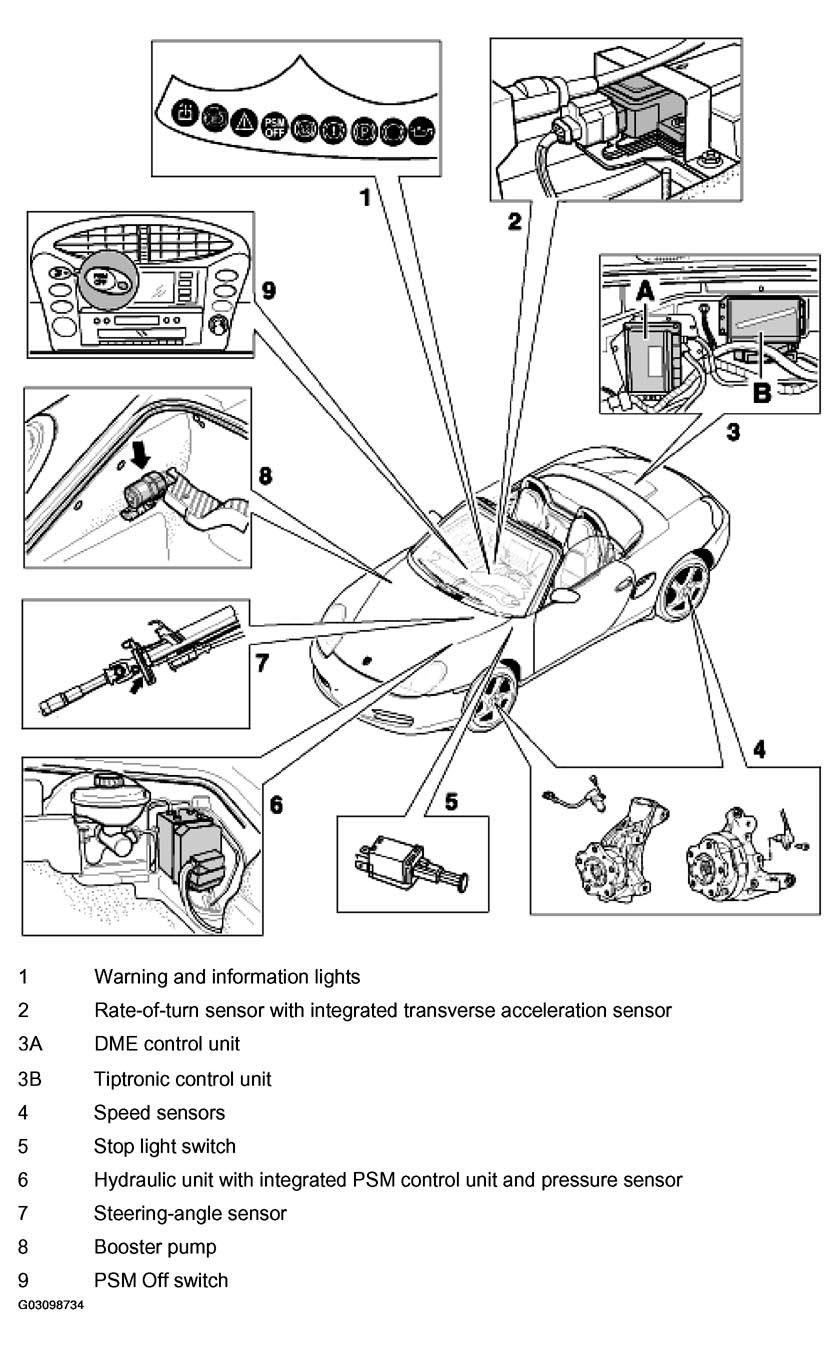

Fig 1: Identifying Component Arrangement
G03098734Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. Warning and information lights
  2. Rate-of-turn sensor with integrated transverse acceleration sensor
  3. DME control unit
  4. Tiptronic control unit
  5. Speed sensors
  6. Stop light switch
  7. Hydraulic unit with integrated PSM control unit and pressure sensor
  8. Steering-angle sensor
  9. Booster pump
  10. PSM Off switch
