Connector assignment, control module (ABS and ABS/TC)

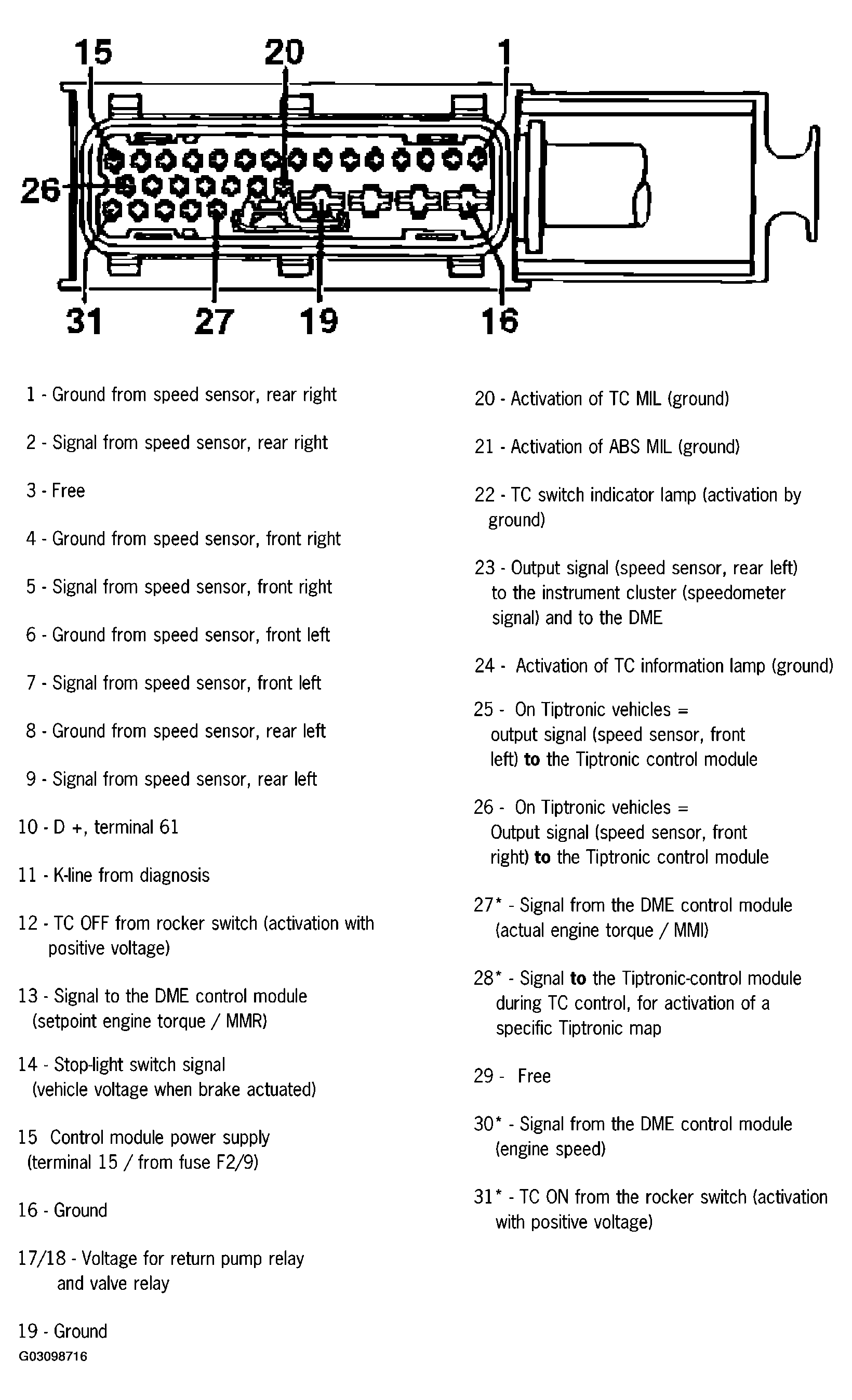

Fig 1: Identifying Connector Pin Assignments, Control Module (ABS And ABS/TC 5.3)
G03098716Courtesy of PORSCHE OF NORTH AMERICA, INC.

* Only on vehicles with Traction Control (TC)
