Air Flow Sensor - Additional Information (GROUP 2, NO. 1A/00)

Publication date: 2001-04-06
Reference number: GROUP 2, NO. 1A/00

AIR FLOW SENSOR - ADDITIONAL INFORMATION

TECHNICAL SERVICE BULLETIN

Reference Number(s): 1a/00, Date of Issue: April 6, 2001

PORSCHE:	MY 2000 (Y) Boxster 2.7, Boxster S
GROUP:	Engine Electronics

NOTE: This bulletin replcaes bulletin, Group 2, 1/00, dated Apeil 18, 2000.

Air Flow Sensor - Additional Information

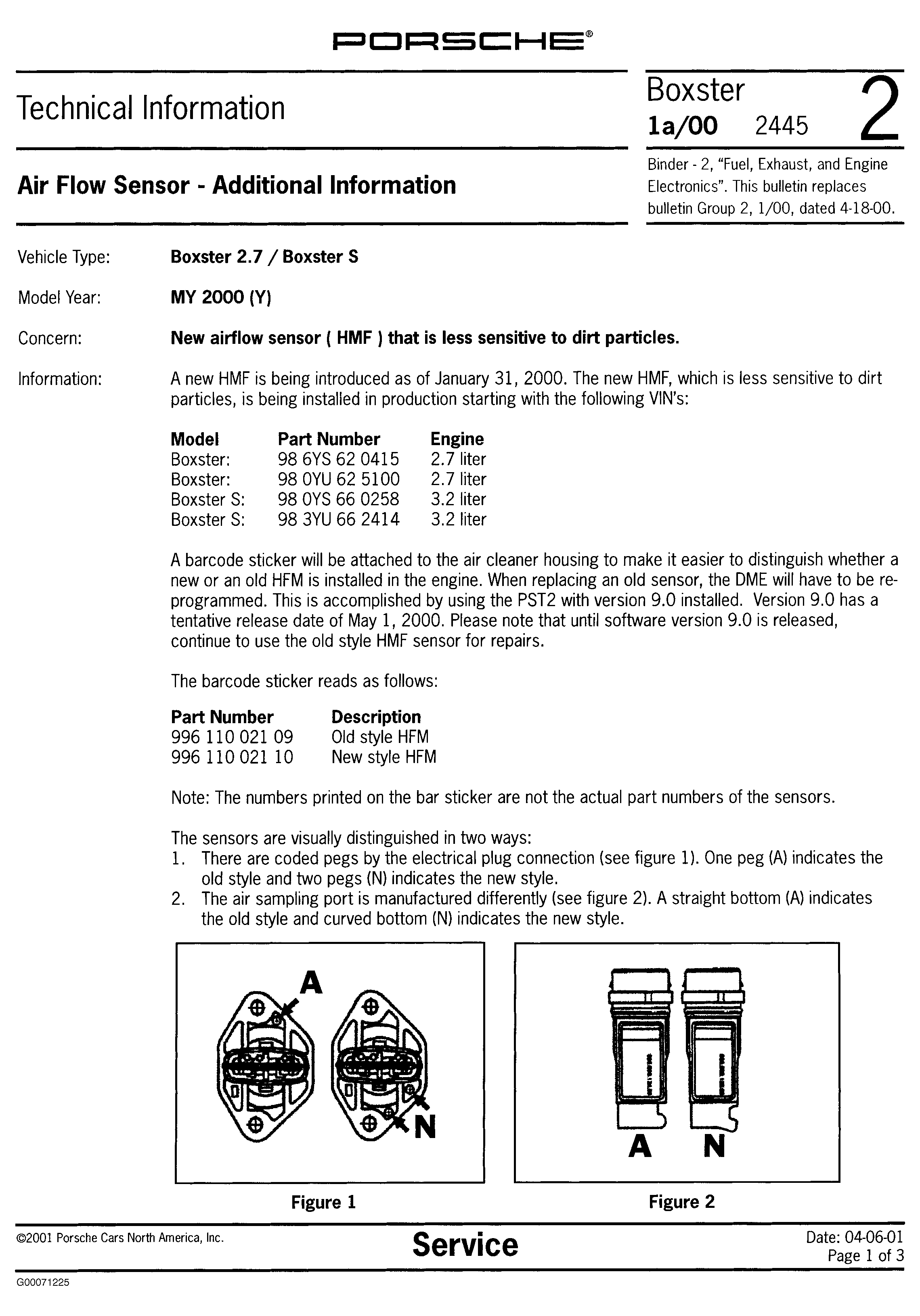

Fig 1: Page 1 of Bulletin

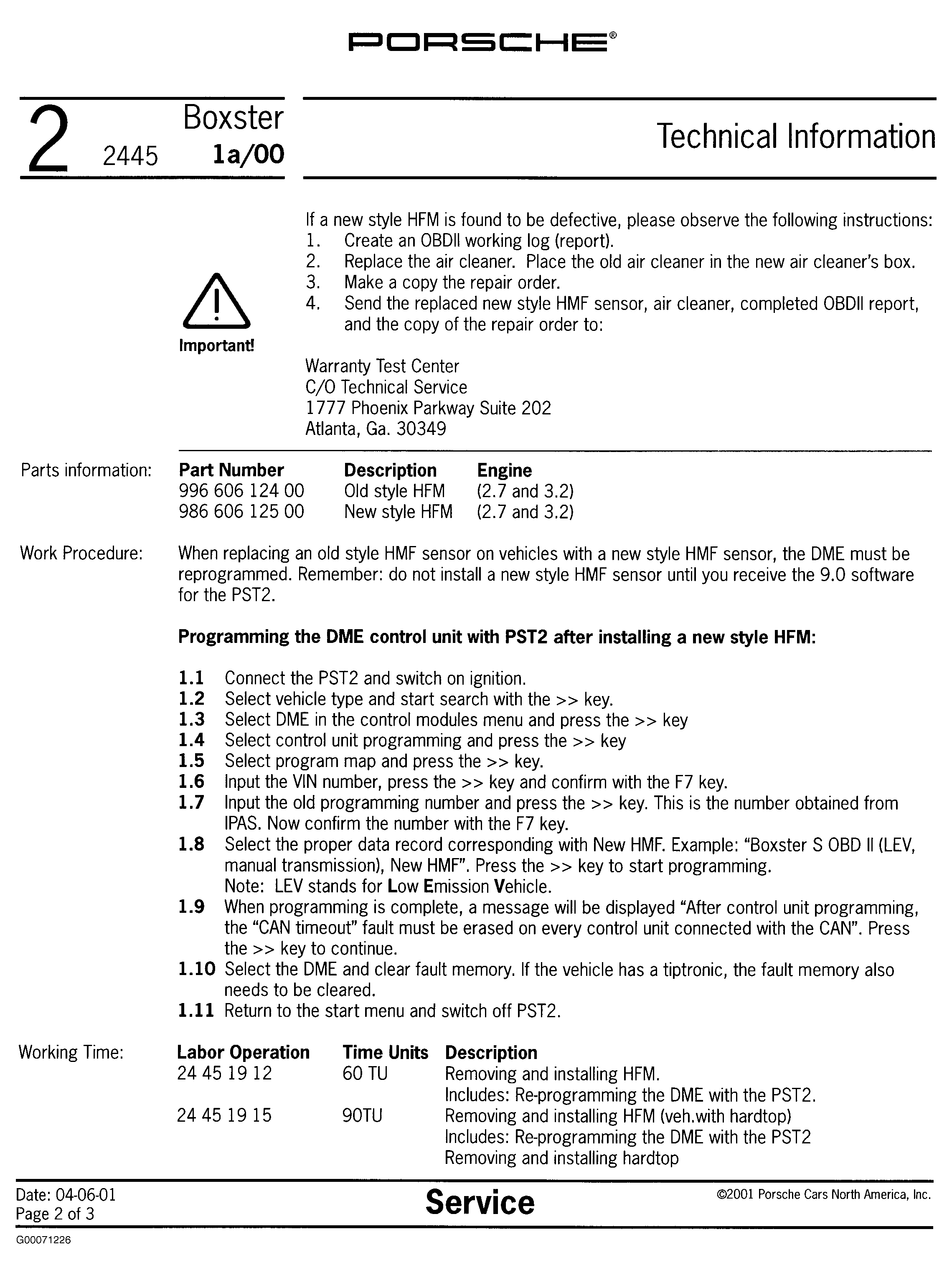

Fig 2: Page 2 of Bulletin

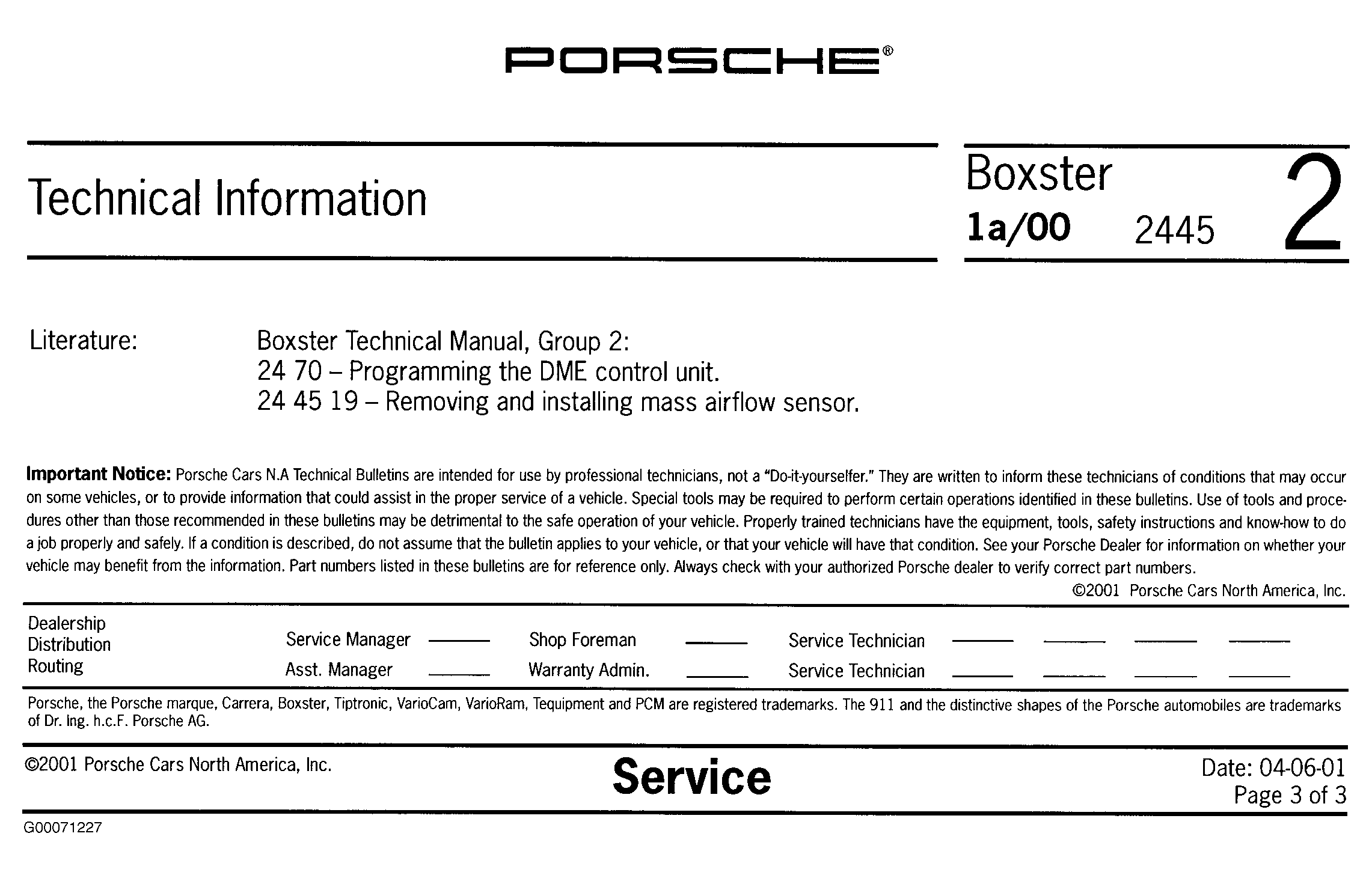

Fig 3: Page 3 of Bulletin
