Removing And Installing Shift Console: Removal

  1. Remove center console. See REMOVING AND INSTALLING CENTER CONSOLE .
  2. Shift transmission to neutral and fix shift lever with special tool 9619.

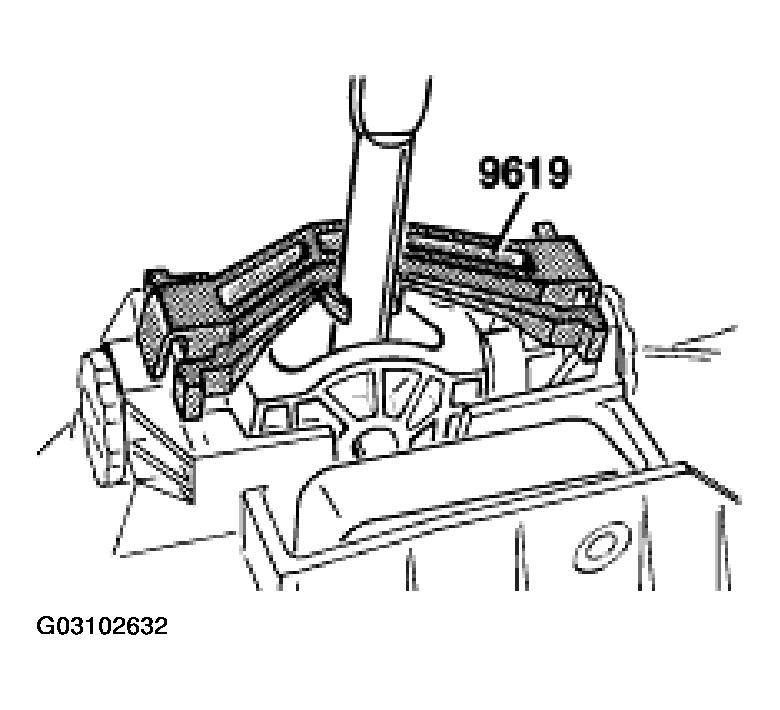

    Fig 1: Shifting Transmission To Neutral And Fixing Shift Leverr With Special Tool 9619
    G03102632Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Remove shift console cover.
  4. Disengage the selector and shift cables on the shift console. To do this, slide the locking sleeve forward as far as it will go and turn it clockwise to removal position.

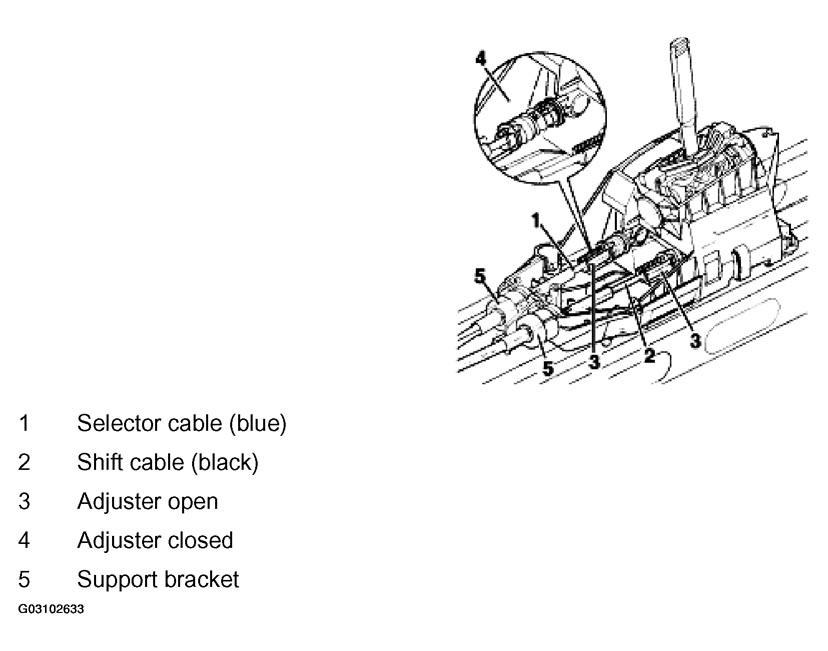

    Fig 2: Disengaging Selector And Shift Cables On Shift Console
    G03102633Courtesy of PORSCHE OF NORTH AMERICA, INC.
