Removing And Installing Closure Cap For Selector Force Mechanism: Removal
- Remove transmission, see REMOVING AND INSTALLING TRANSMISSION, BOXSTER S
.
- Make sure that transmission is in neutral.

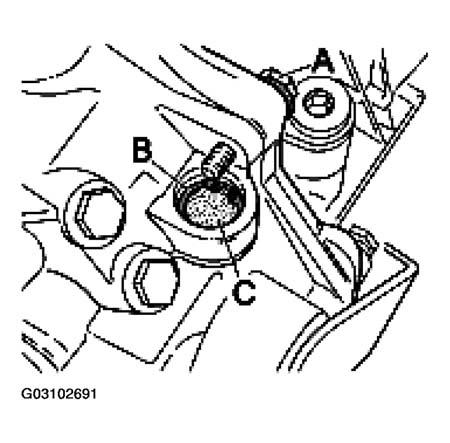

- Unscrew fastening screw for gear housing A. See Fig 1
.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
- Remove snap ring B using pliers. See Fig 2
.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
- Drill a 3.5-mm hole in the center of the closure cap (coat the drill bit with viscous grease so that the drilling chips do not fall into the hole).
- Screw in a 4.8 x 25 sheetmetal screw with a large washer.

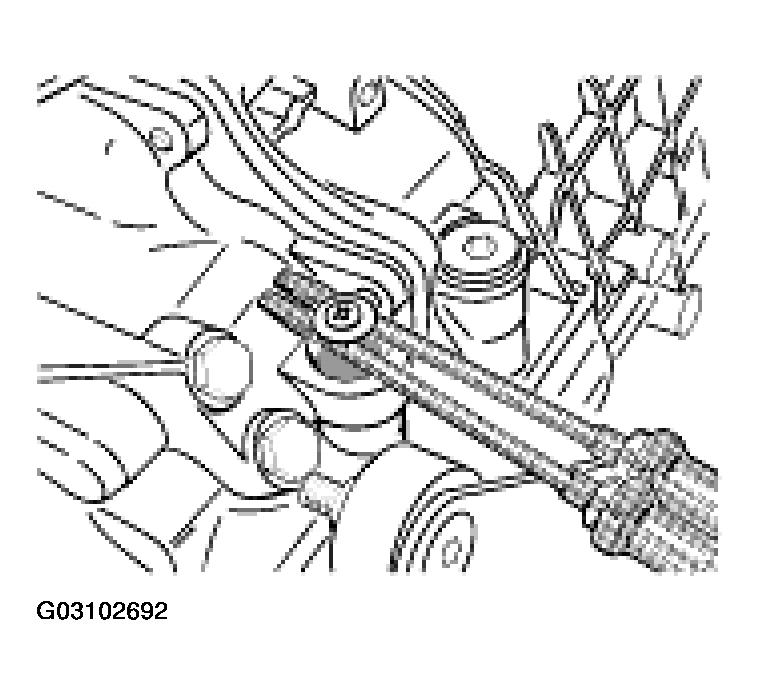

- Lever out the closure cap with two screwdrivers.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
