Removing And Installing Sealing Ring For Short Flanged Shaft: Installation

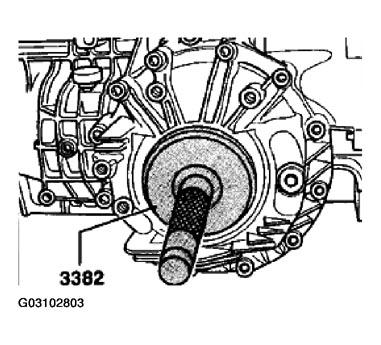

- Thinly coat sealing lip and circumference of sealing ring with Vaseline and insert sealing ring with special tool 3382 up to the stop.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE:
- The sealing ring must fit in the housing at the same depth all round.
- Check transmission oil in final drive and top up if necessary.
