Fuel Lines

Operate unlocking button(s) (press) and simultaneously separate the pipelines by pulling them apart see Fig 1 .

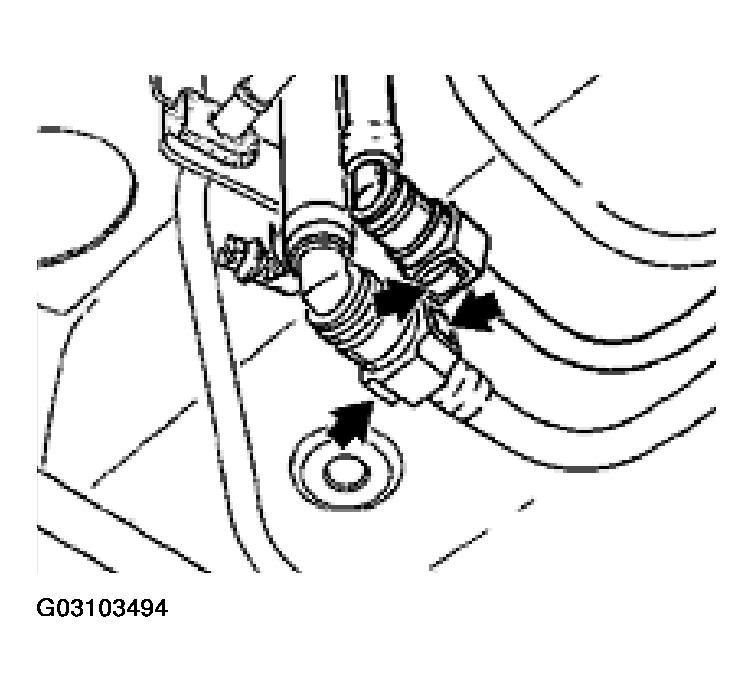

Fig 1: Separating Fuel Line Connections

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Join the connection by plugging together in a straight line. The plug (the plug-in part) must audibly engage in the plug-in coupling. Then pull the connection slightly to check whether it was locked properly.
