Tightening torques

TIGHTENING TORQUES - ROLL-OVER BAR

Location Illustration Thread Tightening torque

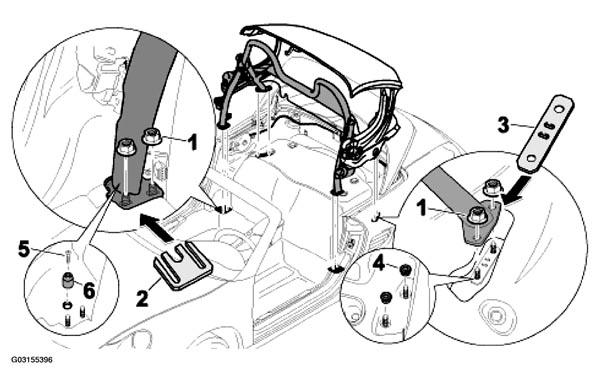

Roll-over bar fastening screws on body -1-  . See Figure . M8 23 +/- 2 Nm (17 ftlb.)
