Disassembling and assembling air guide cowl

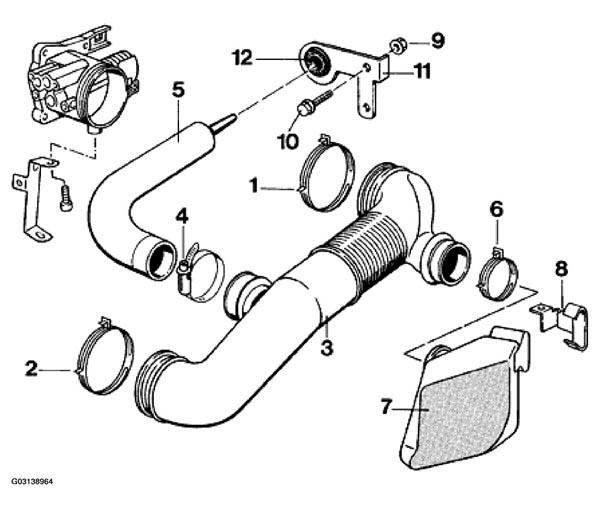

AIR GUIDE COWL REMOVING & INSTALLING PROCEDURE
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Hose clamp 86 x 12 | 1 | ||
| 2 | Hose clamp 86 x 12 | 1 | ||
| 3 | Intake cowl | 1 | ||
| 4 | Hose clamp | 1 | Tighten only after intake cowl has been fastened | |
| 5 | Resonance tube (only on vehicles with Tiptronic) | 1 | ||
| 6 | Hose clamp 53 x 12 | 1 | ||
| 7 | Silencer with plastic damping film | 1 | ||
| 8 | Holder | 1 | ||
| 9 | M6 hexagon nut | 1 | ||
| 10 | Combination screw M6 x 15 (micro-en caps.) | 1 | ||
| 11 | Holder for resonance tube | 1 | ||
| 12 | Rubber sleeve |
