Removing and installing rate-of-turn sensor: Installation

  1. Install in reverse order.
  2. After installing the rate-of-turn sensor, read out the PSM fault memory with the Porsche System Tester 2 and erase. Carry out a static test. Then start the engine. The PSM-related lights in the instrument cluster must go out when the engine is running. Read out the PSM fault memory again. There must not be any stored faults.

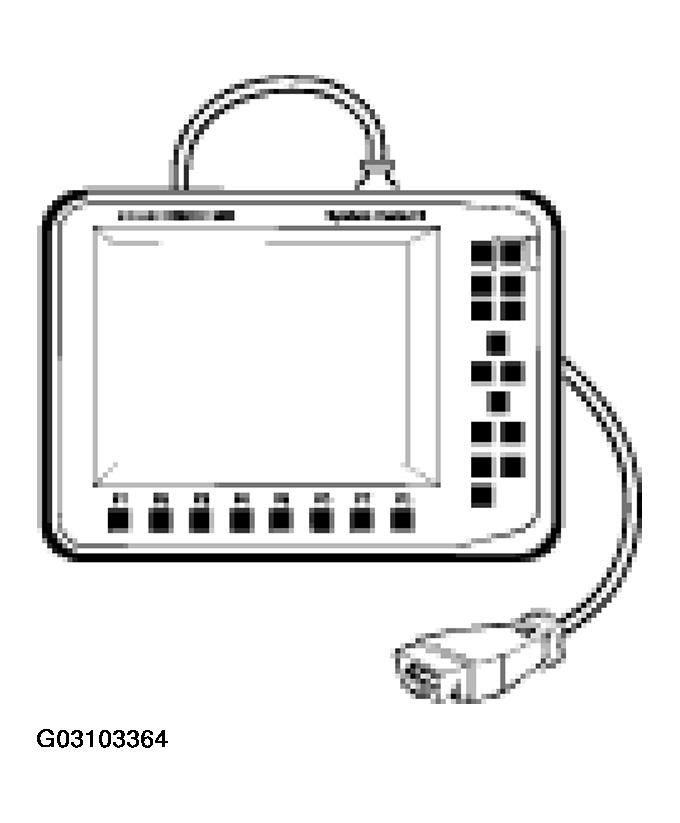

Fig 1: Identifying Porsche System Tester 2
G03103364Courtesy of PORSCHE OF NORTH AMERICA, INC.
