Removing Rain Sensor

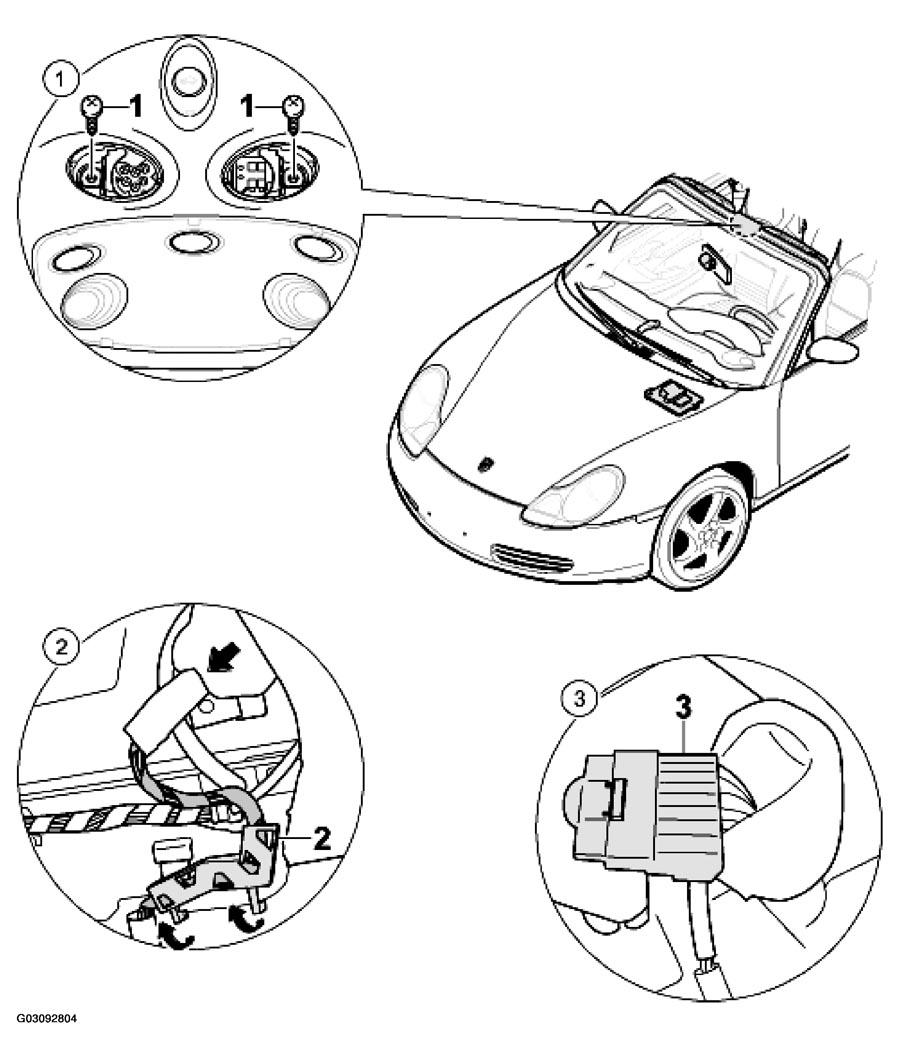

INFRA-RED INTERIOR SENSOR REMOVAL SEQUENCE
| No. | Procedure | Instructions | ||
|---|---|---|---|---|
| 1 | Removing cover of infra-red interior sensor | Remove both covers and unscrew both screws -1- (1) . | ||
| 2 | Line routing | Disengage holder -2-arrow- (1) . | ||
| 3 | Disconnecting the plug connection | Press plugs -3-arrow- (1) . | ||
|
||||
Limited functionality of the rain sensor when the following information points are not observed:
- An adhesive pad must be used when reinstalling the rain sensor.
- When assembling the adhesive pad, air should not be trapped between the windscreen and the adhesive pad or between the adhesive pad and the rain sensor.
- When installing the adhesive pad, a temperature of approx 20°C for the windscreen, the rain sensor and the adhesive pad must be ensured. Carefully heat the windscreen with a hot-air gun for example.
- The sensor on the sticking surface must not be touched by fingers.
- If the sensor is new, remove the protection cap before the sensor is stuck onto the windscreen.
- When sticking a new sensor, make sure that no air pockets are caught between the gel and the windscreen. Air pockets could impair the function of the sensor.
- Sensor, orientation light, wires and wiring ducts are spare parts.
If the old rain sensor is installed: begin with the instructions RAIN SENSOR REMOVAL SEQUENCE .

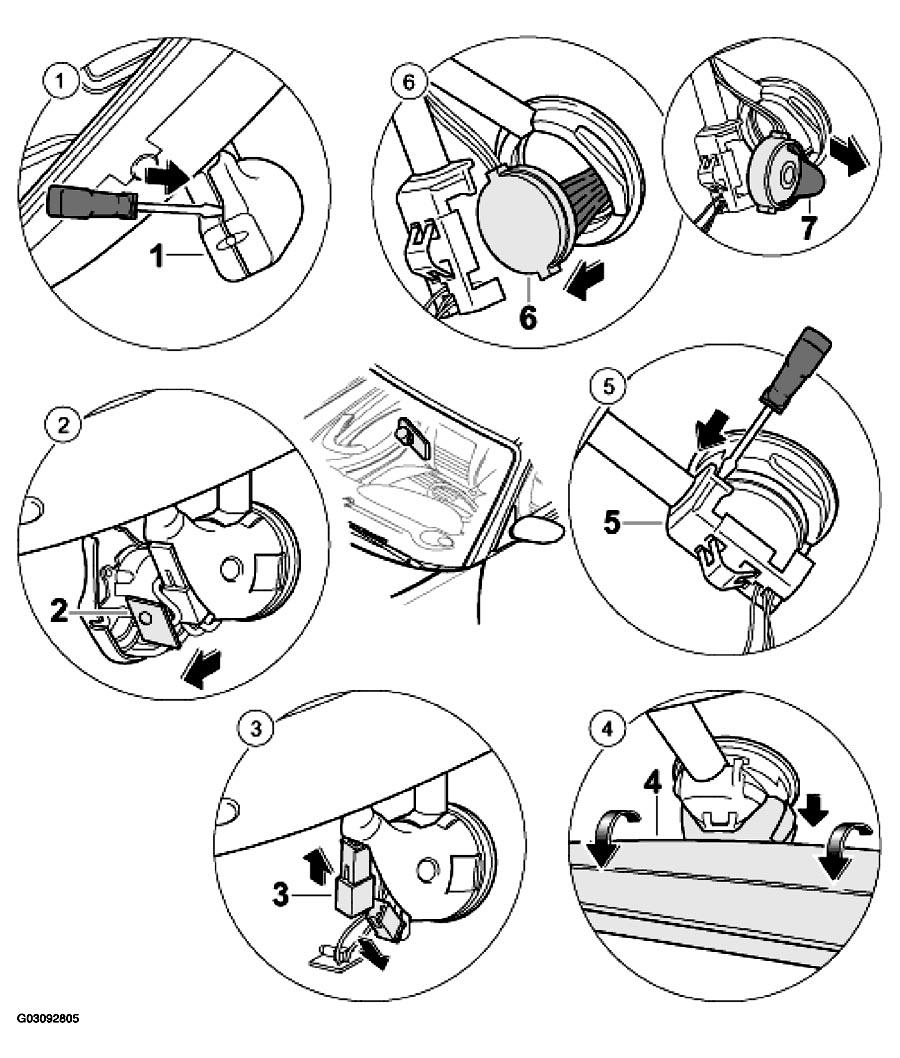

RAIN SENSOR REMOVAL SEQUENCE
| No. | Procedure | Instructions | ||
|---|---|---|---|---|
| 1 | Removing cover of rain sensor | Unclip the cover -1- (1) | ||
| 2 | Removing orientation light Remove | orientation light -2- (1) | ||
| 3 | Disconnecting the plug connection | Carefully pull out the plug connection -3- (1) | ||
| 4 | Removing mirror | Fold mirror -4- (1) | ||
| 5 | Unclipping rain sensor holder | Carefully unclip holder -5- (1) | ||
| 6 | Undoing rain sensor from the windscreen | Remove rain sensor -6- (1) | ||
| 7 | Pull of adhesive pad | If the rain sensor is reinstalled, then slowly pull the adhesive pad -7- (1) | ||
|
||||
